EM TEST RDS 200N - Functions; Sine Wave

EM TEST VDS 200 Series
Manual for Operation V 5.19 24 / 57
3.3.4.
Functions
3.3.4.1.

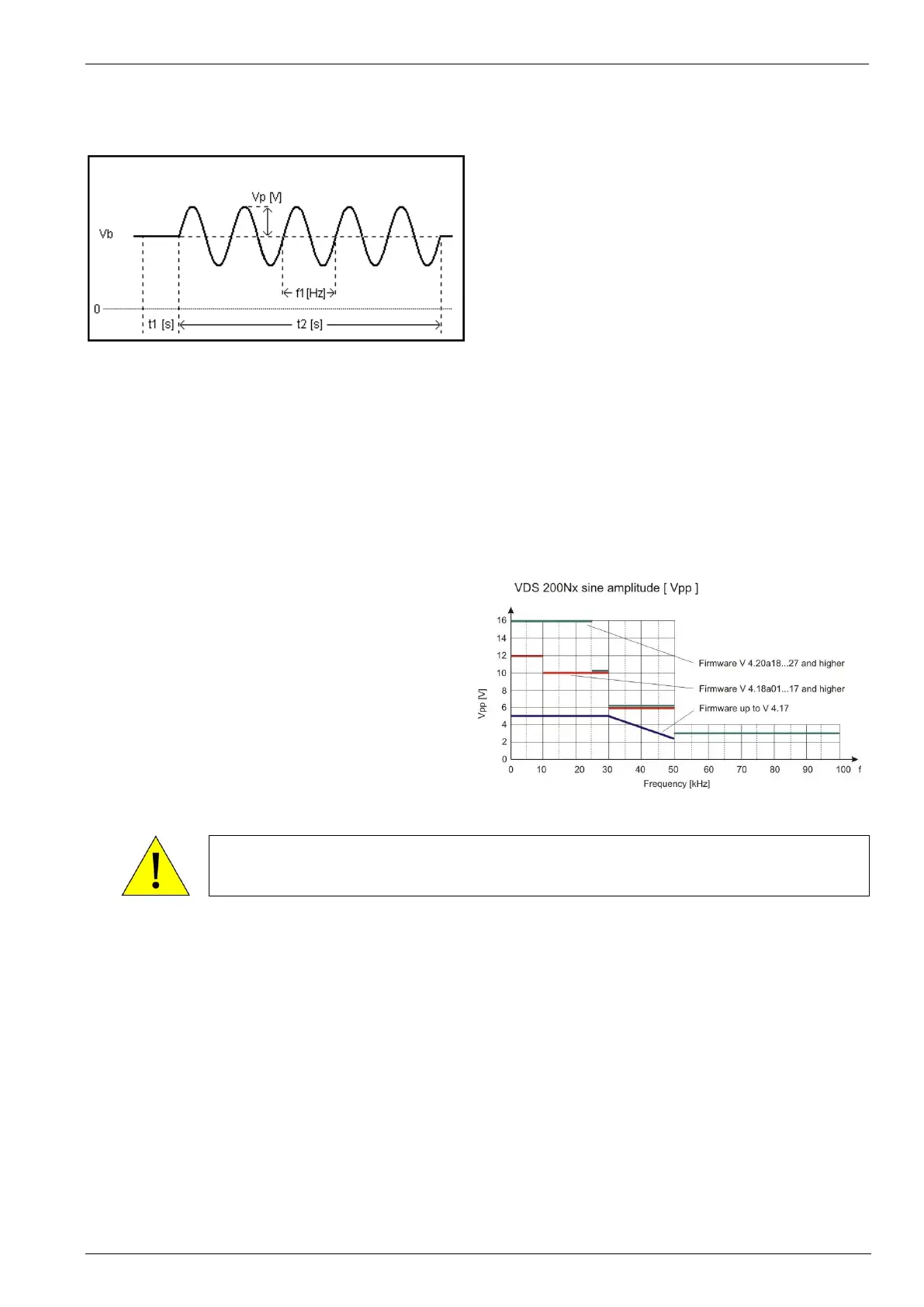

Sine wave
Limitations
Vn + Vp <= 30.0V (60.0V)
Vn - Vp = 0.0V
For frequency setting see the following limitations
max 6Vpp up to the full 50kHz range
max 16Vpp up to 25kHz
Parameters:
Vb
0.0V
-
30.0V (60.0V)
Vp
0.25V
-
6.0V
t1
0.1s
-
99.9s
f1
0.001kHz
-
50.00kHz
f< 100Hz  1.2Hz
t2
1.0s
-
999.9s
n
1
-
30’000 / endl.
I
1.0A
-
15//30//50//100A
Frequency behavior
Firmware from version 4.20a18...25 manufactured. 2007 or later
16Vpp up to 25kHz
10Vpp up to 30kHz
6Vpp up to 50kHz
Firmware version 4.18a01...17 and higher
12Vpp up to 10kHz
10Vpp up to 30kHz
6Vpp up to 50kHz
Firmware up to version 4.17
5Vpp up to 30kHz
>30kHz linear decrease to 3.5V at 50kHz (see diagram)
For Frequency >50kHz to 100kHz the VDS output voltage must be limited to max. 3Vpp.
Therefore the analogue input signal must be limited to max. 0.7Vpp !
