Technical data RDS 200N
Output
Voltage for RDS 200
U = 0.0V - 16V ± 10%
Current
I = 0.0A – 10A ± 10%
Input/output
Test supply + / - output
Safety laboratory plugs at front and rear panel
Analog control input
0.0 - 10V / 10k / DC - 5kHz 3dB
Bandwidth
Up to 5kHz with 8Vpp
Sense
Plug on the rear side
Ripple
Max. 0.85V rms
Interface
Remote control
To connect external arbitrary generators or
analog out of PFS 200N
General data

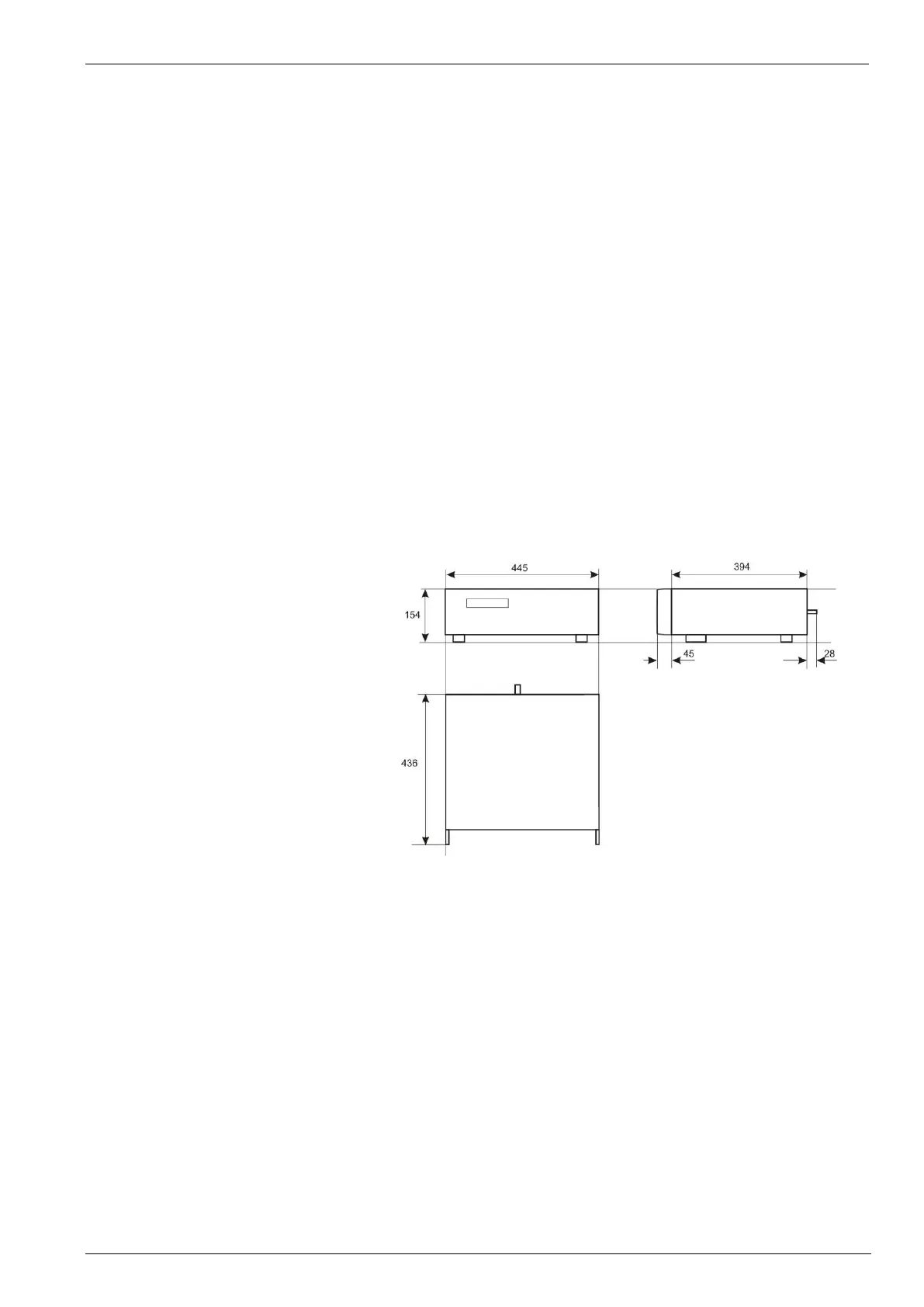

Dimensions
19“ / 3HU, 448 x 154 x 394mm
Weight
12.3kg
Supply voltage
115 or 230V +10/-15%
Fuses
T4A 5 x 20mm
8.2.4.
Application
1. DC source
For voltage dip testing as per
Chrysler PF 9326
Ford ES-XW7T for CI 260
2. Arbitrary wave
For power cycling as per
Ford EMC-CS-2009
Ford ES-XW7T for CI 230
