EM TEST VDS 200 Series
Manual for Operation V 5.19 46 / 57

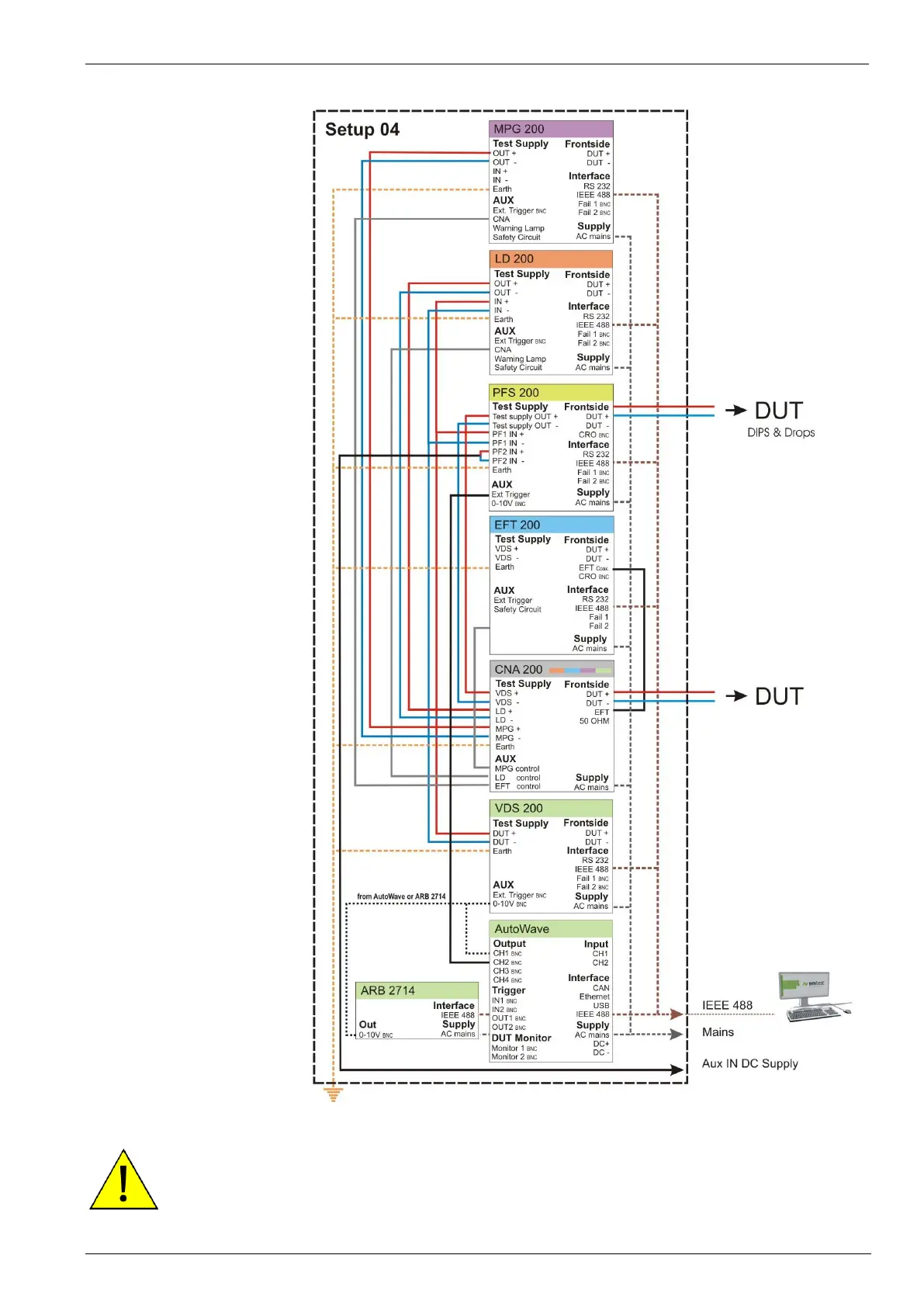

Setup example with:
AutoWave (former ARB2714)
MPG 200
VDS 200Nx
LD 200
EFT 200
CNA 200
Note : Do never connect The PFS200N output 0-10V in parallel with any Autowave output. In this
case the controlled DC source will deliver a wrong output signal. It is not allowed to
connect two output sources in parallel.
