EM TEST VDS 200 Series
Manual for Operation V 5.19 6 / 57
Special models
Special models have the index VDS200N200.x. The difference to standard models is the voltage and current
ranges. The operation is the same as by the standard VDS equipment’s. The maximum overcurrent trips at the
rated current.
Model voltage
current Inrush
Sinusfunction
f max
VDS 200N100.1 80V
I. = 0A- 100A ± 10% 150A 500ms
VDS 200N100.3 30V
I. = 0A- 100A ± 10% 150A 500ms
VDS 200N100.4 60V
I. = 0A- 100A ± 10% 150A 500ms
Overvoltage protection
(selectable 20, 30, 40 and 60V)
VDS 200N100.5 60V
I. = 0A- 100A ± 10% 150A 500ms
Extra fast slope
VDS 200N150.1 60V
I. = 0A- 150A ± 10% 500A 200ms
VDS 200N200.1 60V
I = 0A – 200A ± 10% 450A 400ms
750A 200ms
1000A 100ms
30kHz
VDS 200N200.2 30V
I = 0A – 200A ± 10% 2000A 500ms
1Hz – 20kHz 16Vpp
20kHz – 30kHz 10Vpp
30kHz – 50kHz 6Vpp
VDS 200N200.3 32V
I = 0A – 200A ± 10% 250A 500ms
VDS 200N200.4 30V
I = 0A – 200A ± 10% 1000A 500ms

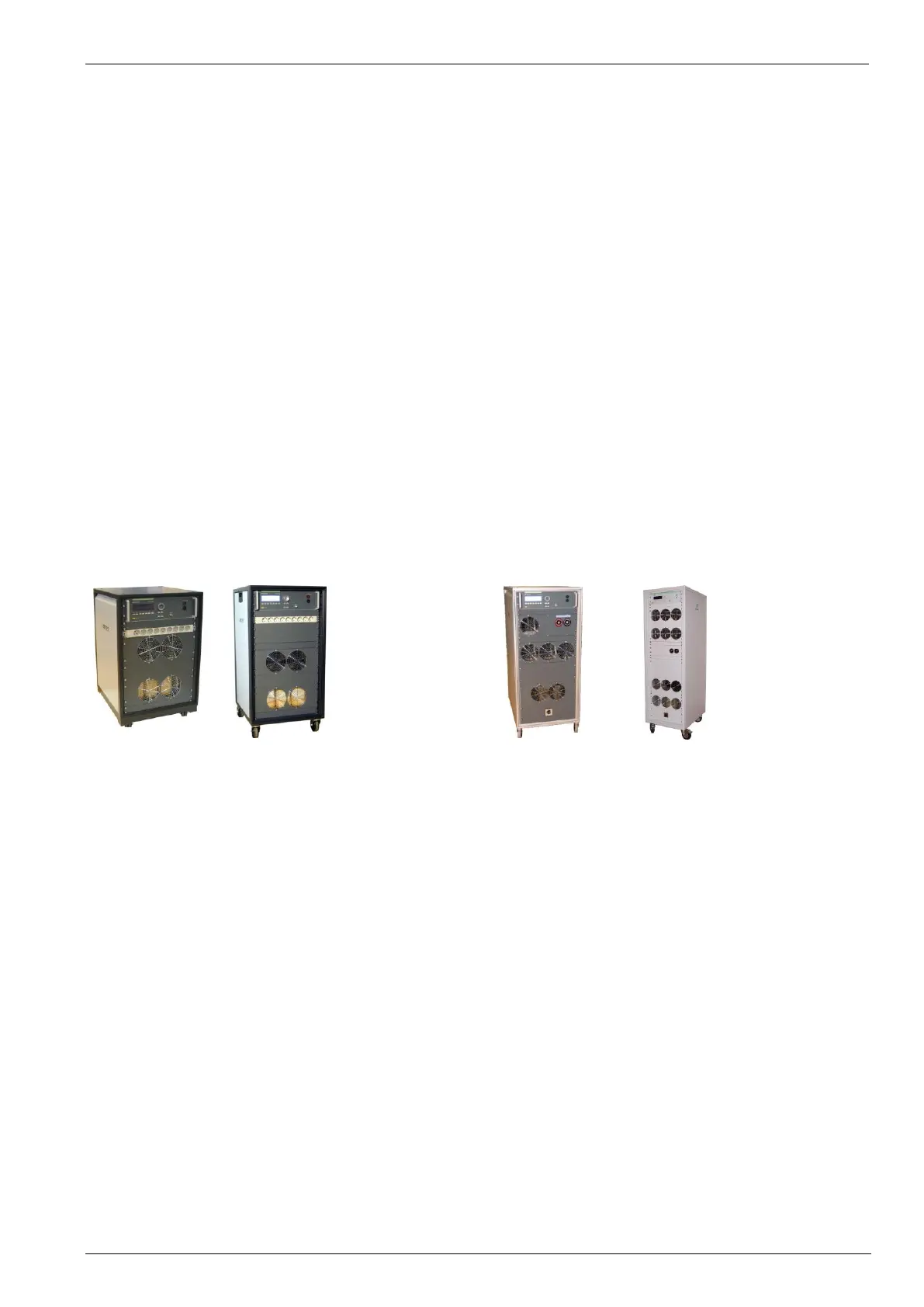

Up VDS 200B5 S1
VDS200N100.3
VDS 200N100.4
VDS 200N200.3
VDS 200N200.4
