EM TEST VDS 200 Series

Manual for Operation V 5.19 11 / 57

2.3.

VDS200N100.1 operating elements

2.3.1.

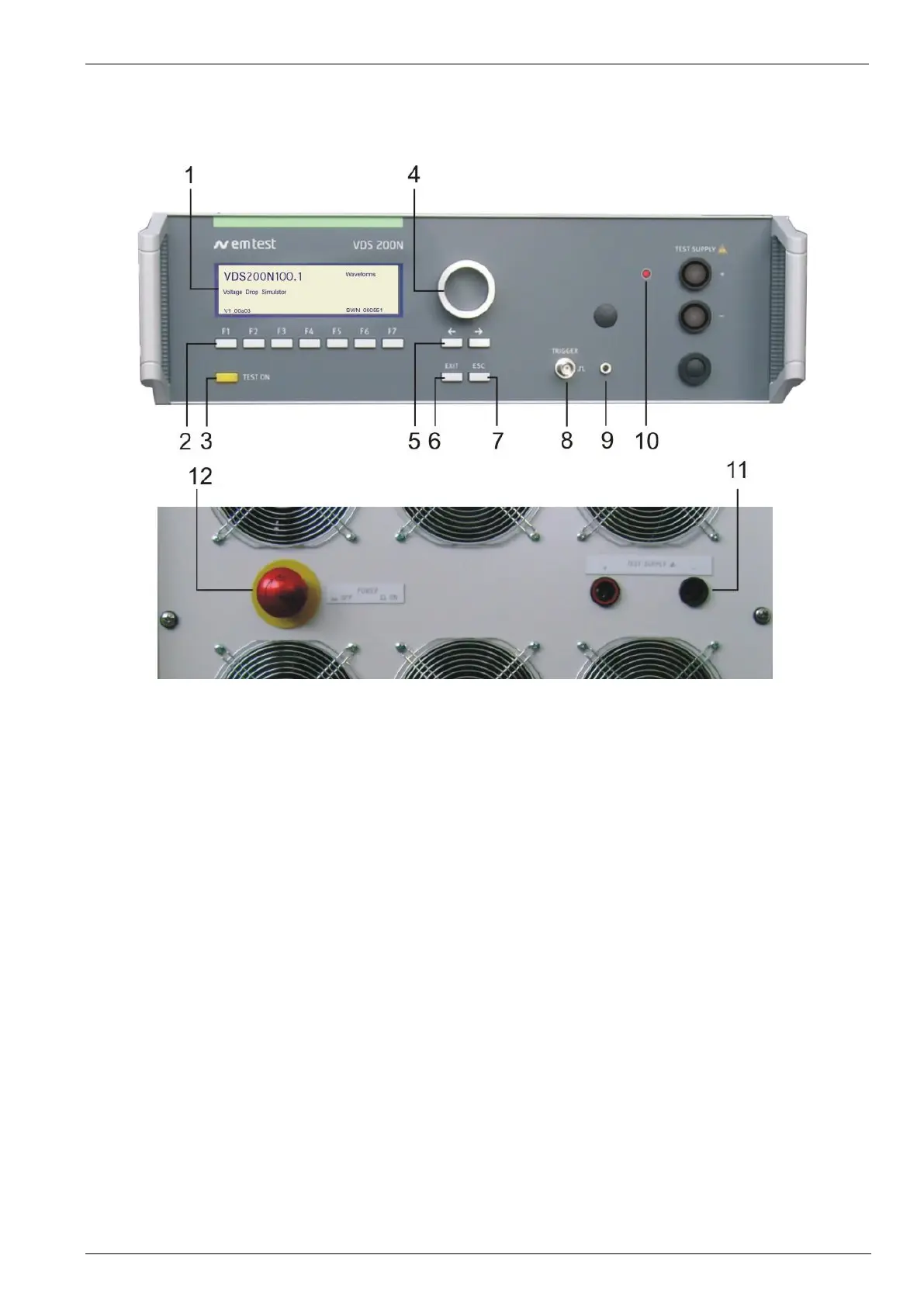

Front view VDS200N100.1

1 Display

2 Function keys "F1..F7"

3 "TEST ON"

4 Knob (Inc/Dec)

5 Cursor keys "" and ""

6 EXIT

7 ESC

8 BNC CRO Trigger ( for oscilloscope)

9 Earthplug for voltage probes

10 LED Power ON

11 DUT test supply output

12 Emergency switch OFF

11 EUT test supply

The EUT is powered via the safety laboratory plugs at the front panel of the simulator.

12 Emergency Switch OFF

Switches off the DUT output. ( for release the button turn before)
