EM TEST VDS 200 Series User Manual

EM TEST VDS 200 Series
Manual for Operation V 5.19 7 / 57
Special Models not listed in this list are customized versions. These devices have a Firmware version
x.xxaxxsxx. Some parameters can differ to the specs of this manual. The rest of the operation is according to this
manual.
Bipolar models
Model voltage
current inrush
sinus function
f max
VDS 200N30.1 +30V, -5V
+60V, -5V
I = 0A – 50A ± 10% 150A 200ms
I = 0A – 30A ± 10% 90A 200ms
50kHz
VDS 200N50.1 +30V, -5V
+60V, -5V
I = 0A – 85A ± 10% 220A 200ms
I = 0A – 50A ± 10% 150A 200ms
50kHz
VDS 200N100.2 +40V, -5V
VDS 200N100.6 +70V, -5V
I = 0A – 100A ± 10% 500A <10ms (32V)
I = 0A – 100A ± 10% 500A <10ms (15V)

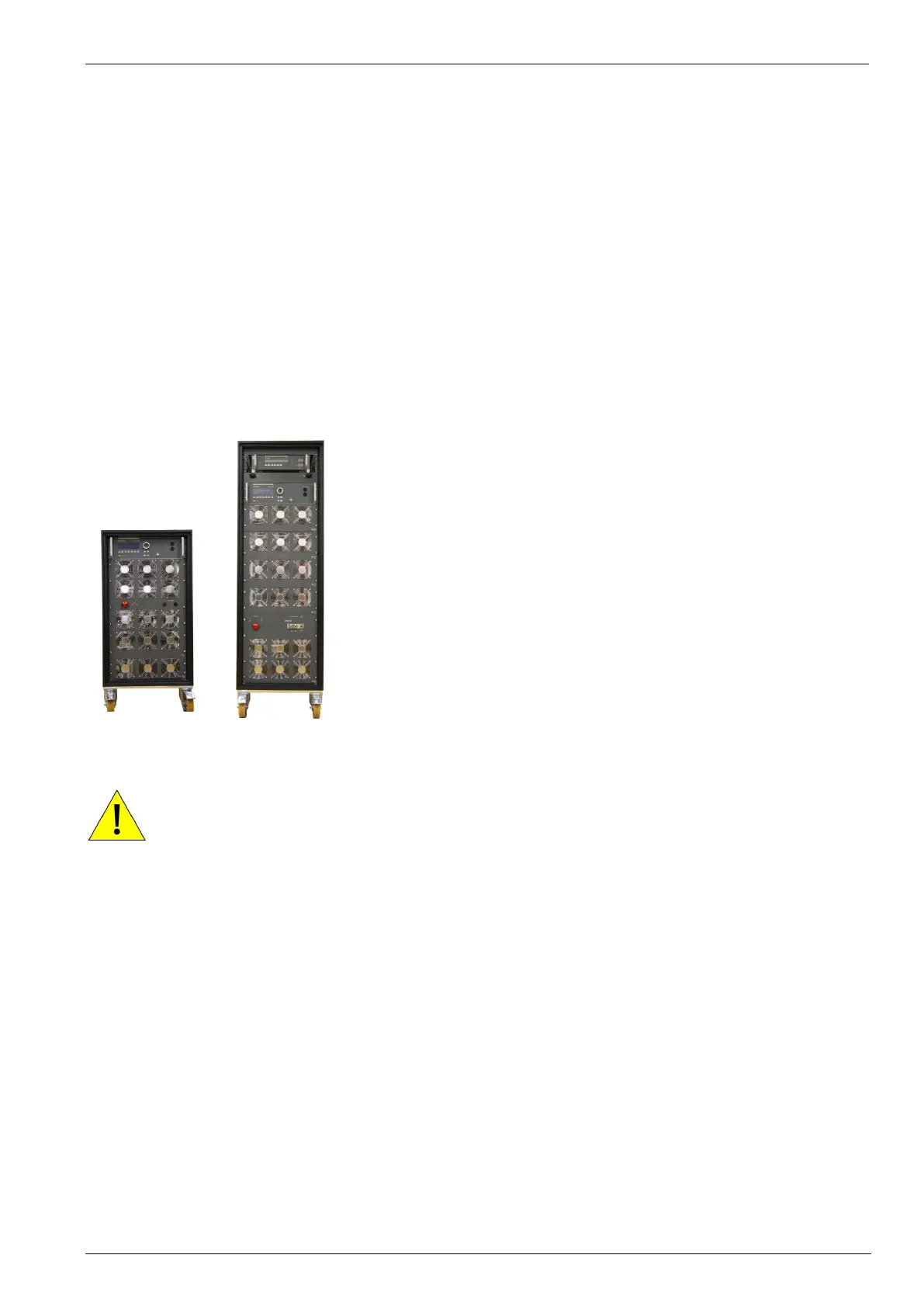

VDS 200N50.1
VDS 200N100.6
Display of negative voltages
The voltage indication in the display shows only positive output voltages. Negative voltages are not
shown in the display.
1.2.
RDS Models
Model voltage
current inrush
sinus function
f max
RDS 200N 16V
I = 0A – 10A ± 10%
5kHz
