4.4.
Fuses

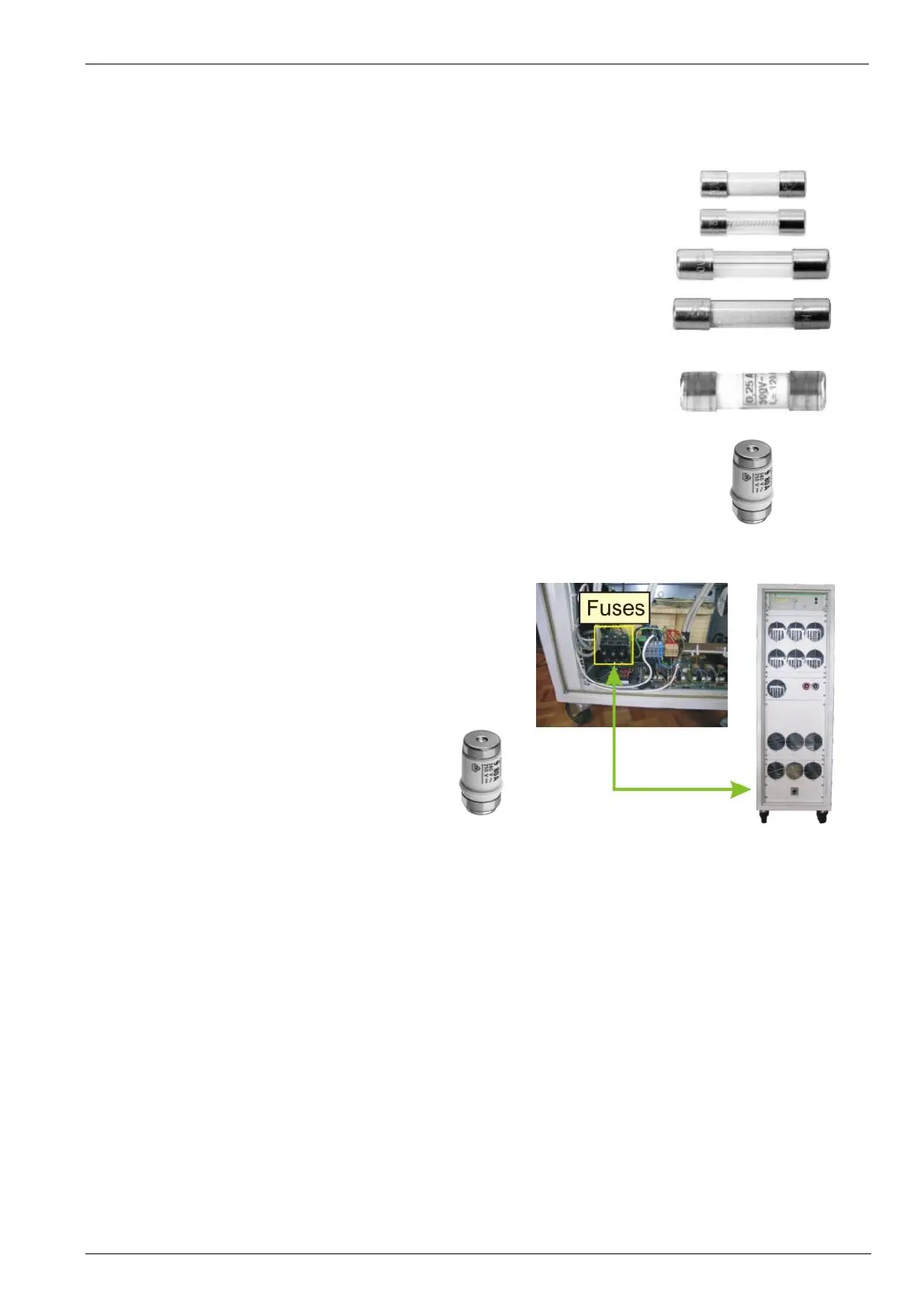

The mains fuses of the VDS 200 generators up to 100A DUT current are located at the rear side of the unit.
Depends of the fuse model you can replace it manually or with a screw driver tool.
Surface mount Fuse
Rating : 0.16A – 20A
Voltage : 250V ac
Dimension: 5mm x 20mm
Miniature Fuse
Rating : 0.5A – 32A
Voltage : 250V ac
Dimension: 6.3mm x 32mm
Breaking Capacity 200A – 10kA
Miniature Fuse
Rating : 16A – 20A
Voltage : 400V ac
Dimension: 10.3mm x 38mm
Breaking Capacity : >100kA
Fuse NEOZED
Rating : 2 ..100A
Voltage: AC 400V / DC 250V
Dimension D02
Operating Class : gG
VDS 200 >100A
Larger VDS200 generators have the fuses at
the left side. For access it is necessary to
remove the coverage. The fuses are located at
the lower part of the unit.
Fuse NEOZED
Rating : 2 ..100A
Voltage: AC 400V / DC 250V
Dimension D02
Operating Class : gG
