EM TEST VDS 200 Series User Manual

EM TEST VDS 200 Series
Manual for Operation V 5.19 33 / 57
4.5.
Overvoltage protection
General
With the overvoltage protection the user can protect the output voltage in case of an unwanted overvoltage at the
VDS200 output in case of wrong voltage setting or failure. The overvoltage protection is a hardware crow bar that
will cut down the voltage output of the VDS 200 and shut down the output voltage.
The overvoltage protection is available at the following devices:
Device
Voltage setting
VDS200N100.4
Switch rear side
VDS 200N150 (option)
Jumper internal
VDS 200N200 (option)
Jumper internal
4.5.1.
Protection voltage level setting

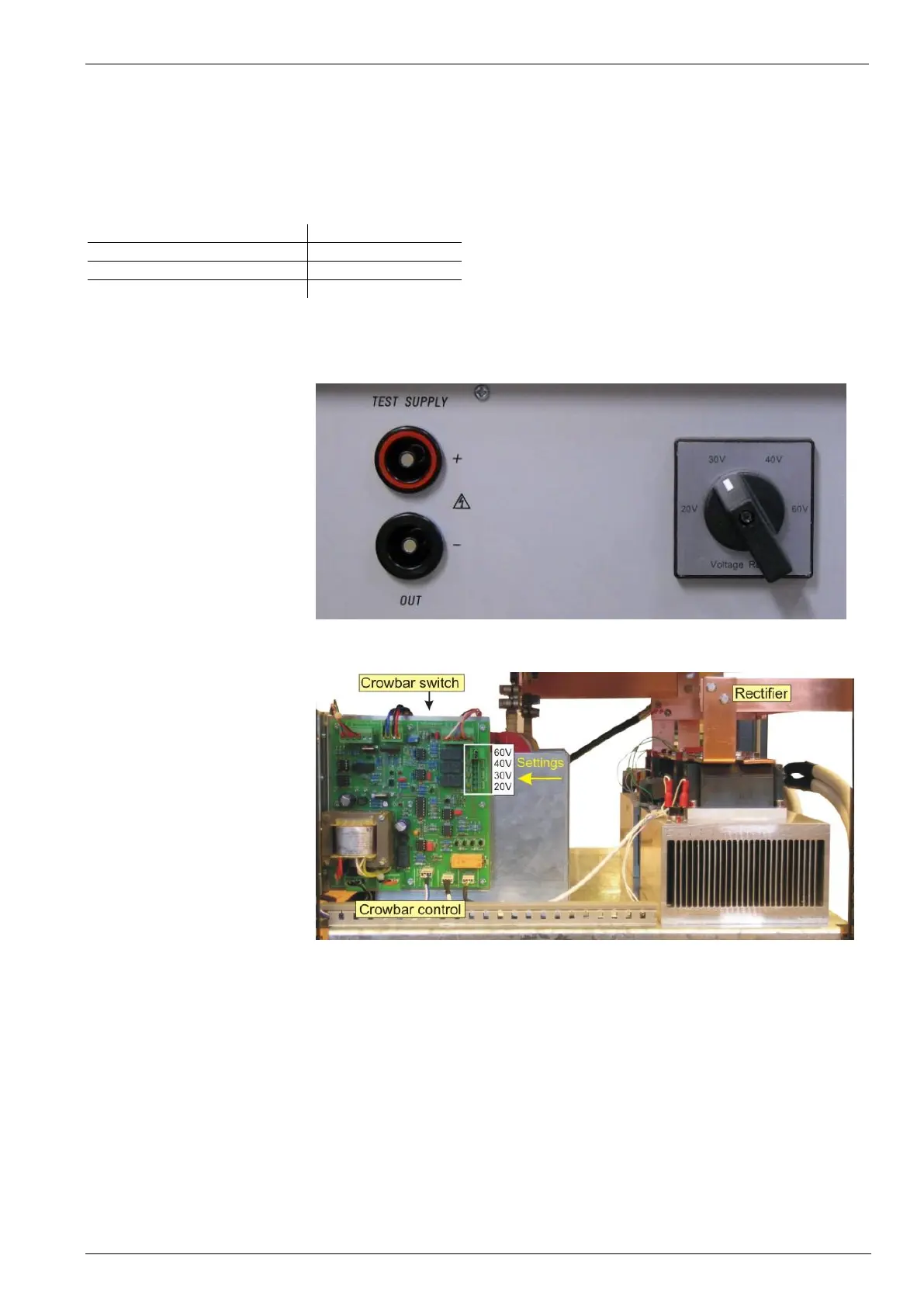

VDS 200N100.4
The overvoltage protection
selector switch is located at
the rear side of the VDS
200N100.4
The figure shows the switch
position set to 30V protection
level.
VDS 200N150 / VDS 200N200
To set the optional
overvoltage protection, the
user must open the frame and
set jumper switch for the
protection level.
The figure shows the position
for jumper setting
