EM TEST VDS 200 Series User Manual

EM TEST VDS 200 Series
Manual for Operation V 5.19 22 / 57

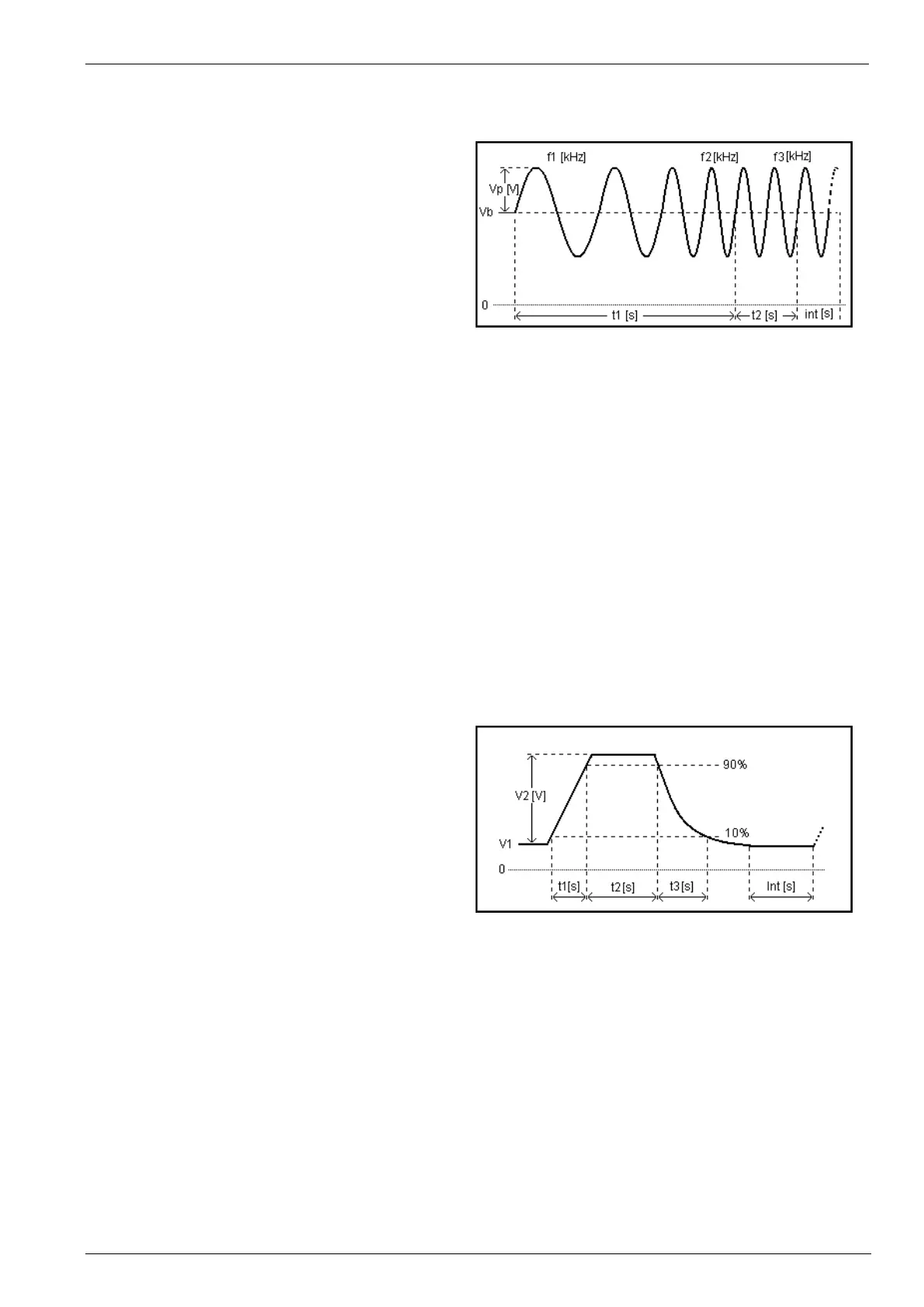

3.3.2.5.
Sinus Sweep
This test simulates a residual a.c. on the dc supply
During Int f3 is applicated
Limitations
Vb + Vp <= 30.0V (60.0V )
Vb - Vp = 0.0V
For frequency setting see the following limitations
- max 6Vpp up to the full 50kHz range
- max 16Vpp up to 25kHz
Parameters:
Vb
0.0V
-
30.0V (60.0V)
Vp
0.0V
-
5.0V
f1
0.001Hz
-
50.000kHz
f2
0.001Hz
-
50.000kHz
f3
0.001Hz
-
50.000kHz
t1
0.1s
-
999.9s
t2
0.1s
-
999.9s
int
0s
-
999s
n
1
-
30,000 / endl.
tri
Auto / Manual
I
1A
-
30A (Imax)
3.3.2.6.
Overvoltage Vmax
This test simulates a high energy load dump pulse.
Limits depends VDS voltage range
Input restrictions
0.0 V  V1 + V2  30.0V (60.0V)
Parameters:
V1
0.0V
-
30.0V (60.0V)
V2
0.0V
-
30.0V (60.0V)
t1
0.01s
-
999.99 s
t2
0.01s
-
999.99 s
t3
0.01s
-
999.99 s
int
0.1s
-
99.9s
n
1
-
30,000 / endl.
tri
Auto / Manual
I
1A
-
30A (Imax)
