General Installation Recommendations
Installation
IND100210-42

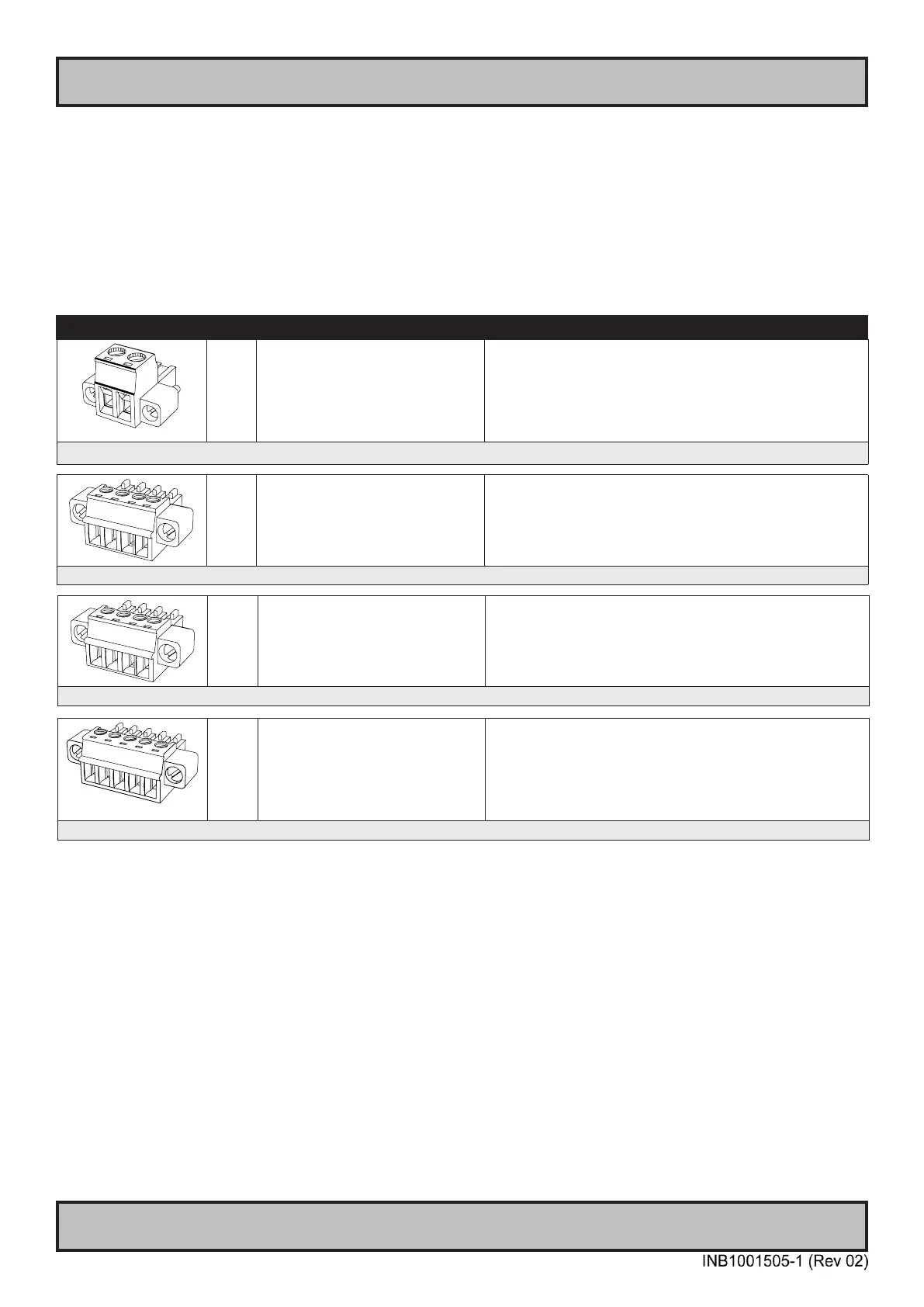

Housing / Terminal Block Connector Overview
Housing / Terminal Block connectors are available in different sizes (example 2-pin, 4-pin, 5-pin) which plug into the
connector area of the unit. They are mounted by factory default and delivered with the unit. The housing / terminal
block connectors have steering rails, which ensures that it can not be mounted wrong. The color of these connectors
may vary between black, green and orange depending on manufacturer. You may use approved equivalents of these
connectors, but note that the warranty will be void if any damage would occur to either the unit’s original PCB terminal
socket connector or inside the unit (electronic components, boards etc.). The table below is applicable for any Series
X products, such as Display and Panel Computers, including newer type of Stand-Alone Computers.
Illustration Pins Manufacturer Details Connector used for module
5-pin MC 1,5/ 5-STF-3,81
Screwdriver: SZS 0,4X2,5mm
VDE, slot-headed.
Tightening torque min. 0.22 Nm.
Tightening torque max 0.25 Nm.
• RS-422 / RS-485 NMEA
(PCA200828-1 / PCA100293-1 / Q170 IO)
• Digital Input/Output (PCA100297-1 / Q170 IO)
Identi ed on Hatteland Technology product datasheet as:
“Terminal Block 3.81”
2-pin MSTB 2,5/ 2-STF-5,08 BK
Screwdriver: SZS 0,6x3,5, slot-
headed.
Tightening torque min. 0.5 Nm.
Tightening torque max 0.6 Nm.
• DC Power IN (24VDC) - Dual Input
Identi ed on Hatteland Technology product datasheet as:
“Terminal Block 5.08”
4-pin BCZ 3.81/04/180F SN BK BX
Screwdriver: 0.4x2.5mm DIN 5264.
Tightening torque min.. 0.2 Nm.
Tightening torque max. 0.25 Nm.
• CAN Interface (ZIA0001310-B)
Identi ed on Hatteland Technology product datasheet as:
“Terminal Block 3.81”
4-pin BCZ 3.81/04/180F SN BK BX
Screwdriver: 0.4x2.5mm DIN 5264.
Tightening torque min.. 0.2 Nm.
Tightening torque max. 0.25 Nm.
• CAN Interface (ZIA0001310-SLCAN)
Identi ed on Hatteland Technology product datasheet as:
“Terminal Block 3.81”
