EMBRON Hatteland E Series - Flush Mounting 23.8 Inch

Technical Drawings - HD CMB SE1-B1
81
IND100132-448
This document is the property of Hatteland Technology AS. This document and any authorized reproduction thereof, must not be used in any way against the interest of Hatteland Technology AS. Any authorized reproduction, in whole or in part, must include this legend. Hatteland Technology AS Proprietary information. Not to be distributed to any third party without written permission.
Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG file.
Flush Mounting 23.8 inch
572,00 22,52 594,00 23,39
363,00 14,29
385,00 15,16
11,00 0,43
11,00 0,43
4x R2,00
0,08
4x R4,00
0,16
AA
Console thickness
16,00 0,63
2x R4,00
0,16
220,00 8,66
16,00 0,63
Sunker face for Display
10,00 0,39
Max thickness for mounting the bracket
Console thickness
A-A (2 : 1)
FRONT VIEW
SIDE VIEW
BACK VIEW

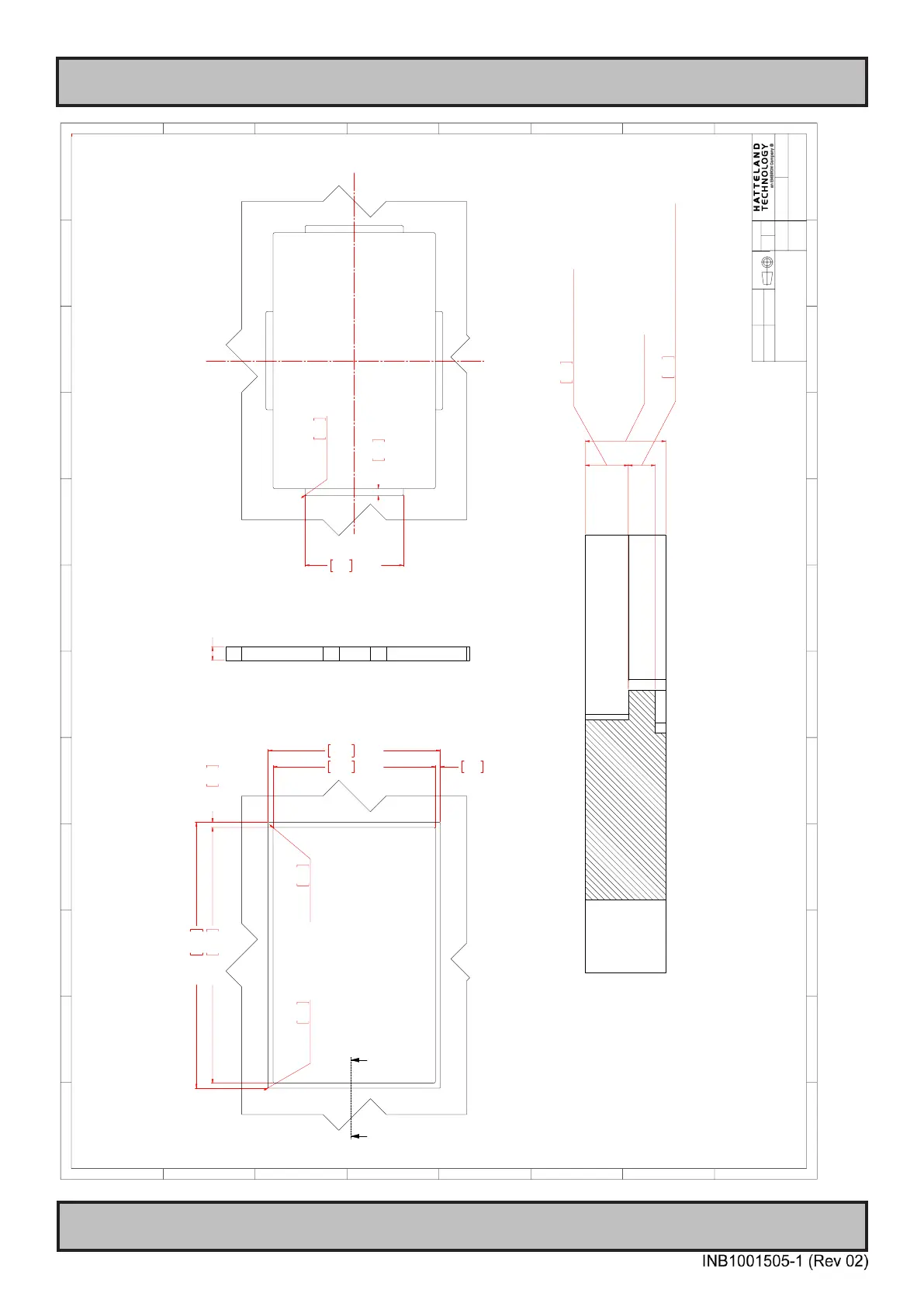

FLUSH MOUNTING DETAILS - PANEL CUTOUT
Applies for all 24 inch Displays and Panel Computers
