94
Appendix
IND100077-206

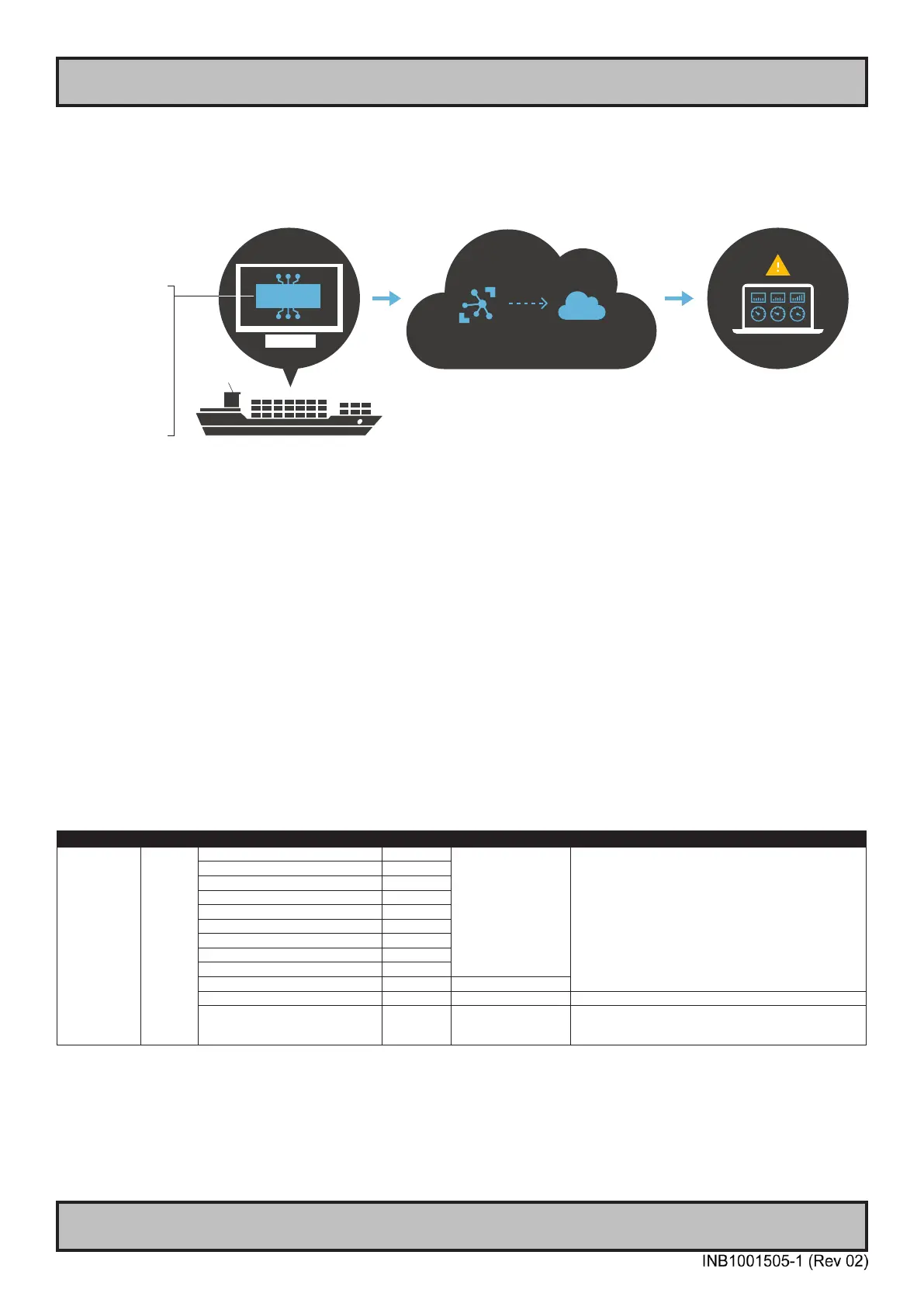

IoT Enabled Products from Hatteland Technology
Sensors
Disk Health
Disk Space
System Heat
Fans
Temperatures
Voltage
Timers
Light Sensors
Backlight Setting
SYSTEM
PROCESSING
PRESENTATION
• Alarm
• MRP Integration
• System Surveillance
• Device Status
IoT HUB Cloud Service
IoT EDGE
With IoT you can easy, fast and secure review any product parameters, Accessible from anywhere on any device,
Monitor and estimate health of products to ensure optimal operation today and tomorrow, Keep track of events down
to seconds or past years to plan future maintainance and more. Via an IoT EDGE application you can collect data
from the various sensors in our products, and send this information to a Cloud Service for further processing and
analytics.
The table below provides an overview of onboard IoT parameters of the units and their access methods. The system
built around are equipped with features of sensoring temperature, voltage, environmental luminance and other
diagnostic parameters. The end-user can utilize the parameters to analyze the working status of the system. The IoT
parameters are distributed in different modules, examples SuperIO, VCOM and S.M.A.R.T.
Since the data sent to Cloud Service is stored in a structured plain text format and accessible via standarized API,
there is no limits on how you can use this data further in any type of application, part of software development or even
design your own customized graphical layouts to easily illustrate the data - in near real-time!
Access to parameters - Series E Panel Computers (MMC)
IoT (Internet of Things) Overview
Typenumbers Chipset IoT Parameter Hardware Access Method Reference
HD 16T30 MMC
HD 21T30 MMC
HD 24T30 MMC
HD 27T30 MMC
Intel® SOC
VBAT (CMOS Battery Voltage) Motherboard
SCOM "SIO"
www.hattelandtechnology.com/hubfs/pdfget/inb100018-7.htm
VCore (CPU Core Voltage) Motherboard
V5V (+5V) Motherboard
V12V (+12V) Motherboard
V3VSB (3.3V Standby) Motherboard
V3VCC (3.3V Active) Motherboard
CPUTEMP (CPU temperature PECI) Motherboard
SYSTEMP (SYS Temperature onboard) Motherboard
CPUFAN (CPU FAN speed) FAN
LIS (Light Sensor via SCOM) Light Sensor SCOM "LIS"
S.M.A.R.T. Data HDD/SSD S.M.A.R.T Monitor Tools www.smartmontools.org
System Parameters provided by
Operating System, like CPU load, RAM
load, Disk load etc
Motherboard WinAPI
Example: OpenHardwareMonitor
www.github.com/openhardwaremonitor/openhardwaremonitor
