EMBRON Hatteland E Series - Physical Connections

33
IND100133-74

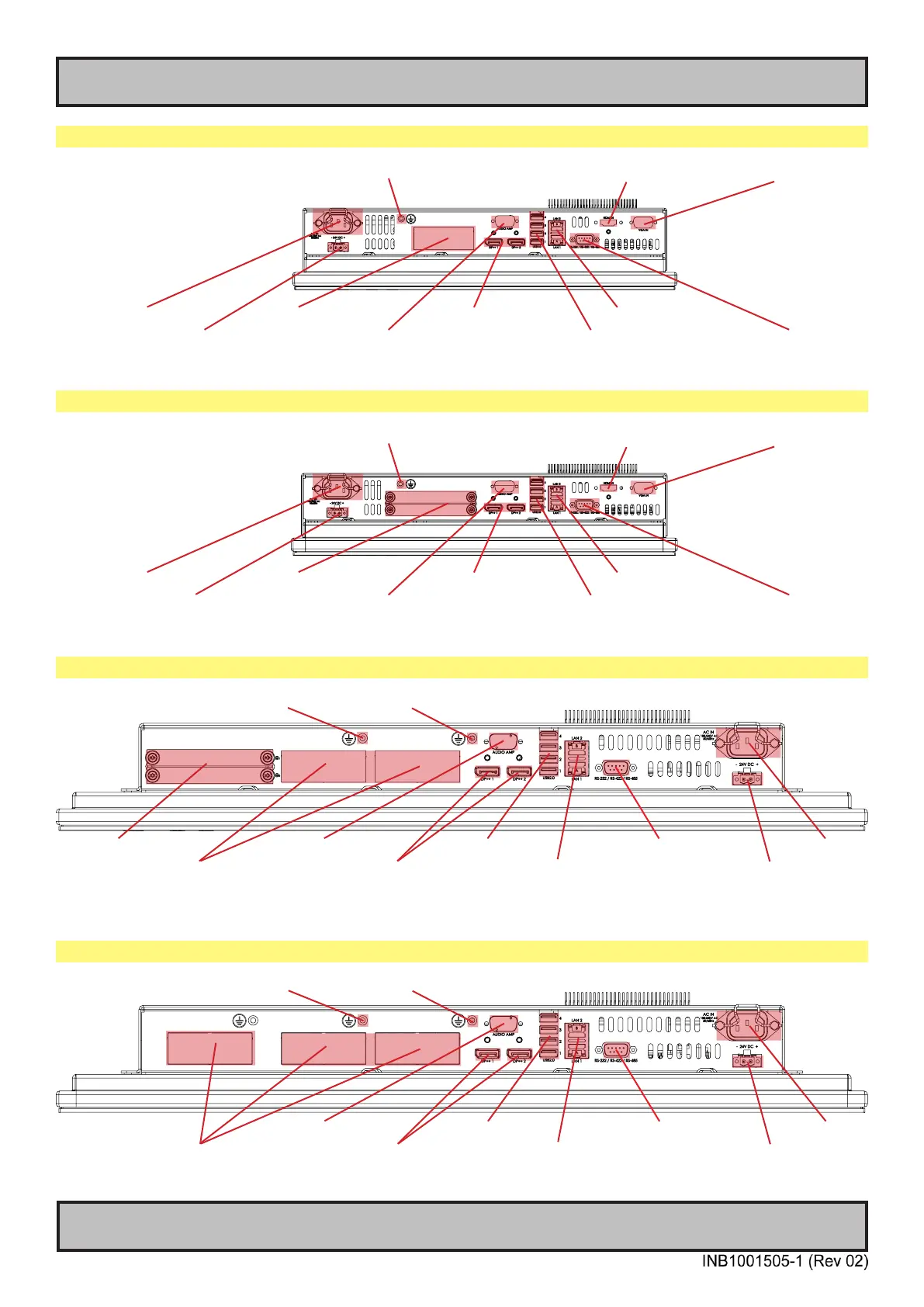

Physical Connections
Grounding Screw (Power)
1 x RS-232/422/485 COM1
Power Input DC
4 x USB2.0
2 x RJ-45 Network (1 / 2)
2 x Removable Storage Trays
Expansion Area for
Optional Modules
Grounding Screw (Modules)
1 x Audio AMP (Optional)
2 x DisplayPort (DP++) OUT
Power Input AC
Grounding Screw (Power)
1 x RS-232/422/485 COM1
Power Input DC
4 x USB2.0
2 x RJ-45 Network (1 / 2)Expansion Area for
Optional Modules
Grounding Screw (Modules)
1 x Audio AMP (Optional)
2 x DisplayPort (DP++) OUT
Power Input AC
1 x RS-232/422/485 COM14 x USB2.0
2 x RJ-45 Network (1 / 2)
Grounding Screw (Power / Module)
2 x DisplayPort (DP++) OUTExpansion Area for
Optional Module
Power Input AC
Power Input DC 1 x Audio AMP (Optional)
Connection area of unit 15.6 inch with 1 x Module (illustration)
Connection area of unit 21.5, 23.8 and 27.0 inch with 2 x Modules + Removable Storage Trays (illustration)
Connection area of unit 21.5, 23.8 and 27.0 inch with 3 x Modules (illustration)
1 x HDMI In (Reserved)
1 x VGA In (Reserved)
1 x RS-232/422/485 COM14 x USB2.0
2 x RJ-45 Network (1 / 2)
Grounding Screw (Power / Module)
2 x DisplayPort (DP++) OUT2 x Removable Storage TraysPower Input AC
Power Input DC 1 x Audio AMP (Optional)
Connection area of unit 15.6 inch with 1 x Removable Storage Trays (illustration)
1 x HDMI In (Reserved)
1 x VGA In (Reserved)
