Pinout Assignments
93
IND100241-37
Appendix

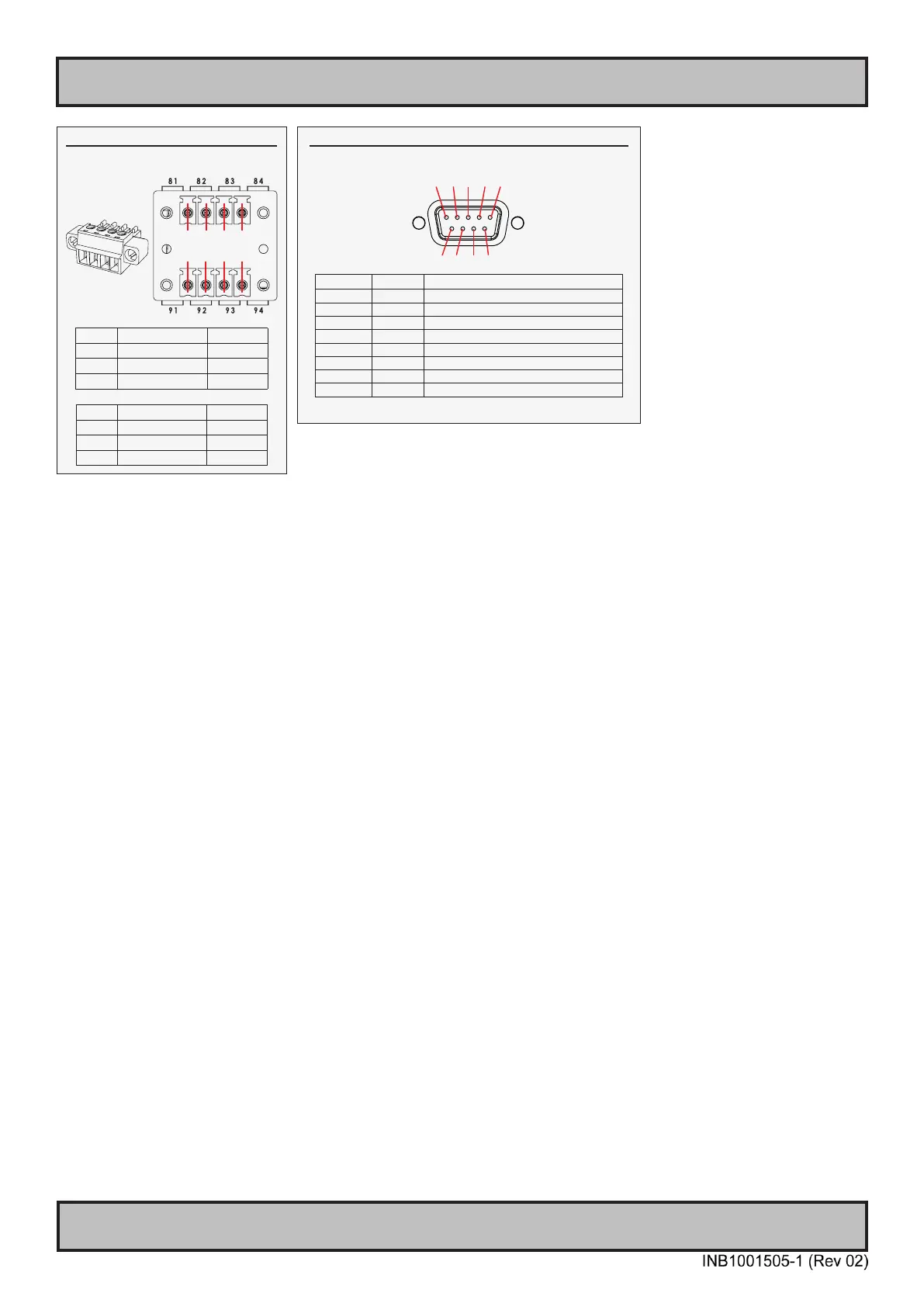

4+4 pin CAN I/O Module, 2 channels
Type Number “ZIA0001310-B / ZIA0001310-SLCAN”
X8
CAN1
X9
CAN2
1 2 3 4
1 2 3 4
Pin 01 X8 - Can1: 081 In Low
Pin 02 X8 - Can1: 082 Out Low
Pin 03 X8 - Can1: 083 In High
Pin 04 X8 - Can1: 084 Out High
Pin 01 X9 - Can2: 091 In Low
Pin 02 X9 - Can2: 092 Out Low
Pin 03 X9 - Can2: 093 In High
Pin 04 X9 - Can2: 094 Out High
9-pin Ampli ed Mono/Stereo Audio Out, DSUB Female
Type Number “HT 00235 OPT-A1”
5 4 3 2 1
9 8 7 6
PIN 01 LAUDR Left Audio Return*
PIN 02 LAUD Left Audio*
PIN 03 RAUDR Right Audio Return
PIN 04 RAUD Right Audio
PIN 05 N/C No internal connection
PIN 06 N/C No internal connection
PIN 07 N/C No internal connection
PIN 08 N/C No internal connection
PIN 09 N/C No internal connection
*For Mono: connect pin 01 and 02 only
