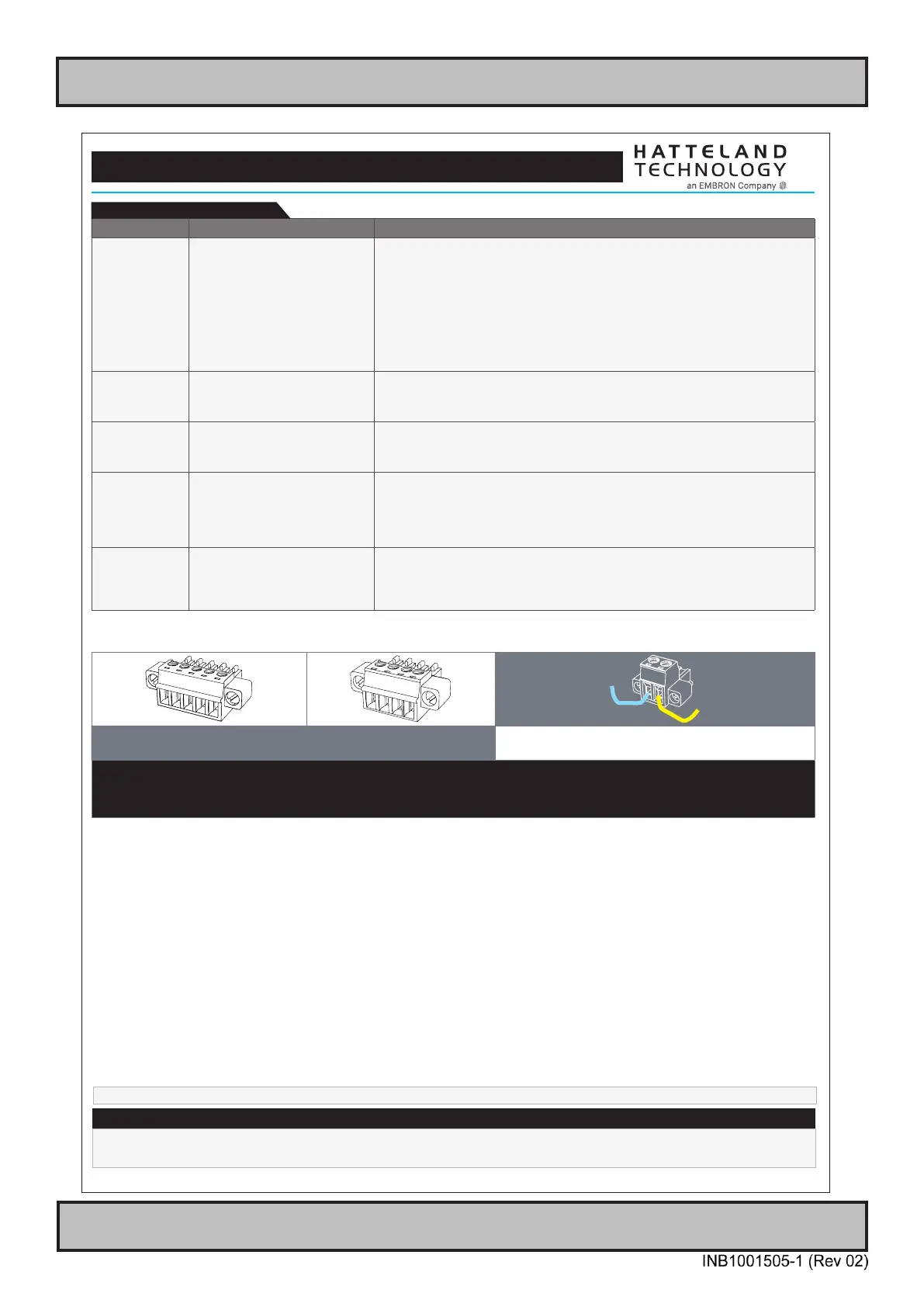

Specications - External Modules (USB)
64
IND100129-170
All specifications are subject to change without prior notice!
SPECIFICATIONS
Note: All specifi cations are subject to change without prior notice!
Please visit www.hattelandtechnology.com for the latest electronic version.
2/2
TypeNumber Description Internal Specications (link to separate datasheets)
HT 00262 OPT-A1 NMEA COM
4 x NMEA RS-422/RS-485 isolated
Via 5-pin Terminal Block 3.81 Connector
Connects through 1 x USB Cable
(Based on PCA200828-1)
www.hattelandtechnology.com/hubfs/pdf/ind_ds/ds_pca200828-1_com_module_rs-422_rs-485.pdf
www.hattelandtechnology.com/hubfs/pdf/misc/doc102080-1_usb-com_module_conguration.pdf
www.hattelandtechnology.com/hubfs/drivers/ht00262opt-a1_drivers.zip
www.hatteland-display.com/support_hardware_drivers_peripherals.php
Linux: http://www.ftdichip.com/Drivers/D2XX.htm
(Based on PCA100293-1) - Obsolete
www.hattelandtechnology.com/hubfs/pdf/ind_ds/ds_pca100293-1_com_module_rs-422_rs-485.pdf
www.hattelandtechnology.com/hubfs/pdf/misc/doc102080-1_usb-com_module_conguration.pdf
www.hattelandtechnology.com/hubfs/drivers/ht00262opt-a1_drivers.zip
www.hatteland-display.com/support_hardware_drivers_peripherals.php
Linux: http://www.ftdichip.com/Drivers/D2XX.htm
HT 00263 OPT-A1 COM
4 x RS-232 COM
Via 4 x DB-9 Male Connector
Connects through 1 x USB Cable
(Based on PCA100294-1)
www.hattelandtechnology.com/hubfs/pdf/ind_ds/ds_pca100294-1_com_module_rs-232.pdf
www.hattelandtechnology.com/hubfs/pdf/misc/doc102080-1_usb-com_module_conguration.pdf
www.hattelandtechnology.com/hubfs/drivers/ht00263opt-a1_drivers.zip
HT 00264 OPT-A1 CAN
1 x CAN isolated
Via 4-pin Terminal Block 3.81 Connector
Connects through 1 x USB Cable
(Based on ZIA0001310-B)
www.hattelandtechnology.com/hubfs/pdf/ind_ds/ds_zia0001310-b_can_module.pdf
www.hattelandtechnology.com/hubfs/pdf/misc/doc101357-1_hd_can_module_programmer_guide_windows.pdf
www.hattelandtechnology.com/hubfs/pdf/misc/doc101356-1_hd_can_module_programmer_guide_linux.pdf
www.hattelandtechnology.com/hubfs/drivers/can_gw_application_note_package.zip
HT 00264 OPT-A2 SLCAN
1 x CAN isolated
Via 4-pin Terminal Block 3.81 Connector
Connects through 1 x USB Cable
(Based on ZIA0001310-SLCAN)
www.hattelandtechnology.com/hubfs/pdf/ind_ds/ds_zia0001310-slcan_can_module.pdf
www.hattelandtechnology.com/hubfs/pdf/misc/doc205993-1_usb_slcan_module_user_manual.pdf
www.hattelandtechnology.com/hubfs/pdf/misc/user_guide_for_hatteland_display_can_interface_driver_(linux).pdf
Windows® Driver: www.hattelandtechnology.com/hubfs/drivers/slcan_setup_hd_gw_svc1.5.0.zip
Linux: www.hattelandtechnology.com/hubfs/drivers/customer_pack_hdcan_linux_180222.zip
HT 00273 OPT-A1 DIO
4 x Digital Input isolated
4 x Digital Output
Via 5-pin Terminal Block 3.81 Connector
Connects through 1 x USB Cable
(Based on PCA100297-1)
www.hattelandtechnology.com/hubfs/pdf/ind_ds/ds_pca100297-1_4x_digital_module.pdf
www.hattelandtechnology.com/hubfs/pdf/misc/doc101781-1_programmer_guide_ht00273opt-a1.pdf
www.hattelandtechnology.com/hubfs/drivers/dio_pca100297-1_ht00273opt-a1_package.zip
Ordering Details:
A P P R O V A L S & C E R T I F I C A T E S
These products have been tested / type approved by the following classification societies:
IEC 60945 4th (EN 60945:2002) IACS E10 EU RO MR - Mutual Recognition (covers DNV, BV, ABS, GL, NK and LRS certificates)*
* Pending for HT 00274 OPT-A1 / PCA100298-1
Most modules interfaces by using Terminal Block type connectors (where applicable), as listed below:
For NMEA COM & DIO Module Connection:
5-pin
MC 1,5/ 5-STF-3,81
For CAN Module Connection:
4-pin
BCZ 3.81/04/180F SN BK BX
Secure cables with Screw Terminals
Suitable cable housing references:
For 5-pin:
https://www.phoenixcontact.com/online/portal/us?uri=pxc-oc-itemdetail:pid=1834372&library=usen&pcck=P-11-02-01&tab=1
For 4-pin
http://catalog.weidmueller.com/procat/Product.jsp;jsessionid=B040D5EB6832629E567C884809FDF6C1?productId=(%5b1005290000%5d)
Compass Safe Distance - Standard: 15cm - Steering: 10cm
