EMC VNX Series Parts Location Guide

VNX7500 Block and File platform stackup
EMC VNX7500 Parts Location Guide 7
Front view
Figure 3 shows an example of a Block and File (Unified) VNX7500 platform having a dual
2U SPS
1
, a 2U SPE, two 2U Data Mover enclosures (with two Data Movers
2
per enclosure),
and two 1U Control Stations (one optional).
Figure 3 shows only the VNX7500 platform components. The DAEs are not shown.

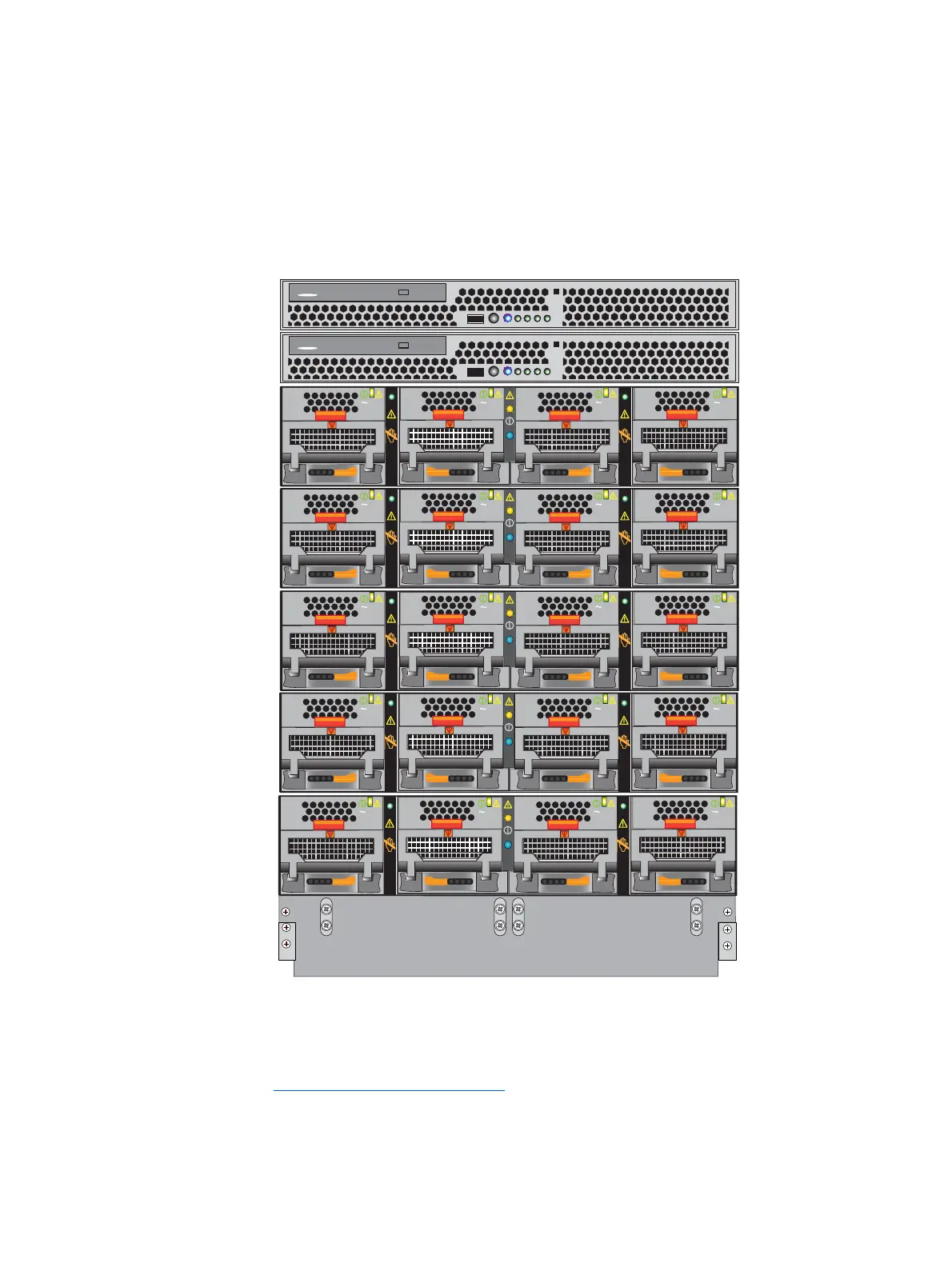

Figure 3 Example of a Block and File (Unified) VNX7500 platform using a 2U SPS (front view)
1. Use a dual 2U SPS when a 4U DAE with Flash drives is used in a Vault drive configuration.
Otherwise, the dual 1U SPS is used with the 2U or 3U DAE as the Vault drive.
2. The term Data Mover is used throughout this guide. The term Data Mover is also referred to as a
blade. These terms are interchangeable and basically mean the same.
DVD
DVD
Control Station 0
Control Station 1
(optional)
Storage
processor
enclosure
AC
AC
AC
AC
AC
AC
AC
AC
Data Mover
enclosure 0
AC
AC
AC
AC
Data Mover
enclosure 1
(optional)
AC
AC
AC
AC
Data Mover
enclosure 2
(optional)
AC
AC
AC
AC
Data Mover
enclosure 3
(optional)
SPS
VNX-000657

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
