EMC VNX Series Parts Location Guide

Storage processor enclosure (SPE)
EMC VNX7500 Parts Location Guide 13
Table 4 shows the part number label location, part number, description, and whether it is
a FRU or CRU.
SP CPU module
To access the SP CPU, you must first remove the power supply/cooling fan modules, as
shown in Figure 9.

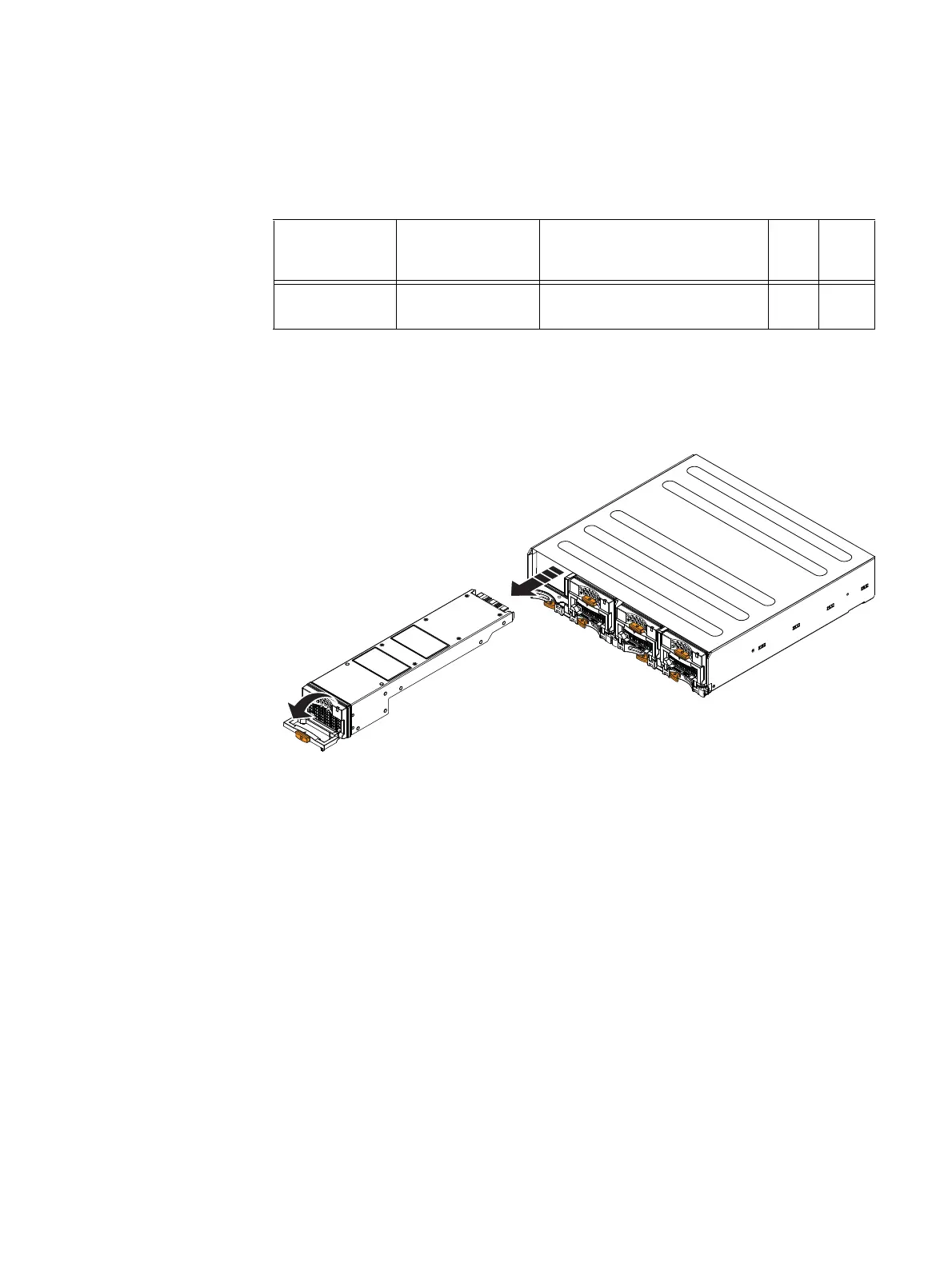

Figure 9 Example of the SP power supply/cooling fan module removal
Figure 10 on page 14 shows the SP CPU module partially removed from the front of the
storage processor enclosure with the two power supply/cooling fan modules set aside.
Table 4 Power supply module/cooling fan part number
Part number label
location (Figure 8
on page 12) Part number Description FRU CRU
071-000-543 SP 400 W, 2U, single 12 V output
power supply/cooling fan module

CL3972
1
1
1
2
2
2
2
1

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
