EMC VNX Series Parts Location Guide

14 EMC VNX7500 Parts Location Guide
Storage processor enclosure (SPE)

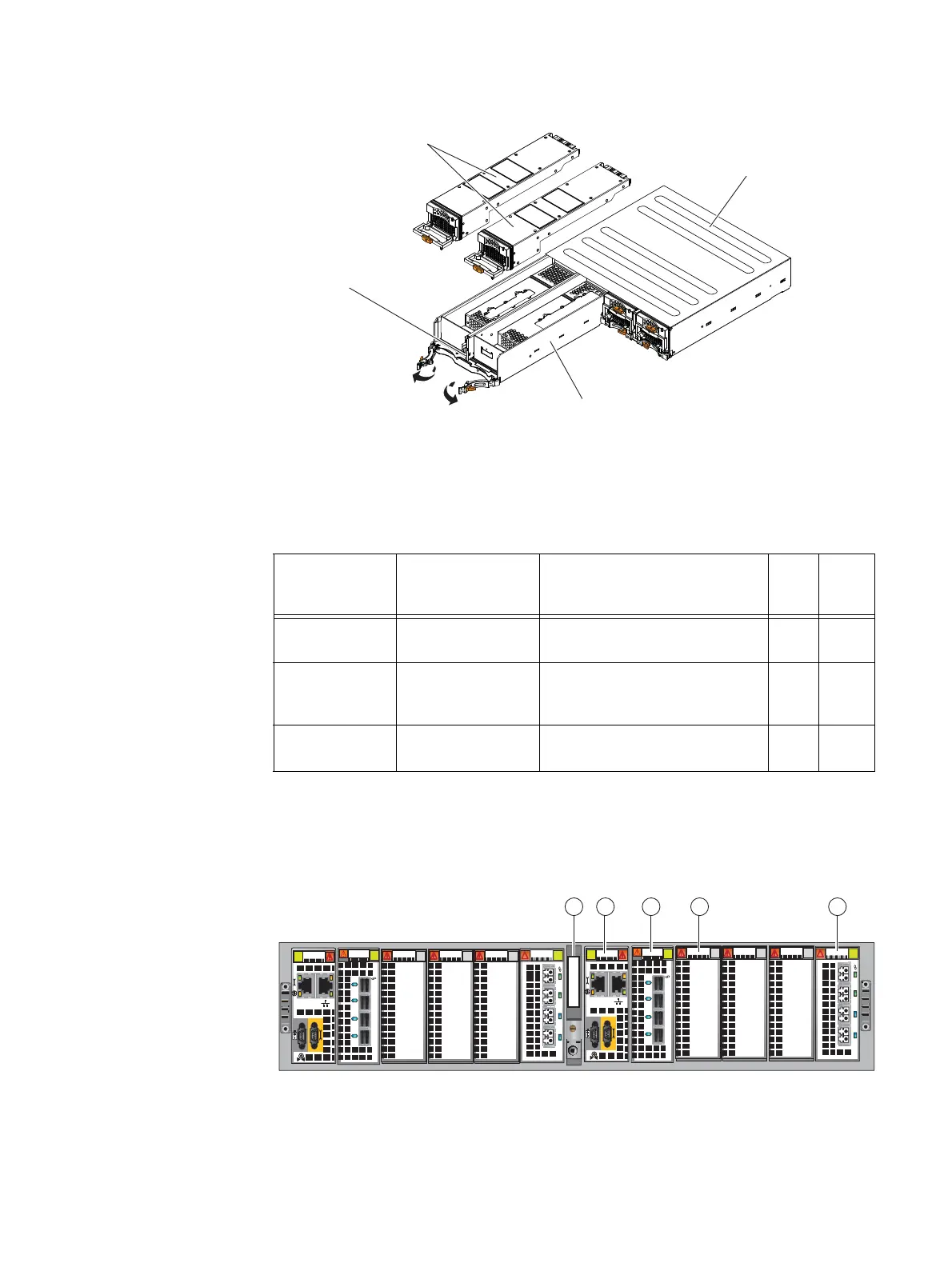

Figure 10 Example of the SP CPU being removed from a storage processor enclosure
The part number label for the SP CPU module in Figure 10 is listed in Table 5.
Rear view
Figure 11 shows 2U storage processor enclosure (SPE) with two storage processors (SP A
and B).
Figure 11 Example of the rear view of the 2U SPE chassis with two SPs (A and B)
1
1
1
1
2
2
2
Part Number (P/N) label
Power/cooling modules
Storage processor enclosure
SP CPU
VNX-000621
Table 5 SP CPU part number
Part number label
location
(Figure 10) Part number Description FRU CRU
110-113-724B Base SP 2.8-GHz CPU module with
24 GB of memory
110-113-748B Optional SP 2.8-GHz CPU module
with 48 GB of memory (for a closer
view, see Figure 10 on page 14)
303-113-700B SP 2.8-GHz CPU module without
memory

0
123
0
123
0
1
23
0
1
23
0
1
23
0
12 3
0
1
23
0
1
23
0123
0123
1
2 3 4 5
VNX-000620

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
