EMC VNX Series Parts Location Guide

I/O modules
EMC VNX7500 Parts Location Guide 23
Management module

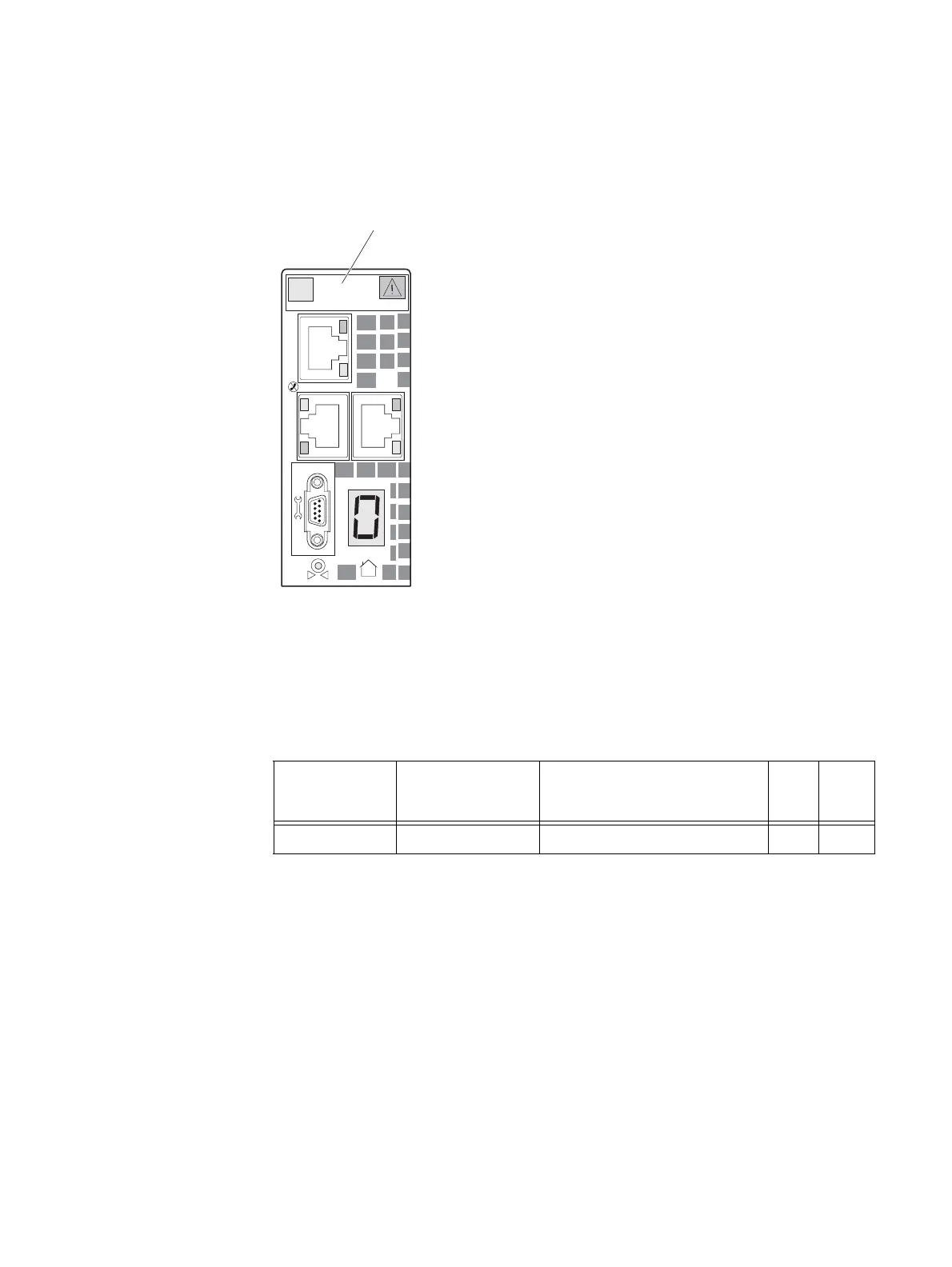

Figure 19 shows the rear view of the 2U Data Mover enclosure management module used
in the 2U Data Mover enclosure.
Figure 19 Example of the Data Mover enclosure management module
Table 13 shows the part number label location, part number, description, and whether it
is a FRU or CRU.
I/O modules
In the VNX7500 platform, I/O modules are used in the 2U storage processor enclosure
(SPE) storage processors (SP A and B) and in the Data Movers of the 2U Data Mover
enclosure.
Each I/O module is identified by a part number, type of ports (copper or optical), latch
handle label, and color label on top of the latch handle. For ease of identification,
Table 14 on page 24 describes each I/O module type in the VNX7500.
2
0
1
#
Part Number (P/N label
CNS-00168
4
Table 13 Data Mover enclosure management module part number
Part number label
location
(Figure 19) Part number Description FRU CRU
110-130-100B Management module 

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
