EMC VNX Series Parts Location Guide

20 EMC VNX7500 Parts Location Guide
Data Mover enclosure
Data Mover CPU module
To access the Data Mover CPU, you must first remove the power supply/cooling fan
modules (Figure 16).

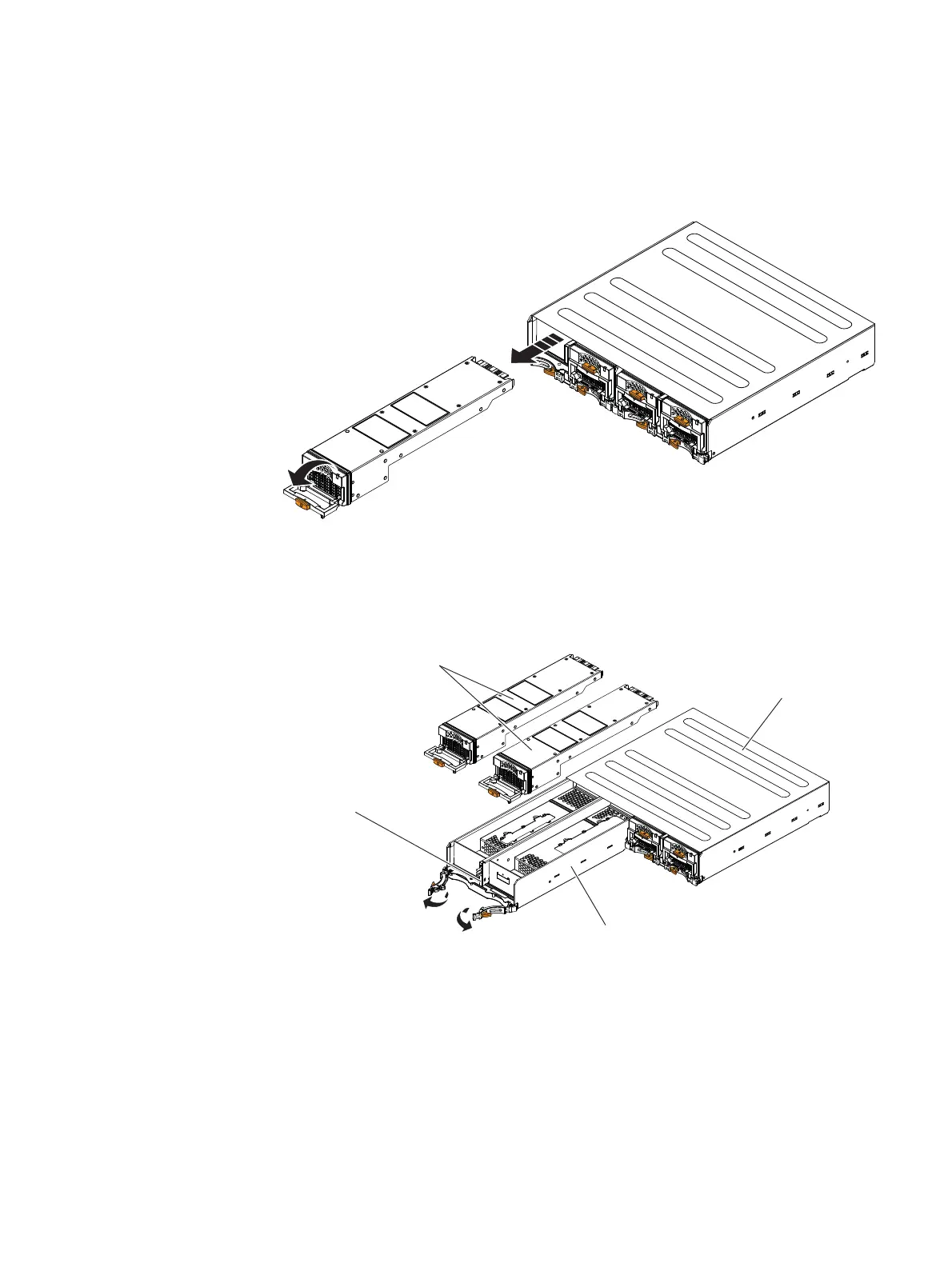

Figure 16 Example of the Data Mover power supply/cooling fan module removal
Figure 17 shows the Data Mover CPU module partially removed from the front of the Data
Mover enclosure with the two power supply/cooling fan modules set aside.
Figure 17 Example of the Data Mover CPU being removed from a Data Mover enclosure
CL3972
1
1
1
2
2
2
2
1
1
1
1
1
2
2
2
Part Number (P/N) label
Power/cooling modules
Data Mover enclosure
Data Mover CPU CNS-001683

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
