Data Mover enclosure
EMC VNX7500 Parts Location Guide 21
The part number label for the Data Mover CPU module in Figure 17 on page 20 is listed in
Table 11.
Rear view

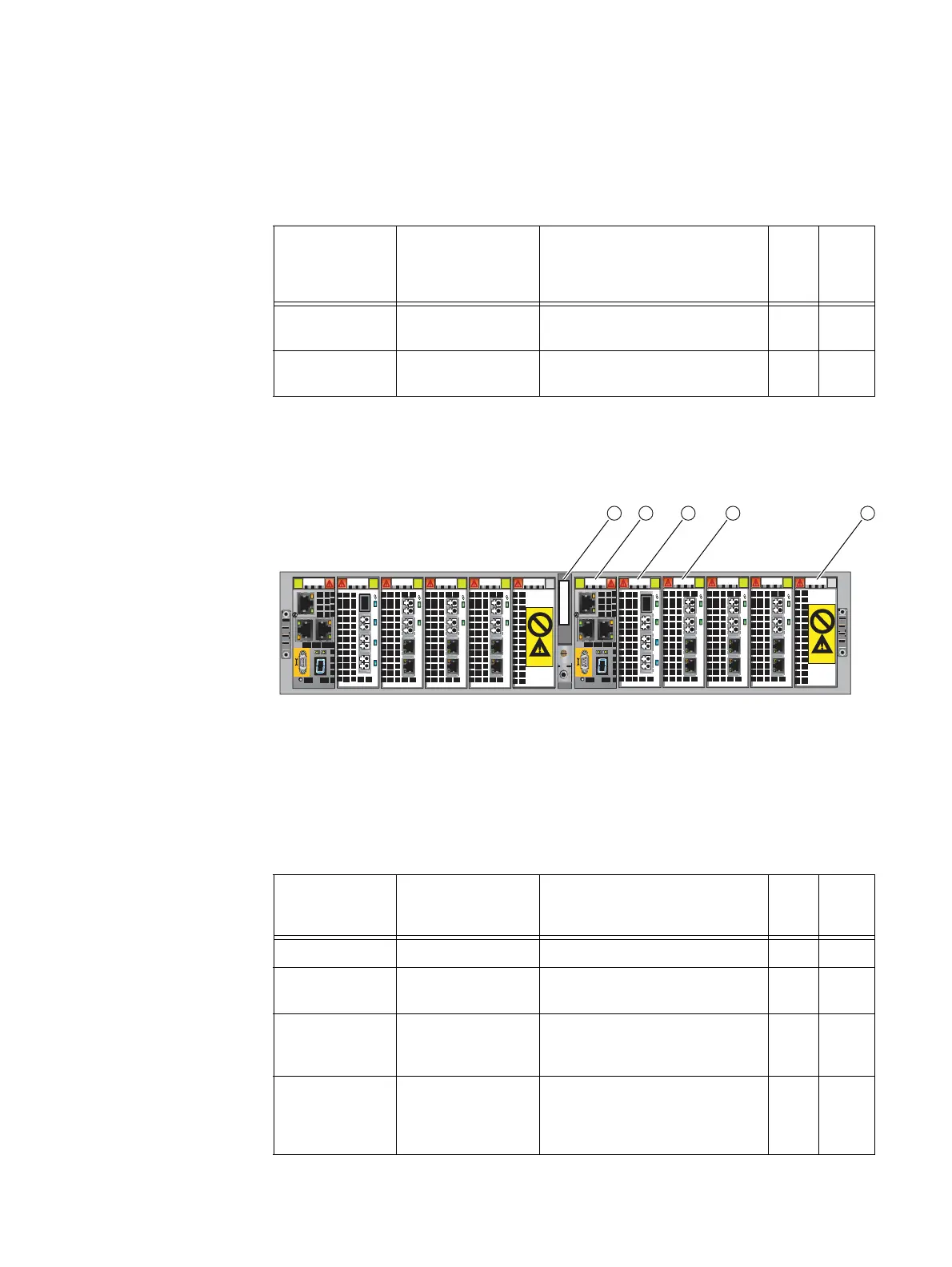

Figure 18 shows the rear view of a 2U Data Mover enclosure.
Figure 18 Data Mover enclosure rear view
Table 12 shows the part number label location, part number, description, and whether it
is a FRU or CRU.
Table 11 Data Mover CPU part number
Part number label
location
(Figure 17 on
page 20) Part number Description FRU CRU
110-113-724B Data Mover 2.8-GHz CPU module
with 24 GB of memory
303-113-700B Data Mover 2.8-GHz CPU module
without memory
0
123
0
123
0
1
23
0
1
23
0
1
23
0
1
23
0
1
23
0
1
23
0
12 3
0
1
23
5 3 21 4
CNS-001724
Table 12 Data Mover enclosure part numbers rear view
Part number label
location
(Figure 18) Part number Description FRU CRU
1 100-562-178 Data Mover enclosure (empty)
2 110-130-100B Management module (for a closer
view, see Figure 19 on page 23)

3 303-092-102B Four-port 8-Gb/s Fibre Channel (FC)
I/O Module (for a closer view, see
Figure 20 on page 25)

4 303-122-100A Two-port 1-Gb/s copper plus
two-port 1-G/bs optical I/O Module
(for a closer view, see Figure 21 on
page 26)

