EMC VNX Series Parts Location Guide

Disk-array enclosure (DAE)
EMC VNX7500 Parts Location Guide 43

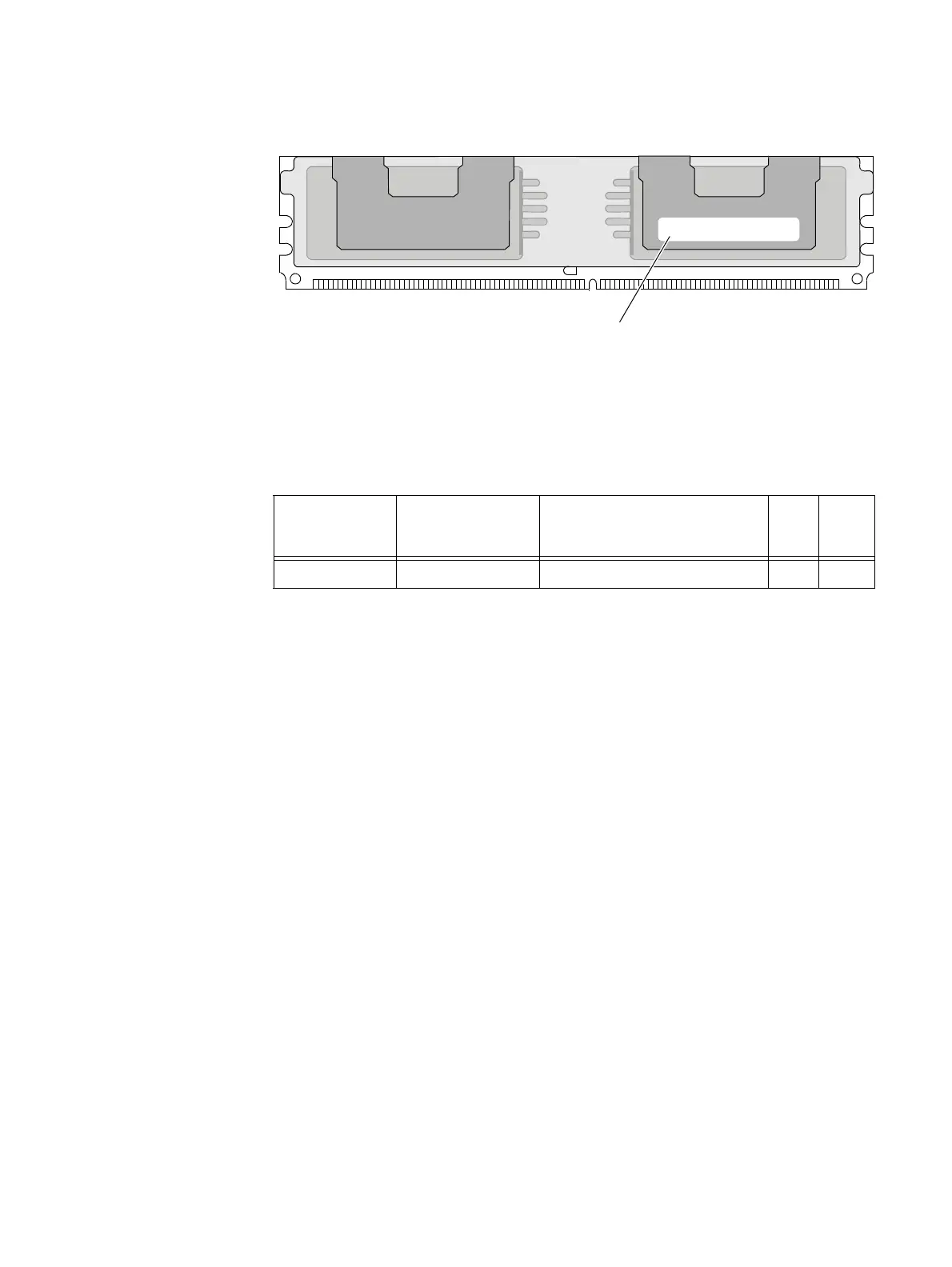

Figure 35 shows the Data Mover DIMM part number label location.
Figure 35 Example of the VNX7500 platform Data Mover DIMM part number location
Table 28 lists the Data Mover DIMM part number label location, part number, description,
and whether it is a FRU or CRU.
Disk-array enclosure (DAE)
The expansion disk-array enclosures (DAEs) have part numbers visible on both the front
and rear.
Front view
The DAE has three types of disk drive carriers:
• 3U, 15 (3.5-inch) disk drive carrier
• 2U, 25 (2.5-inch) disk drive carrier
• 4U, 60 (2.5- or 3.5-inch) disk drive carrier
P/N : 100-562-xxx
Part Number (P/N) label CNS-001540
Rev : A01
ÊA01.Š
Ê100-562-264vŠ
Table 28 VNX7500 platform Data Mover CPU DIMM part numbers
Part number label
location
(Figure 35) Part number Description FRU CRU
100-562-866 4-GB DDR3 DIMMs 

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
