Attaching storage processors to the network
Before you begin
Ensure that the storage processors and the Windows host from which you initialize the
storage system share the same subnet on your public LAN.
Procedure
1. Locate your two Ethernet cables.
2. Connect your public LAN using a CAT 5e or better (customer-supplied) Ethernet cable
to the RJ45 port on SP A identified as . See cable 1 in Figure 7 on page 26.
3. Connect your public LAN using a CAT 5e or better (customer-supplied) Ethernet cable
to the RJ45 port on SP B identified as
. See cable 2 in Figure 7 on page 26.

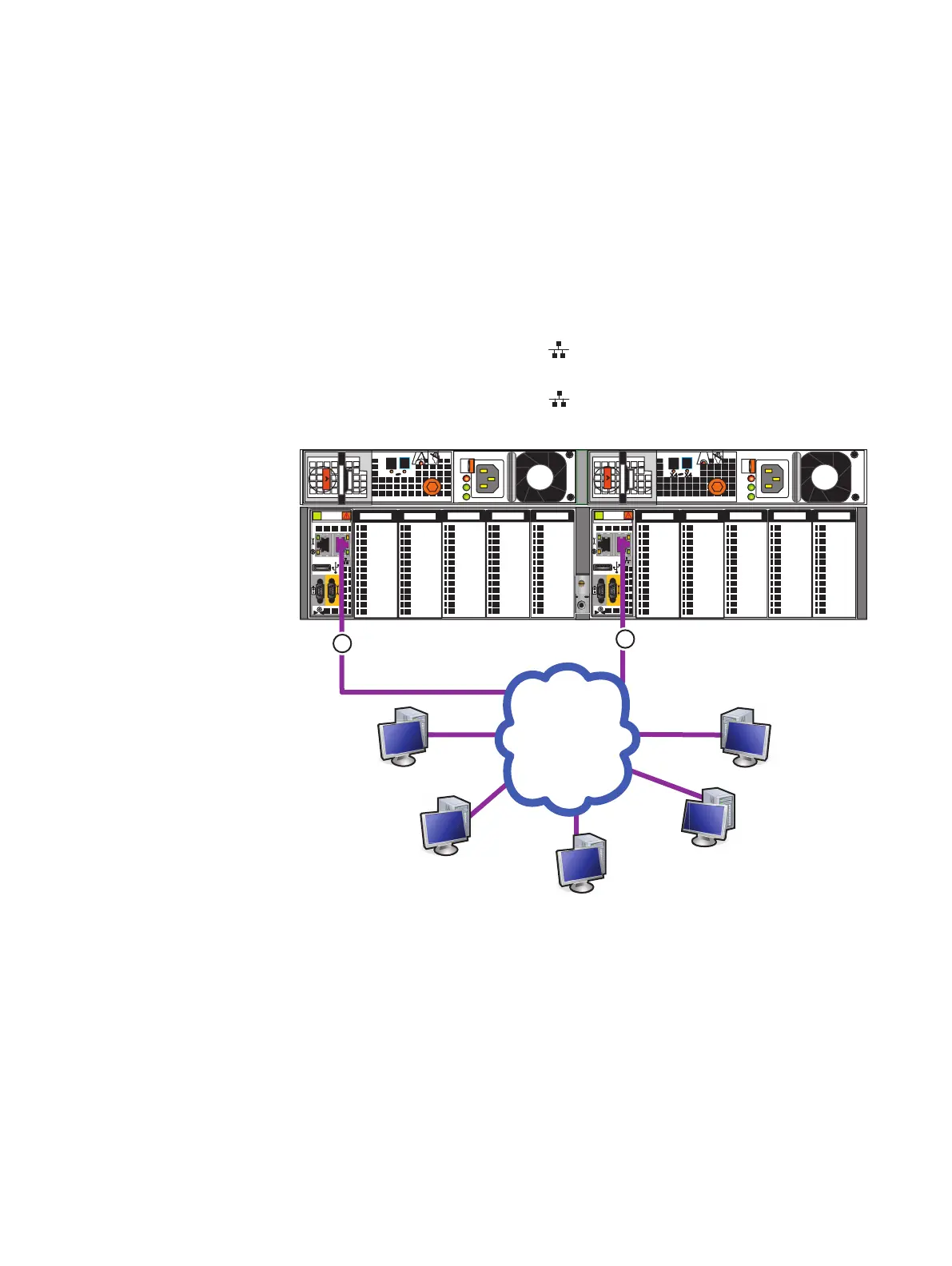

Figure 7 Attaching the SPs to the network
B
A
AC
DC
!
1
0
1
0
X4
AC
DC
!
X4
B
A
1
2
Cable your system
26 EMC VNX Series VNX5400 Block Installation Guide
