Disk-array enclosure types
DAEs are optional components that add extra storage.
If DAEs are used, the DAEs should be installed immediately above the last installed
system component in the cabinet. The arrangement of the DAEs in a cabinet may depend
upon a number of factors. The hardware information guide for your system provides
additional information on DAE assembling and arrangement.
Note
The 4U 60 drive DAE and the 3U 120 drive DAE are not included here. They require a deep
rack and a Services engagement.
2U, 25 2.5" drive DAE
Figure 10 on page 32 shows the 2U, 25 2.5" drive DAE type. This DAE type uses a 2U rail
kit for installation into the system cabinet.

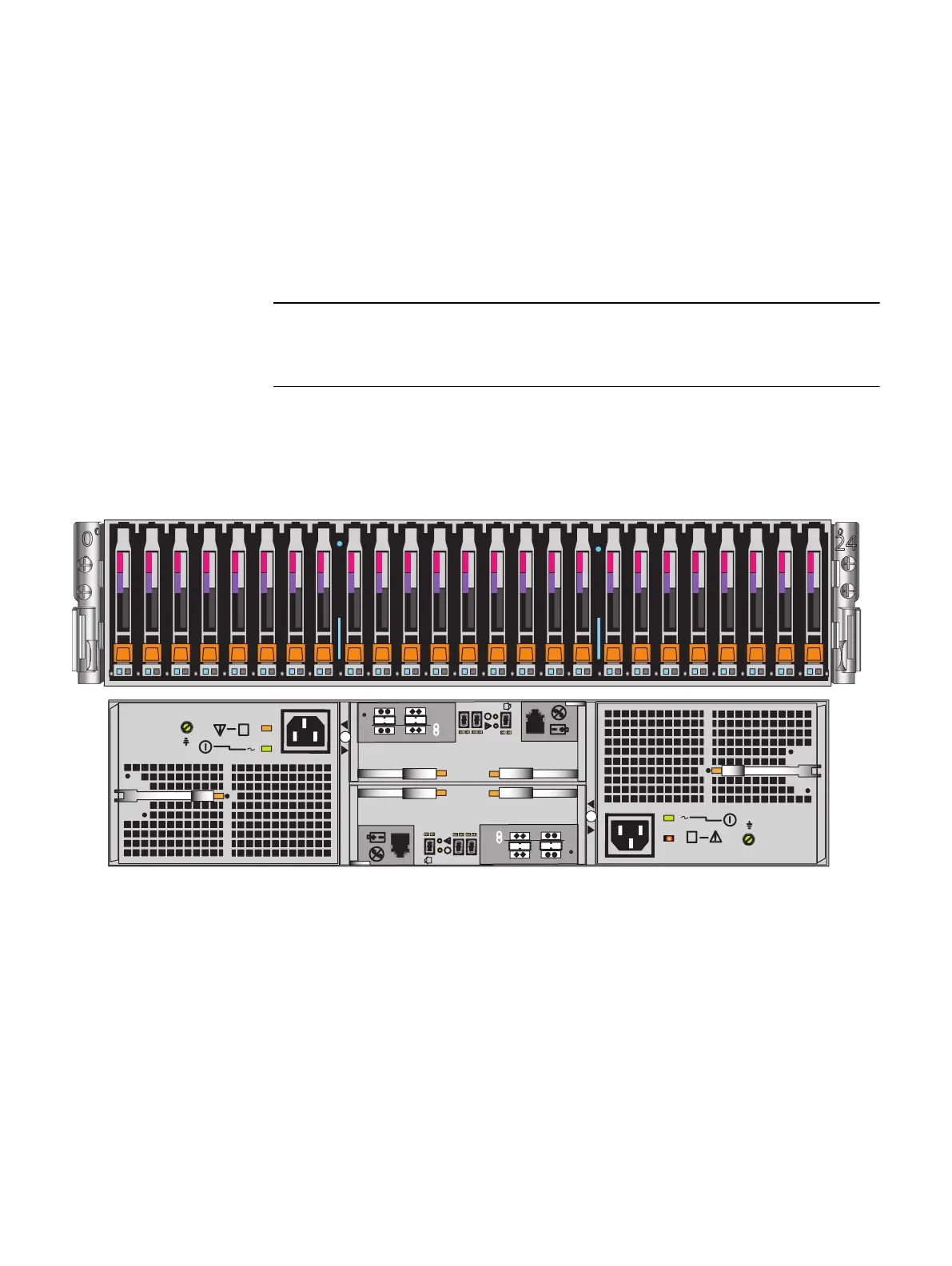

Figure 10 2U, 25 2.5” drive DAE
6 Gb SAS
X4
#
6 Gb SAS
X4
#
B
A
VNX-000227
3U, 15 3.5" drive DAE
Figure 11 on page 33 shows the 3U, 15 3.5" drive DAE type. This DAE type uses a 3U rail
kit for installation into the system cabinet.
Add additional storage
32 EMC VNX Series VNX5400 Block Installation Guide
