EMC2 EMC VNX Series User Manual

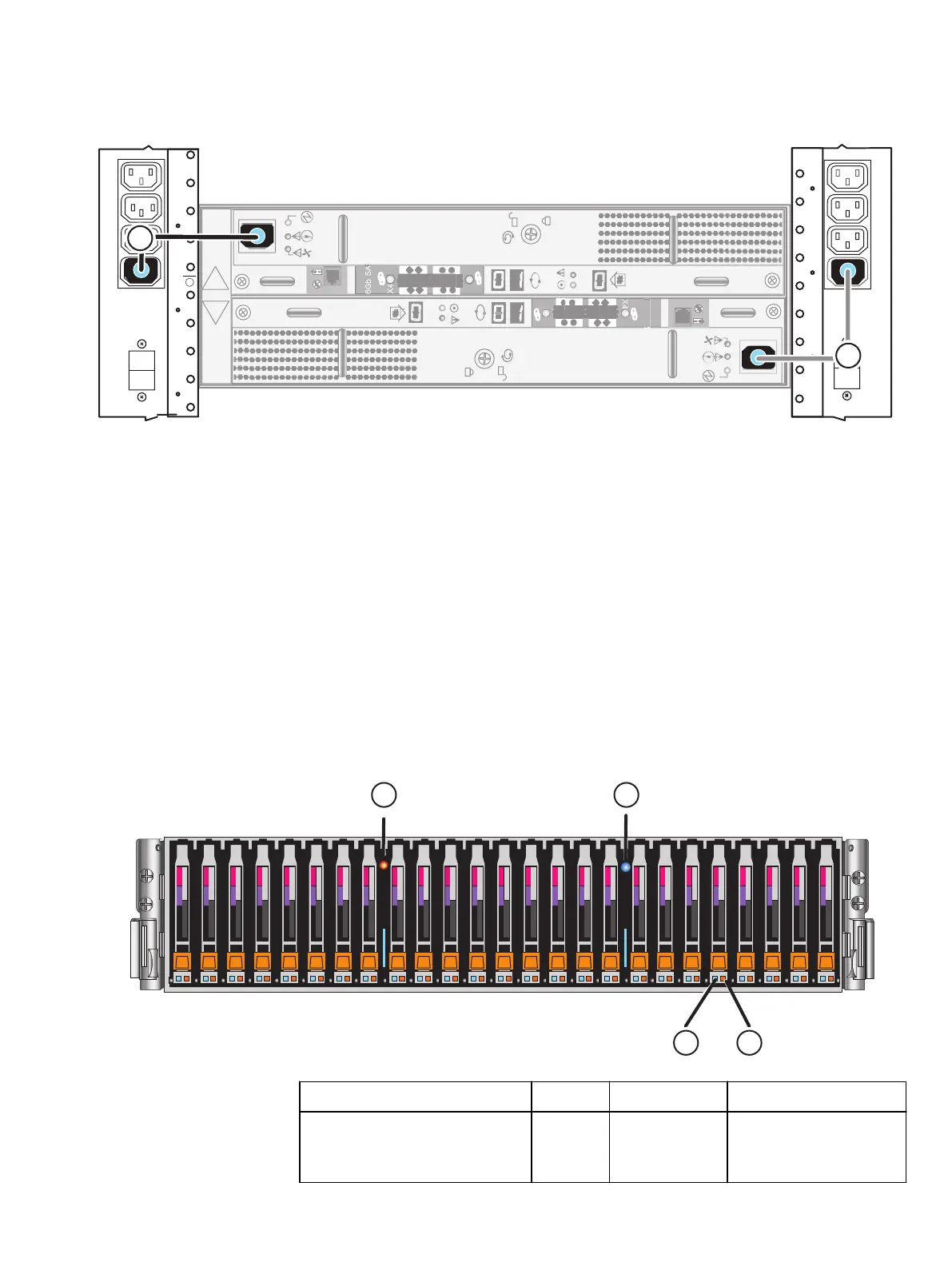

Figure 21 Power up a 3U DAE
A
B
6Gb SAS
6Gb SAS
6Gb SAS
6Gb SAS
6Gb SAS
1
2
Verify DAE status
Ensure that the optional DAEs powered up correctly using the physical indicators on each
enclosure. The hardware information guide for your system provides more information on
all the LEDs.
Verify 2U, 25 2.5” drive DAE status
Procedure
1. Verify that the status of the 2U DAE Power LED located on the front is solid blue and
the DAE Fault/Status is off as shown in Figure 22 on page 44.
2. If any fault LEDs are on, or if any power LEDs are flashing, contact your authorized
service provider.
Figure 22 2U, 25 2.5" drive DAE LEDs
1 2
3
4
LEDs Location State/Color Description
DAE Fault/Status 1 Off
On/Amber
OK
Fault has occurred
Add additional storage
44 EMC VNX Series VNX5400 Block Installation Guide
