Emerson Bettis TEC2 - Figure 3-16 Futronic - 3 Wire Analog Control with External Power Supply; Figure 3-17 Futronic - 3 Wire Analog Control with Internal Power Supply

102 pages

Save Page as PDF

To Next Page

To Previous Page

Installation and Operation Manual

E2K-405-0218 Rev. 2

February 2018

Section 3: Installation

Installation

Open

Internal Power Supply

3-Wire

Common 0v

Toggle

Internal

Power

Supply

AIN#1

4-20mA Position

Set Point

Earth Ground

24VDC

(-)

(+)

Open

18-150VDC

20-250VAC

External Power Supply

3-Wire

Common 0v

Toggle

External

Power

Supply

AIN#1

4-20mA Position

Set Point

Earth Ground

External 24VDC Input

(+)

(-)

(+)

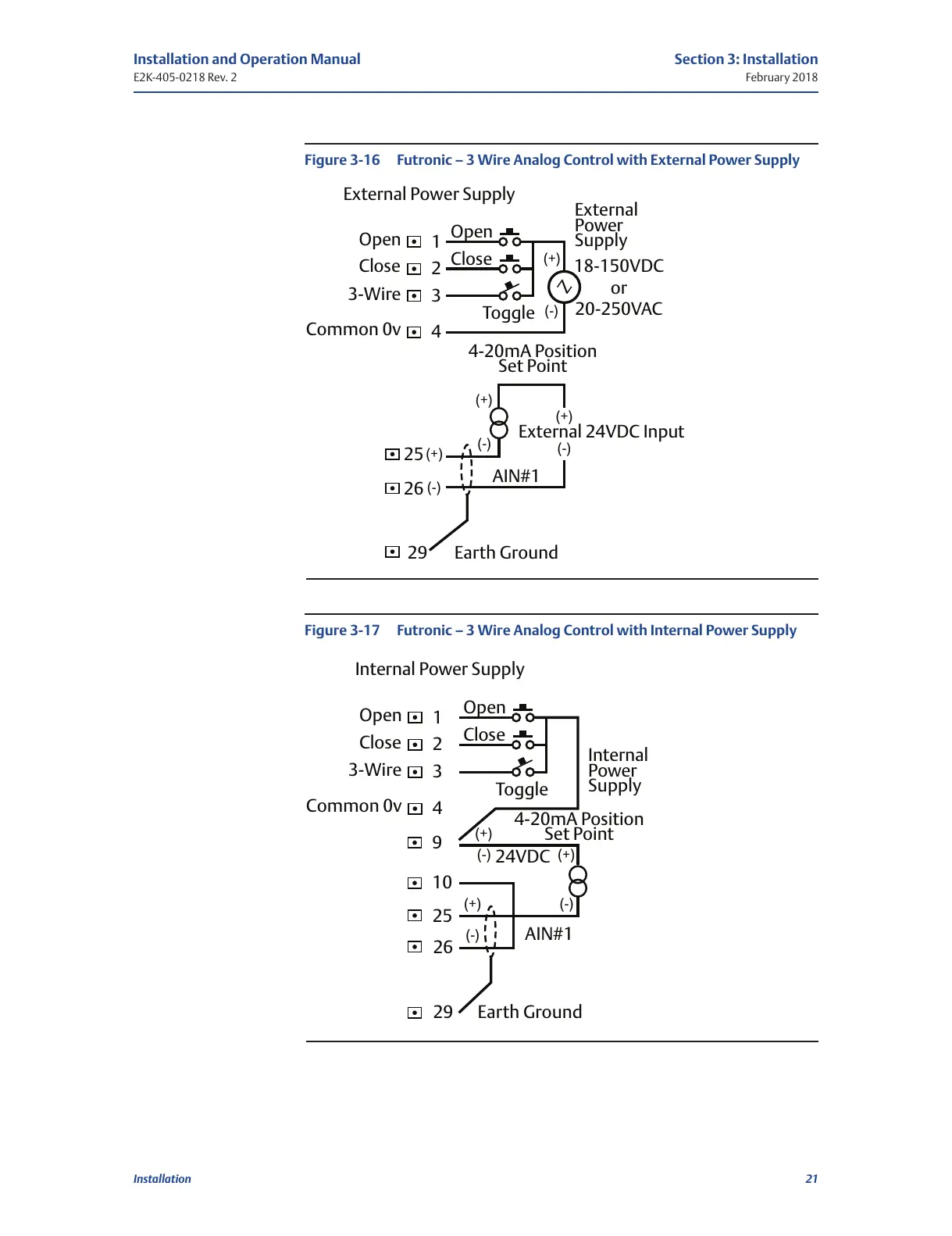

Figure 3-16 Futronic – 3 Wire Analog Control with External Power Supply

Figure 3-17 Futronic – 3 Wire Analog Control with Internal Power Supply
