Emerson Bettis TEC2 - Figure 5-1 Setup

Installation and Operation Manual
E2K-405-0218 Rev. 2 February 2018
41
Section 5: Customizing Actuator Settings
Customizing Actuator Settings

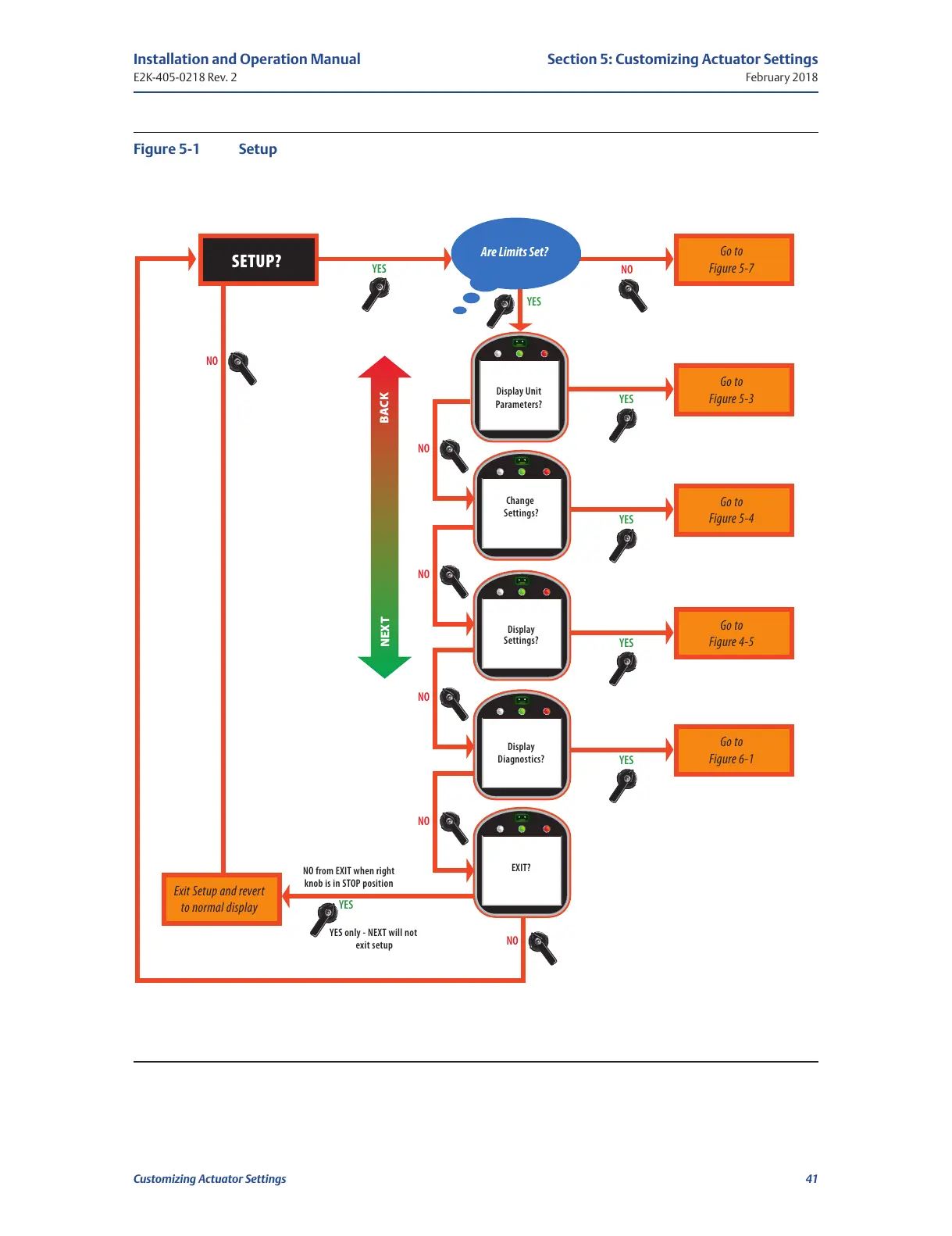

Figure 5-1 Setup
Figure 5-1 Setup
SETUP?
Go to
Figure 5-7
YES
YES
Display Unit
Parameters?
Change
Settings?
Display
Settings?
Display
Diagnostics?
NO from EXIT when right
knob is in STOP position
YES only - NEXT will not
exit setup
EXIT?
NO
NO
NO
Go to
Figure 5-3
YES
Go to
Figure 5-4
YES
YES
Go to
Figure 4-5
YES
YES
Go to
Figure 6-1
Exit Setup and revert
to normal display
NO
NO
NO
NO
BACK
NEXT
Are Limits Set?
