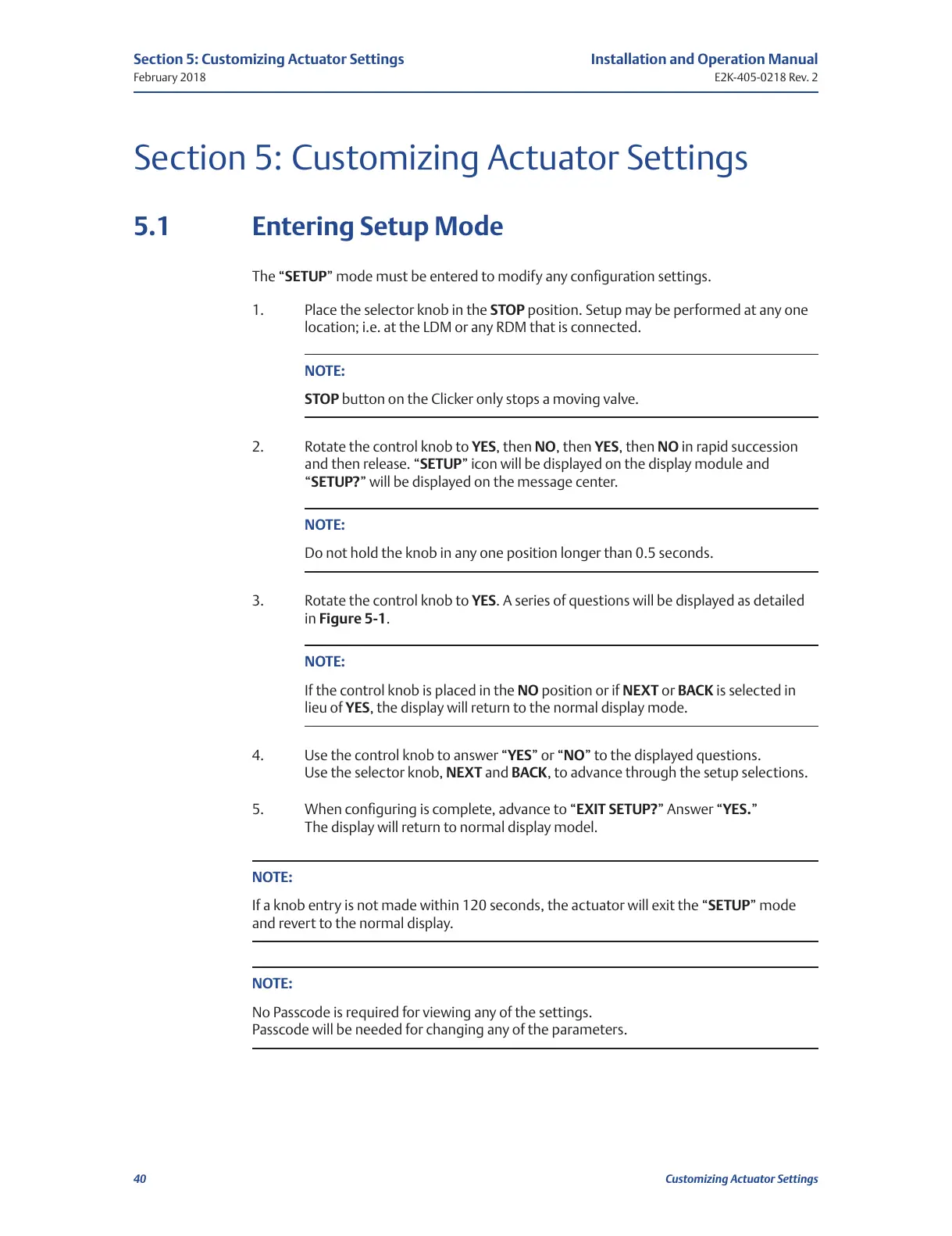

Section 5: Customizing Actuator Settings
Customizing Actuator Settings
Section 5: Customizing Actuator Settings
5.1 Entering Setup Mode
The “SETUP” mode must be entered to modify any conguration settings.
1. Place the selector knob in the STOP position. Setup may be performed at any one
location; i.e. at the LDM or any RDM that is connected.
NOTE:
STOP button on the Clicker only stops a moving valve.
2. Rotate the control knob to YES, then NO, then YES, then NO in rapid succession
and then release. “SETUP” icon will be displayed on the display module and
“SETUP?” will be displayed on the message center.
NOTE:
Do not hold the knob in any one position longer than 0.5 seconds.
3. Rotate the control knob to YES. A series of questions will be displayed as detailed
in Figure 5-1.
NOTE:
If the control knob is placed in the NO position or if NEXT or BACK is selected in
lieu of YES, the display will return to the normal display mode.
4. Use the control knob to answer “YES” or “NO” to the displayed questions.
Use the selector knob, NEXT and BACK, to advance through the setup selections.
5. When conguring is complete, advance to “EXIT SETUP?” Answer “YES.”
The display will return to normal display model.
NOTE:
If a knob entry is not made within 120 seconds, the actuator will exit the “SETUP” mode
and revert to the normal display.
NOTE:
No Passcode is required for viewing any of the settings.
Passcode will be needed for changing any of the parameters.
