February 2018
Installation and Operation Manual
E2K-405-0218 Rev. 2
50
Section 5: Customizing Actuator Settings
Customizing Actuator Settings
5.5.3 Set Valve Travel Limits
1. If the close limit is acceptable, answer “YES.” If not rotate the selector
knob to LOCAL. Close valve to desired limit, rotate selector knob to STOP,
and answer YES.
2. If the open limit is acceptable, answer “YES.” If not rotate the selector
knob to LOCAL. Open valve to desired limit, rotate selector knob to STOP,
and answer YES.
See Figures 5-7 and 5-8.

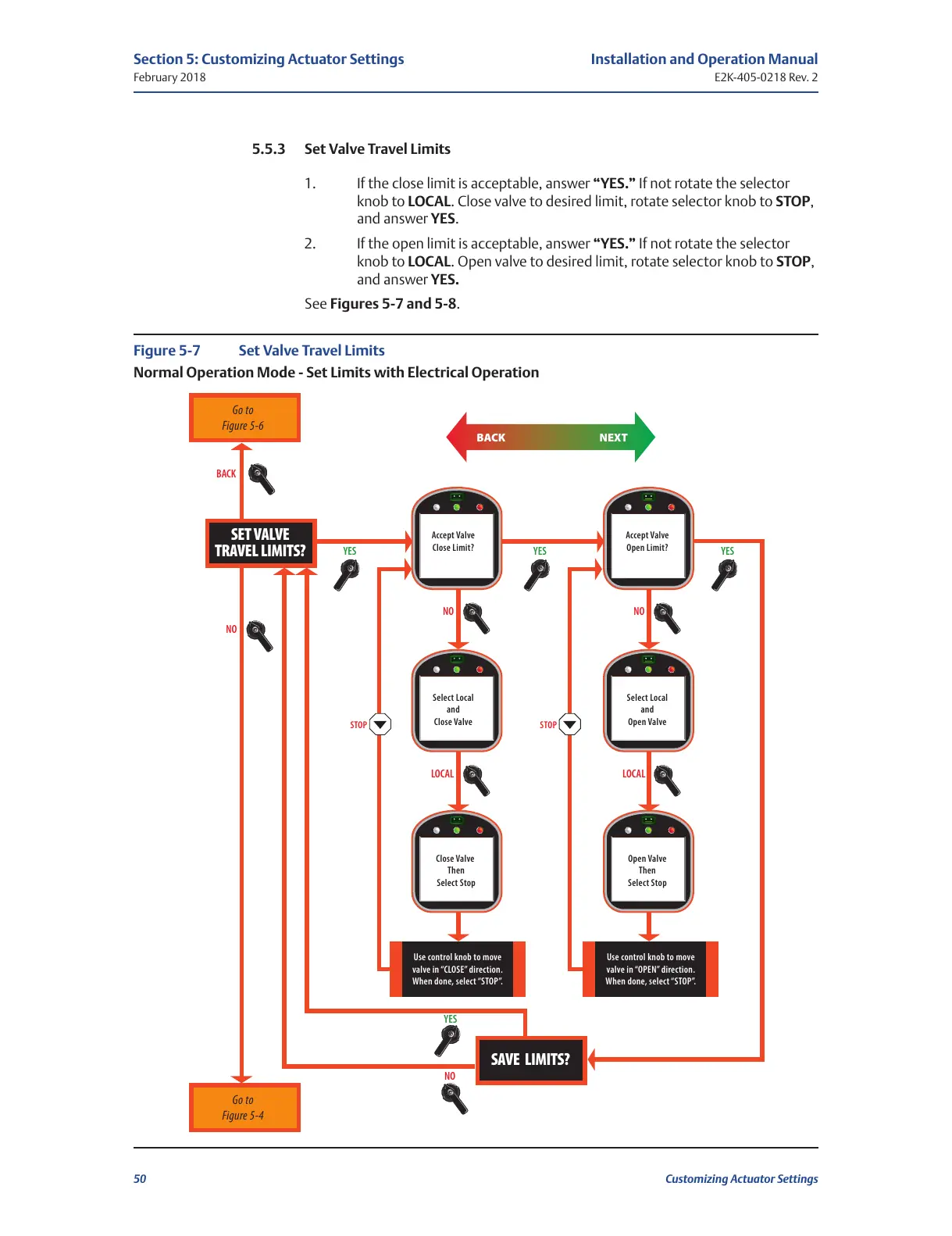

Figure 5-7 Set Valve Travel Limits
Normal Operation Mode - Set Limits with Electrical Operation
Figure 5-7 Normal Operation Mode - Set Limits With Electrical Operation
Go to
Figure 5-6
Go to
Figure 5-4
YES YES YES
YES
Accept Valve
Close Limit?
Accept Valve
Open Limit?
Use control knob to move
valve in “CLOSE” direction.
When done, select “STOP”.
Use control knob to move
valve in “OPEN” direction.
When done, select “STOP”.
NO
NO
NO
BACK NEXT
NO
Select Local
and
Close Valve
Select Local
and
Open Valve
LOCAL LOCAL
Close Valve
Then
Select Stop
Open Valve
Then
Select Stop
BACK
SET VALVE
TRAVEL LIMITS?
SAVE LIMITS?
STOPSTOP
