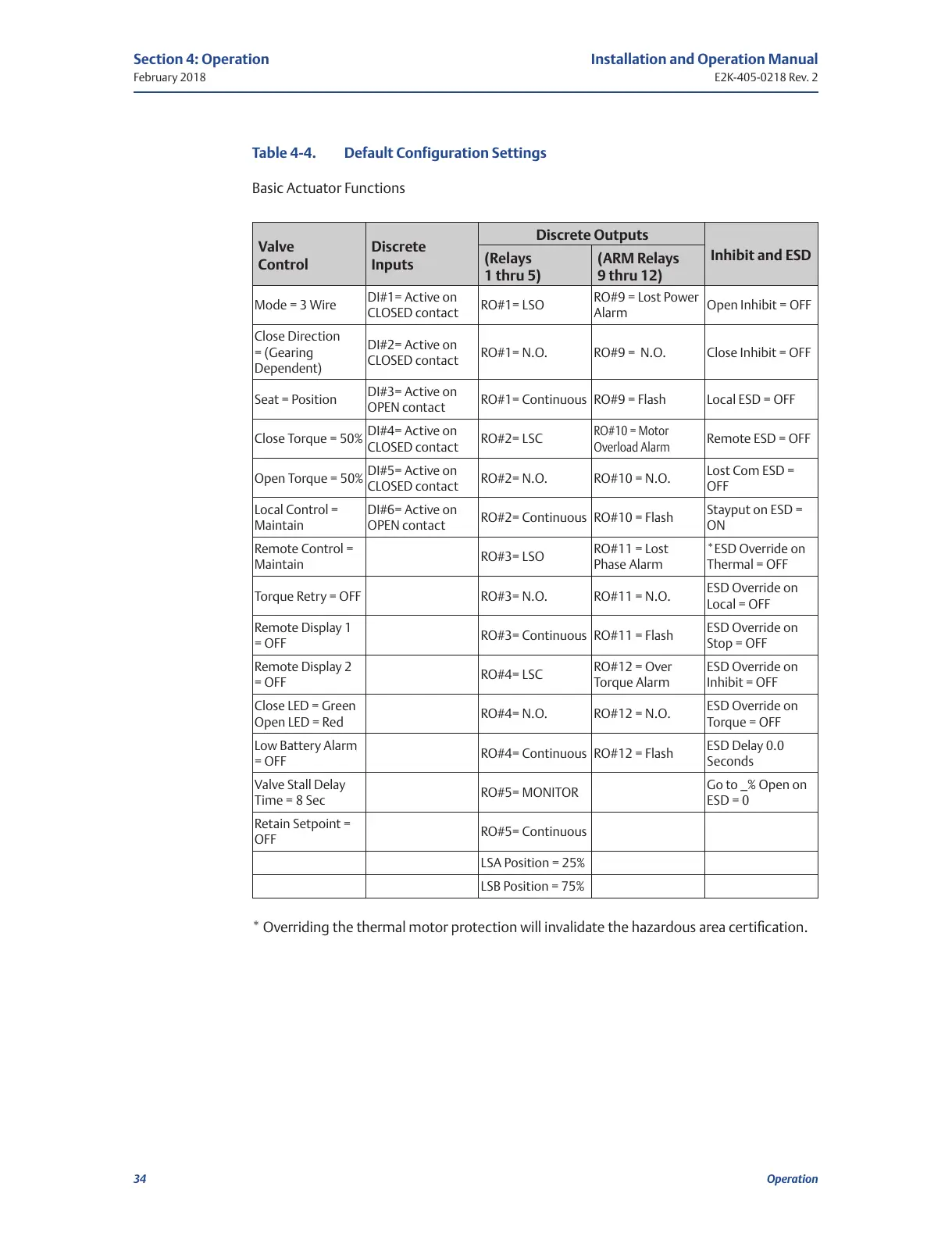

Table 4-4. Default Configuration Settings
Basic Actuator Functions
Valve
Control
Discrete
Inputs
Discrete Outputs
Inhibit and ESD
(Relays
1 thru 5)
(ARM Relays
9 thru 12)
Mode = 3 Wire
DI#1= Active on
CLOSED contact
RO#1= LSO
RO#9 = Lost Power
Alarm
Open Inhibit = OFF
Close Direction
= (Gearing
Dependent)
DI#2= Active on
CLOSED contact
RO#1= N.O. RO#9 = N.O. Close Inhibit = OFF
Seat = Position
DI#3= Active on
OPEN contact
RO#1= Continuous RO#9 = Flash Local ESD = OFF
Close Torque = 50%
DI#4= Active on
CLOSED contact
RO#2= LSC
RO#10 = Motor
Overload Alarm
Remote ESD = OFF
Open Torque = 50%
DI#5= Active on
CLOSED contact
RO#2= N.O. RO#10 = N.O.
Lost Com ESD =
OFF
Local Control =
Maintain
DI#6= Active on
OPEN contact
RO#2= Continuous RO#10 = Flash
Stayput on ESD =
ON
Remote Control =
Maintain
RO#3= LSO
RO#11 = Lost
Phase Alarm
*ESD Override on
Thermal = OFF
Torque Retry = OFF RO#3= N.O. RO#11 = N.O.
ESD Override on
Local = OFF
Remote Display 1
= OFF
RO#3= Continuous RO#11 = Flash
ESD Override on
Stop = OFF
Remote Display 2
= OFF
RO#4= LSC
RO#12 = Over
Torque Alarm
ESD Override on
Inhibit = OFF
Close LED = Green
Open LED = Red
RO#4= N.O. RO#12 = N.O.
ESD Override on
Torque = OFF
Low Battery Alarm
= OFF
RO#4= Continuous RO#12 = Flash
ESD Delay 0.0
Seconds
Valve Stall Delay
Time = 8 Sec
RO#5= MONITOR
Go to _% Open on
ESD = 0
Retain Setpoint =
OFF
RO#5= Continuous
LSA Position = 25%
LSB Position = 75%
* Overriding the thermal motor protection will invalidate the hazardous area certication.
