Emerson Bettis TEC2 - Figure 5-11 Inhibit and ESD Setup

Installation and Operation Manual
E2K-405-0218 Rev. 2 February 2018
57
Section 5: Customizing Actuator Settings
Customizing Actuator Settings

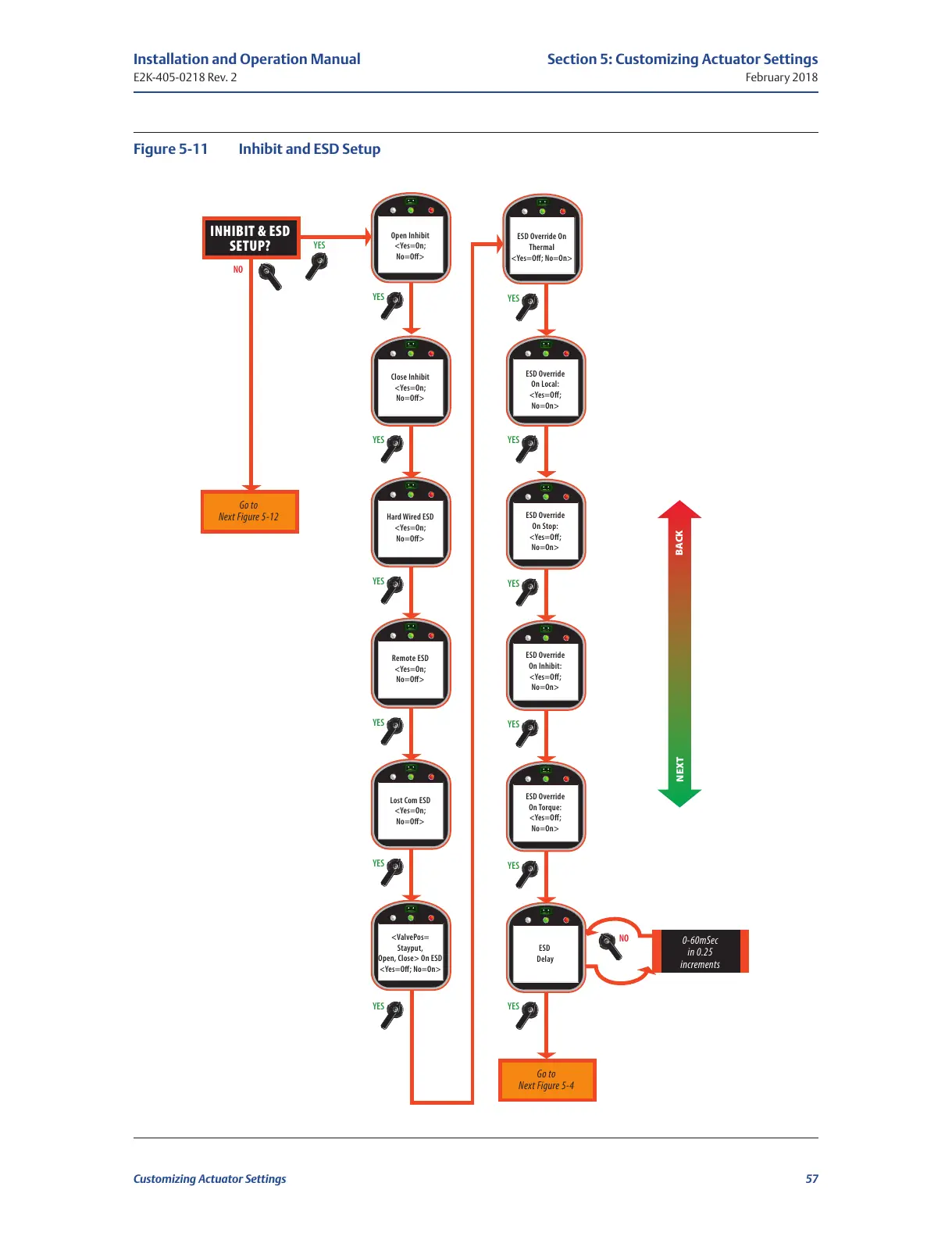

Figure 5-11 Inhibit and ESD Setup
YES
0-60mSec
in 0.25
increments
NO
YES
Figure 5-11 Inhibit & ESD Setup
YES
Go to
Next Figure 5-12
Go to
Next Figure 5-4
Open Inhibit
<Yes=On;
No=Off>
YES
YES
NO
YES
YES
YES
ESD Override
On Local:
<Yes=Off;
No=On>
YES
YES
YES
YES
YES
INHIBIT & ESD
SETUP?
BACK
NEXT
Close Inhibit
<Yes=On;
No=Off>
ESD Override
On Stop:
<Yes=Off;
No=On>
Hard Wired ESD
<Yes=On;
No=Off>
ESD Override
On Inhibit:
<Yes=Off;
No=On>
Remote ESD
<Yes=On;
No=Off>
ESD Override
On Torque:
<Yes=Off;
No=On>
Lost Com ESD
<Yes=On;
No=Off>
ESD Override On
Thermal
<Yes=Off; No=On>
ESD
Delay
<ValvePos=
Stayput,
Open, Close> On ESD
<Yes=Off; No=On>
