Emerson Bettis XTE3000 Maintenance Instruction

Installation, Operation and Maintenance Manual
MDE 257 Rev. 1
February 2022
35
Section 6: Terminal Board Types
Terminal Board Types
BASE Card
Strip to connect the Terminal board
adaptor (TBA) card or Ain/Aout card
6.1 Terminal Board Adaptor (TBA) Card
This is an optional module of the XTE3000 base card.
The "TERMINAL BOARD ADAPTOR" card is present as standard. The 5 dip-switches on the "TERMINAL
BOARD ADAPTOR" card must be placed in the "open" position. If the "Ain/Aout" optional module is
required, the "TERMINAL BOARD ADAPTOR" card is removed from base card and the "Ain/Aout" card is
mounted in the same position.

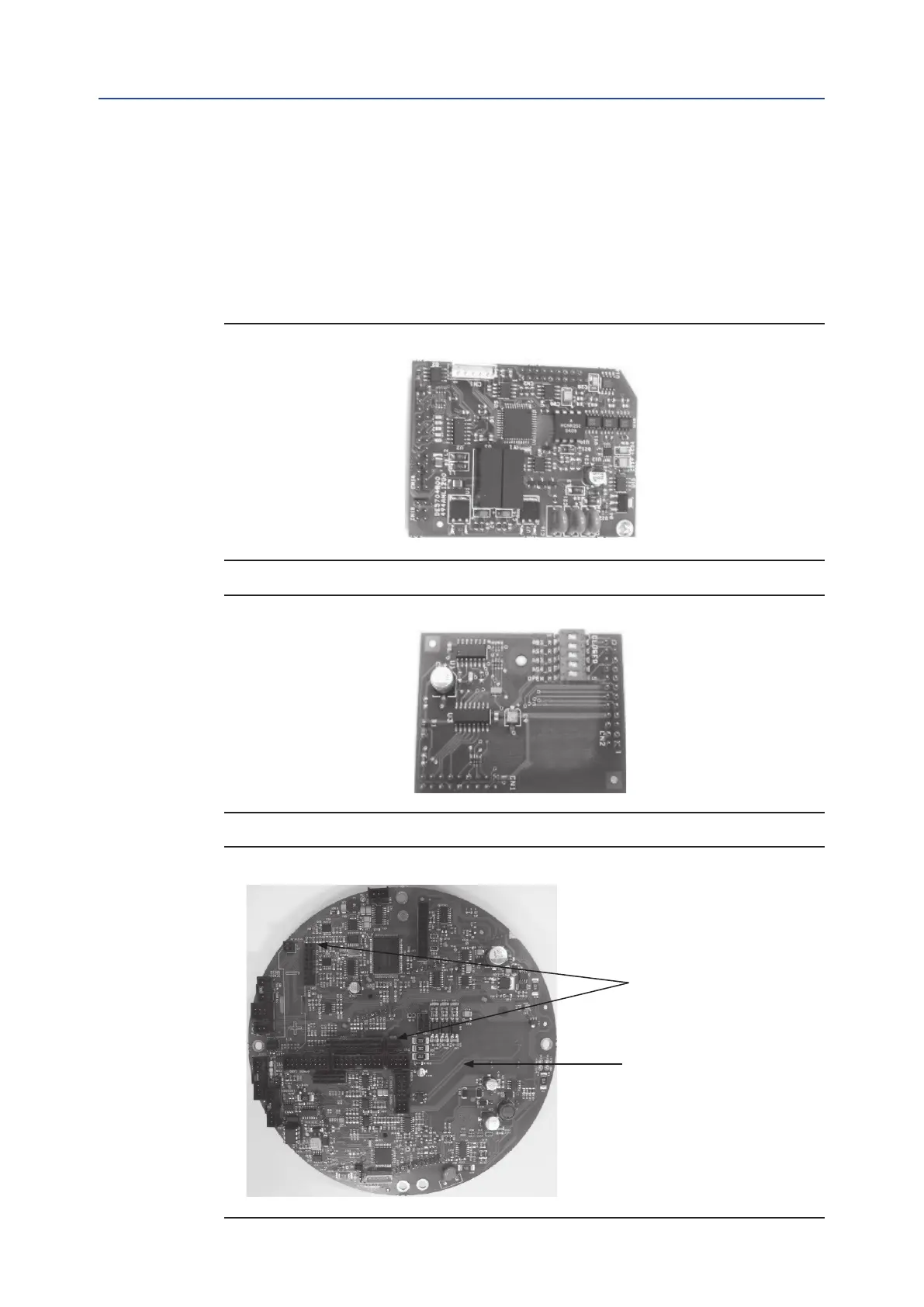

Figure 6 Ain/Aout card
Figure 7 Terminal Board Adaptor card
Figure 8
