February 2022
Installation, Operation and Maintenance Manual
MDE 257 Rev. 1
34
Section 6: Terminal Board Types
Terminal Board Types
Section 6: Terminal Board Types
The features of the XTE3000 terminal board are described in the the XTE3000 IOM. If the XTE3000
has a 4 - 20 mA analog input and output, the optional card "Ain/Aout" is plugged onto the base card in
place of the "TERMINAL BOARD ADAPTOR" card.
The following settings should be performed in the "RESTRICTED" menu routines:
• Term board: set to "I24 V4."
• Card Ain/Aout: set to "PRESENT" if the card "Ain/Aout" is plugged onto the base card,
or set to "ABSENT" if instead the "TERMINAL BOARD ADAPTOR" card is installed.
The 5 dip-switches on the TERMINAL BOARD ADAPTOR card should be set to "open" (OFF).

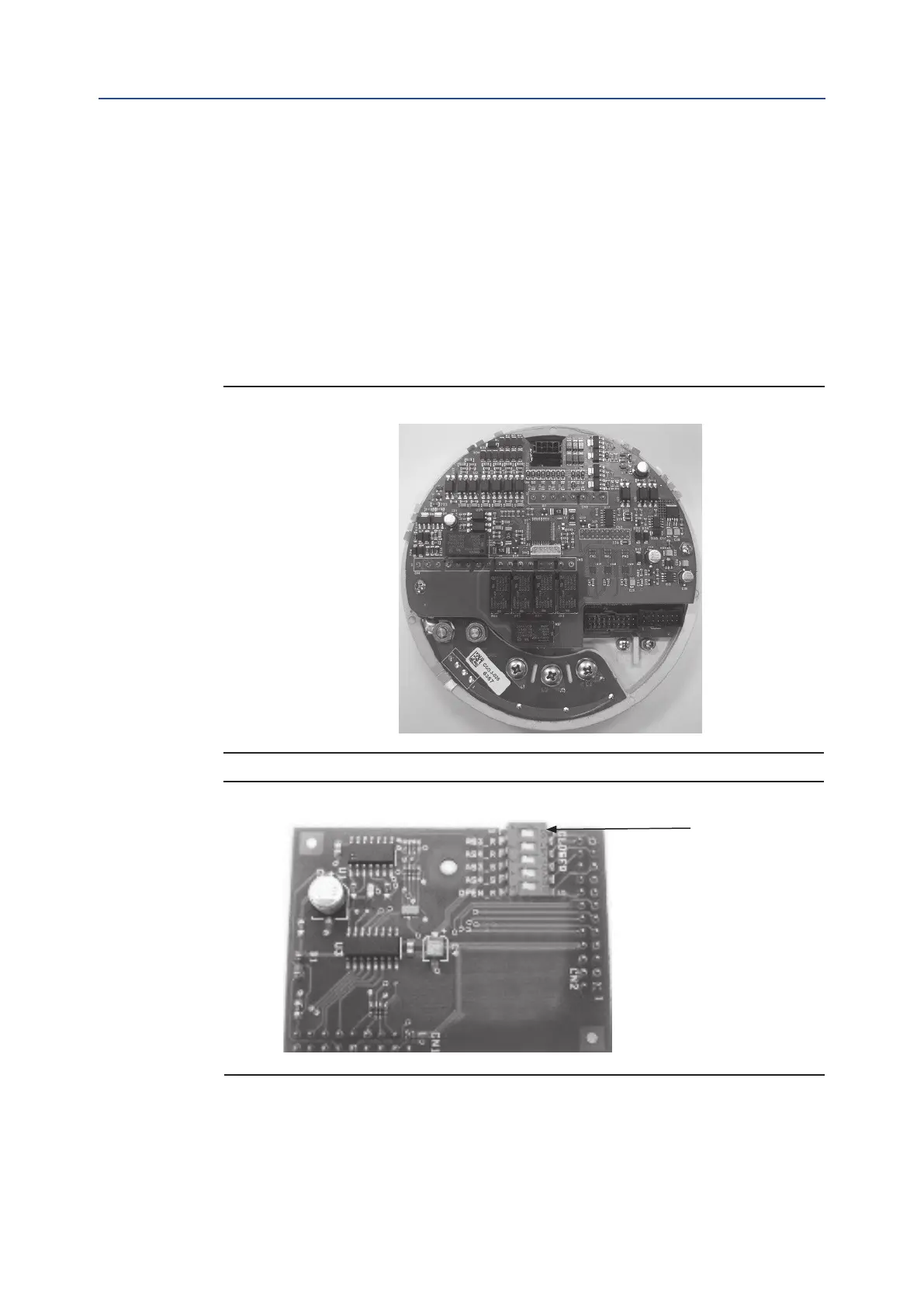

Figure 4 XTE3000 Terminal Board Cards
Figure 5
Dip-switches on the
Terminal Board Adaptor
(TBA) card
