Table 2-2: Maintenance (continued)
Daniel MeterLink utility Diagnostics Action(s)

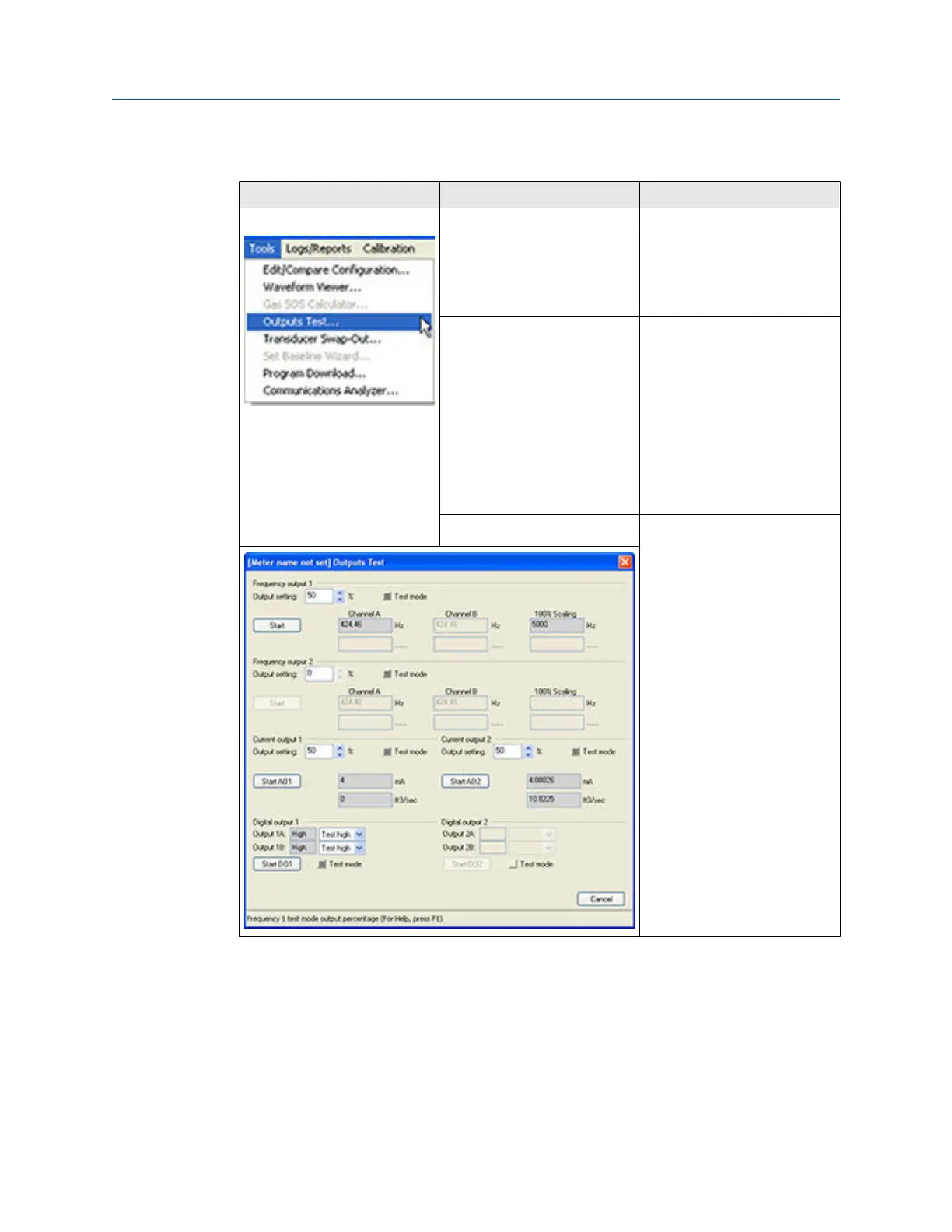

MeterLink Tools Menu • Frequency output • Run the Frequency Outputs
test
• If the output reads zero,
you may require a pull up
resistor 1.2kOHM, 0.5W.
• Analog outputs • Run Analog Outputs test
• Verify outputs are within
4mA-20mA range
— 0% = 4mA
— 25% = 8mA
— 50% = 12mA
— 75% = 16mA
— 100% = 20mA
• Digital outputs • Run the Digital Outputs
test.
• Digital Output Content is in
relation to frequency
validity and flow direction
configuration and polarity.
Maintenance and Troubleshooting manual Troubleshooting
P/N 3-9000-769 June 2019
