Table 3-3: T-200 transducer stalk assembly configuration and capsule setting
(continued)
Stalk assembly configuration Smart capsule setting
-06 1
-07 2
-08 3
-09 4
-10 5
-11 6
-12 7
-13 8

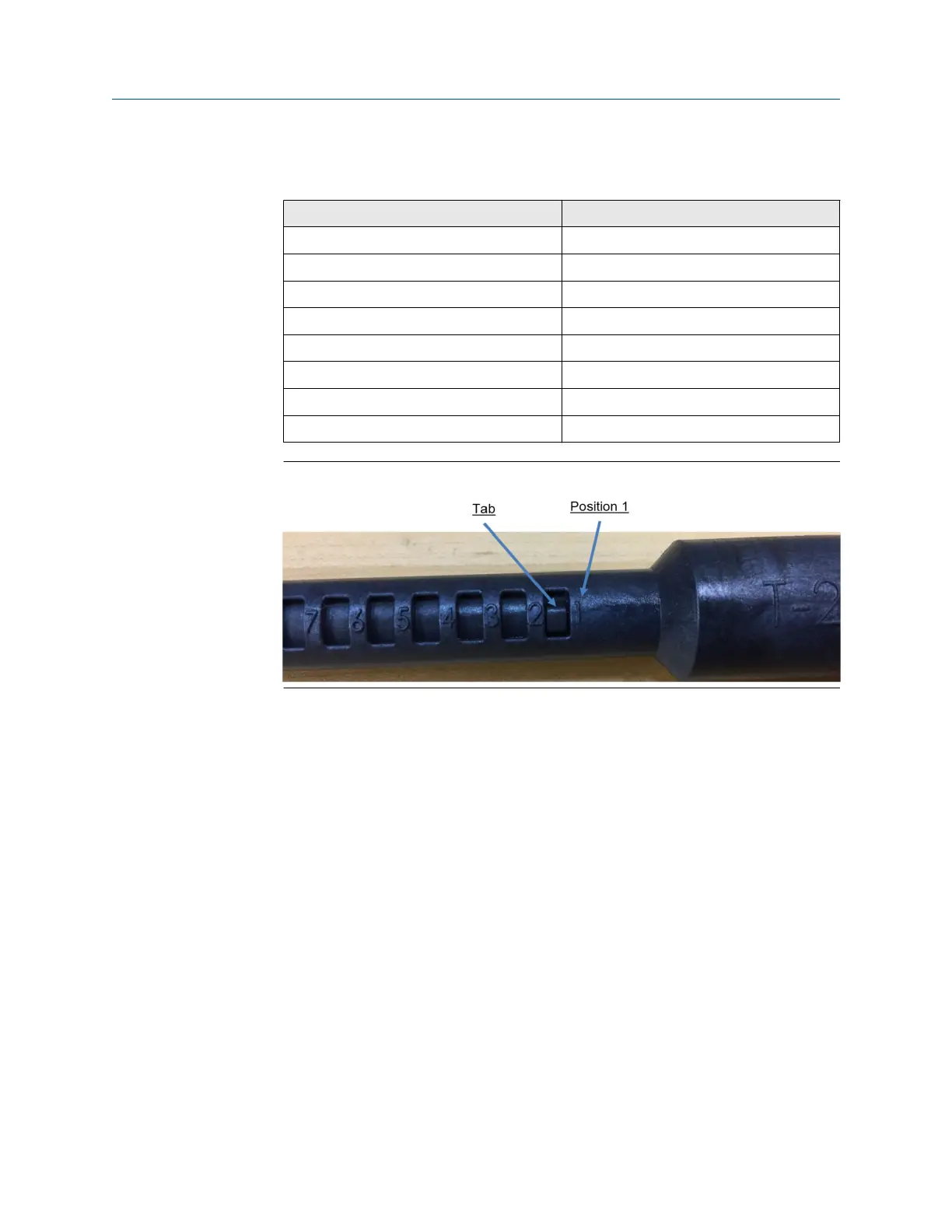

Figure 3-15: T-200 transducer capsule setting
