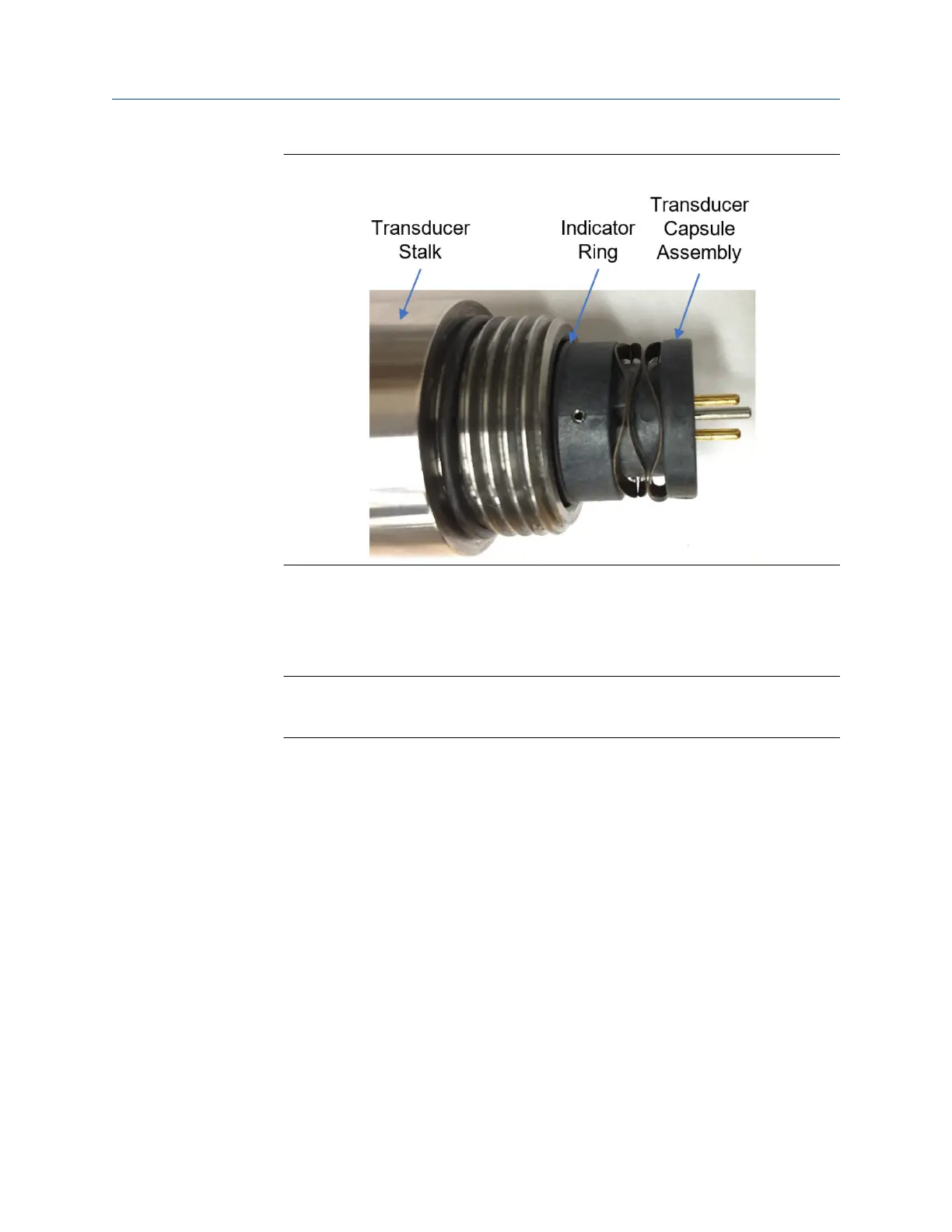

Figure 3-17: Length verification of T-200 transducer capsule assembly
8. Make sure that the indicator ring on the transducer capsule assembly is flush with
the end of the transducer stalk (see Figure 3-17) to ensure the capsule is set to the
correct length.
9. Screw the transducer retainer on the stalk and use a 1 1/8" wrench to bottom out.
Note
Do not torque down the transducer retainer to avoid damages to the anti-rotation
pins.
10. Connect the transducer chordset to the transducer retainer. The internal connector
of the transducer chordset is keyed and will only go on one way.
11. Secure the transducer cabling nut by turning clock wise. Ensure the cable nut
threads are correctly aligned
12. Repeat Step 1 through Step 11 for other transducer assemblies if their transducer
capsule assemblies were replaced.
13. Continue with Section 3.5.3 to use the Daniel MeterLink Transducer Swap-out
Wizard to update delta delay time.
