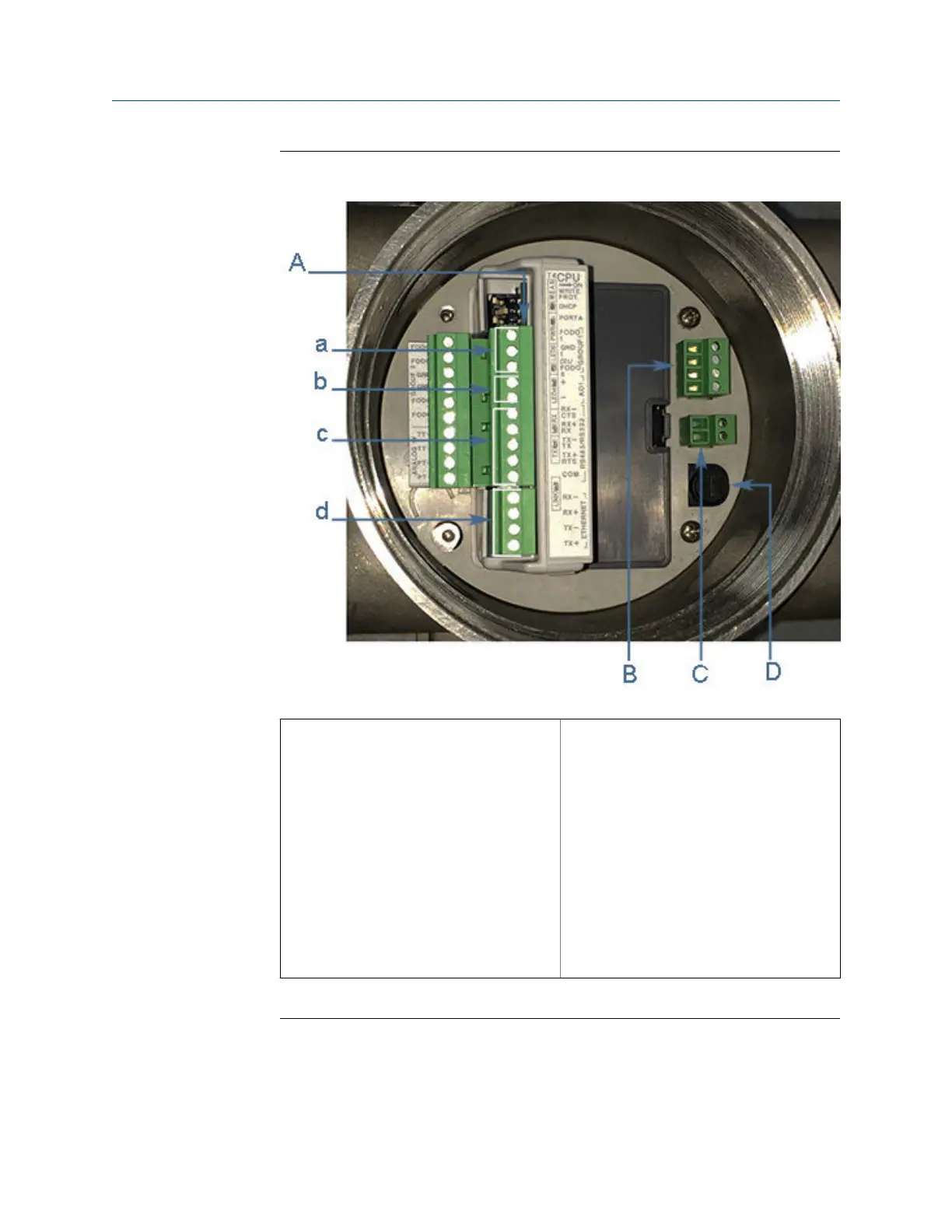

Transmitter electronics field wiring lower terminal block - Type 4
CPU Module
Figure 3-6:
A. Upper terminal block
a. FODO Group 1 connections
• FODO1
• GND1
• DI 1 / FODO6
b. AO1
• AO1+
• AO1-
c. Serial COMs (RS-323, RS-485)
• RS-232: RTS, TX, RX, CTS
• RS-485: TX+, TX-, RX+, RX- (4-wire Full Du-
plex)
• RS-485: TX+, TX- (2-wire Half Duplex)
d. Ethernet
• Ethernet (orange and white wire)
• Ethernet (orange wire)
• Ethernet (green and white wire)
• Ethernet (green wire)
B. 24V loop power (for sourcing 4-20mA in-
puts/outputs)
C. Power in (10.4VDC - 36VDC)
D. Fuse cover
Electrical installation
Installation manual 53
