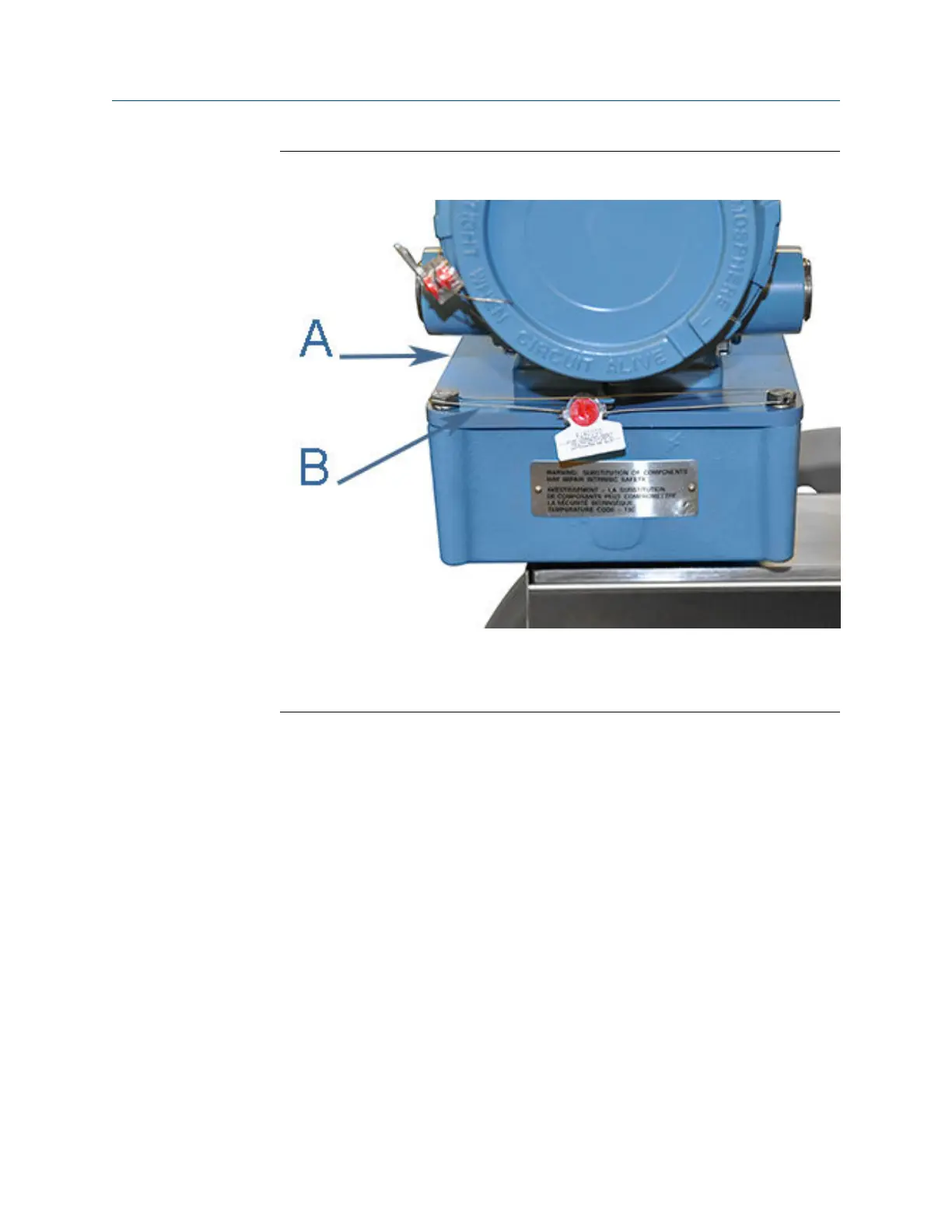

Base Enclosure wire seal installationFigure 3-24:
A. Base enclosure cover
B. Security wire seals
2. Position the wire to prevent counterclockwise rotation of the screws when the seal
wire is taut.
3. Feed the security wire beneath the Transmitter Electronics Enclosure and through
the adjacent socket head screw. Twist the wire, removing all slack and seal.
4. Cut wire ends to remove excess wire.
3.6.3
Transducer assembly security seal
The transducer assemblies can be protected from tampering by securing the shrouds over
the transducers with wire seals as follows.
Procedure
1. Locate the shroud pin on the meter body. This pin will hold the appropriate shroud
in place while the mating side is brought into place.
Electrical installation
Installation manual 81
