2.2 Meter components
Daniel 3410 Series Gas Ultrasonic Flow Meters are assembled, configured and tested at the
factory. The meter components include the transmitter electronics enclosure, the base
electronics enclosure and the meter body with transducer assemblies.
WARNING!
CONTENTS MAY BE UNDER PRESSURE
When the meter is under pressure, DO NOT attempt to remove or adjust the transducer holder.
Attempting to do so may release pressurized gases, resulting in serious injury or equipment
damage.
WARNING!
CONTENTS MAY BE HAZARDOUS
The meter must be fully depressurized and drained before attempting to remove the
transducer holder. If gas or fluid begins to leak from the transducer holder, stop immediately
and reinstall the holder.
Failure to comply may cause serious injury or equipment damage.

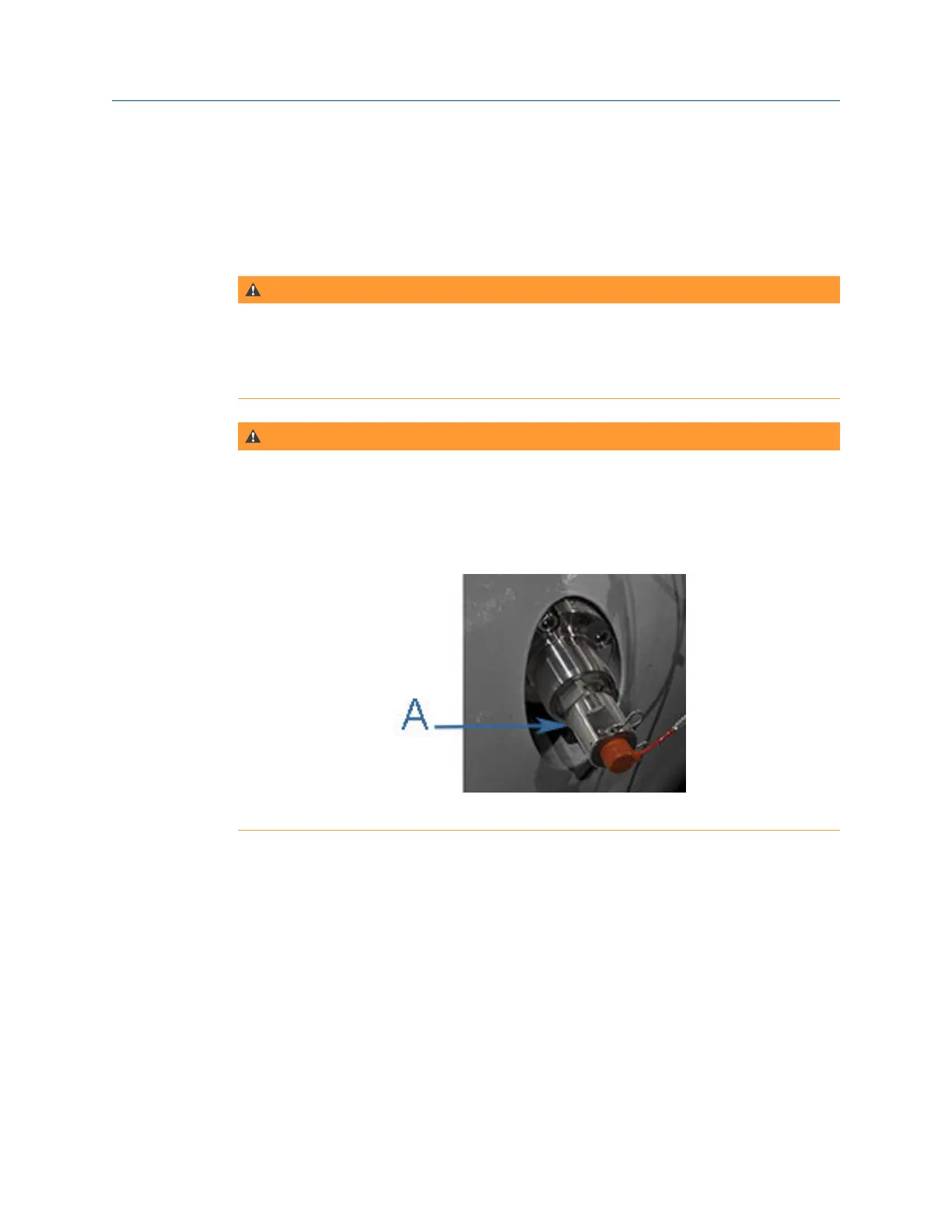

A. Transducer holder
Mechanical installation
Installation manual 25
