Emerson Daniel 3410 Series Installation Manual

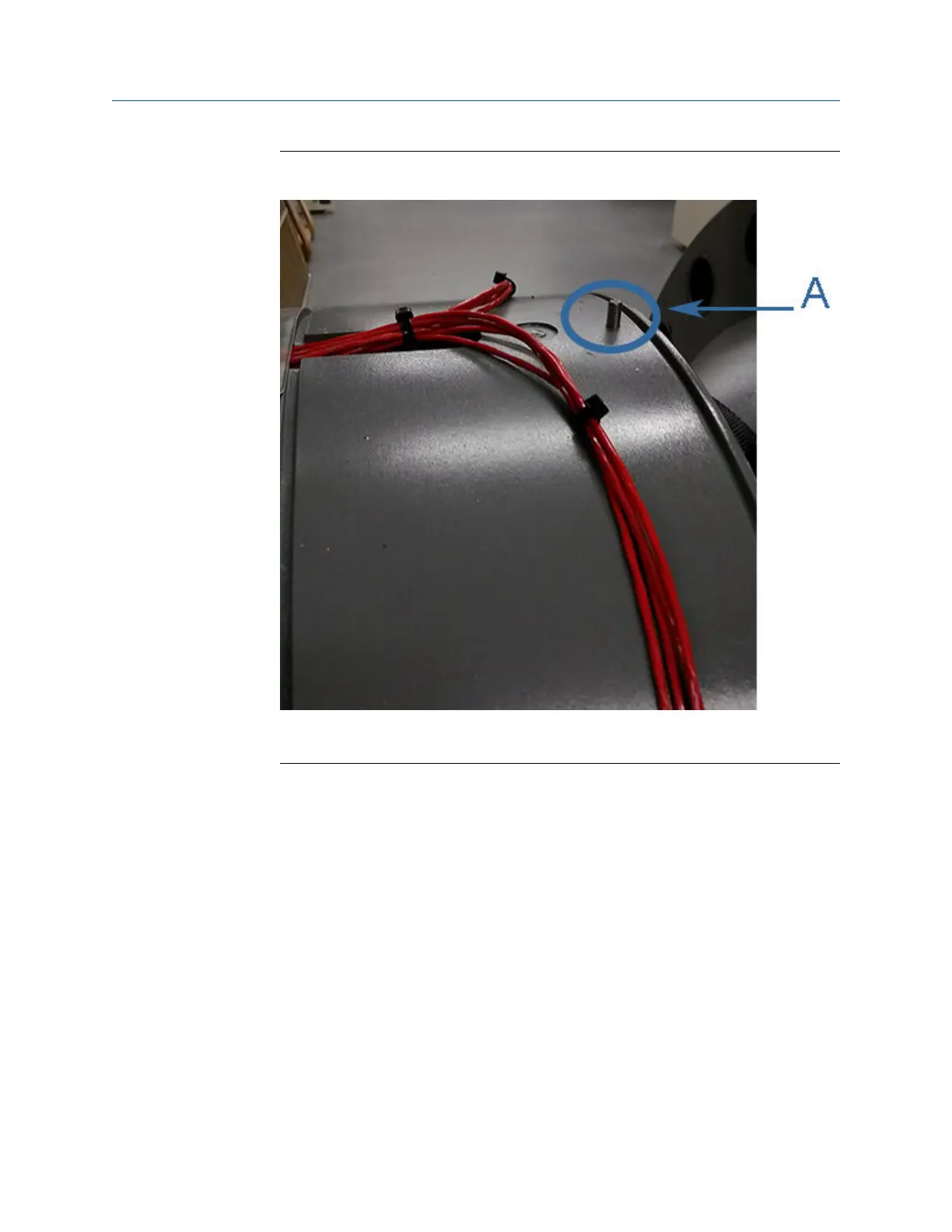

Latch pin and Shroud recessesFigure 3-25:
A. Shroud pin on the meter body
2. Hook the appropriate shroud over the pin, ensuring the transducer cabling is within
the shroud. Care needs to be taken not to pinch the cables between the shroud
recesses and shroud as the shroud is fitted into place.
Once the shroud is snugly seated in these recesses it will hang on the pin for ease of
attaching its mating pair.
Electrical installation
82 Gas Ultrasonic Flow Meter
