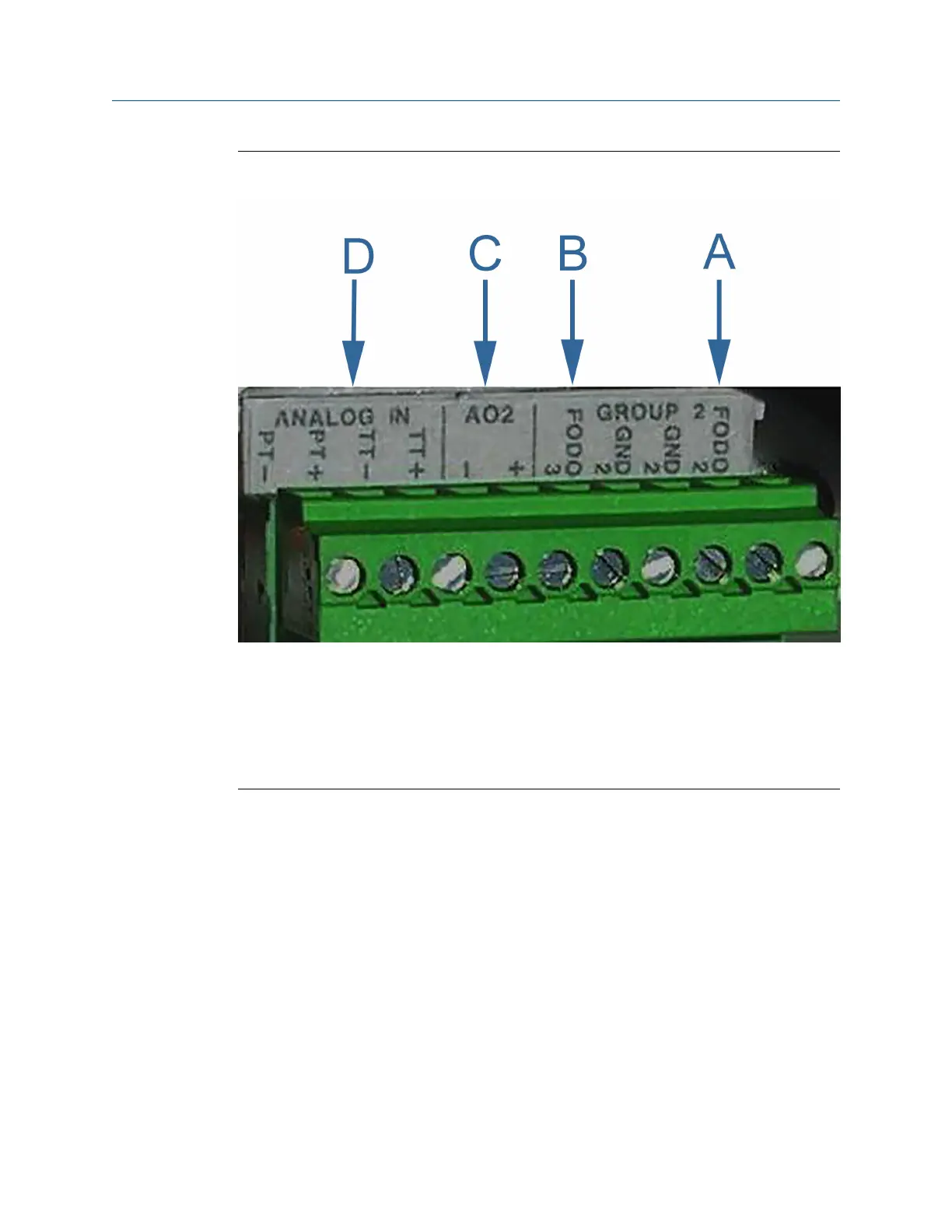

CPU Module I/O connectionsFigure 3-10:
A. Frequency/Digital Output 2
B. Frequency/Digital Output 3
C. Analog Output 2 - 4-20mA output
D. Analog Input - Temperature and pressure connections
Electrical installation
Installation manual 63
