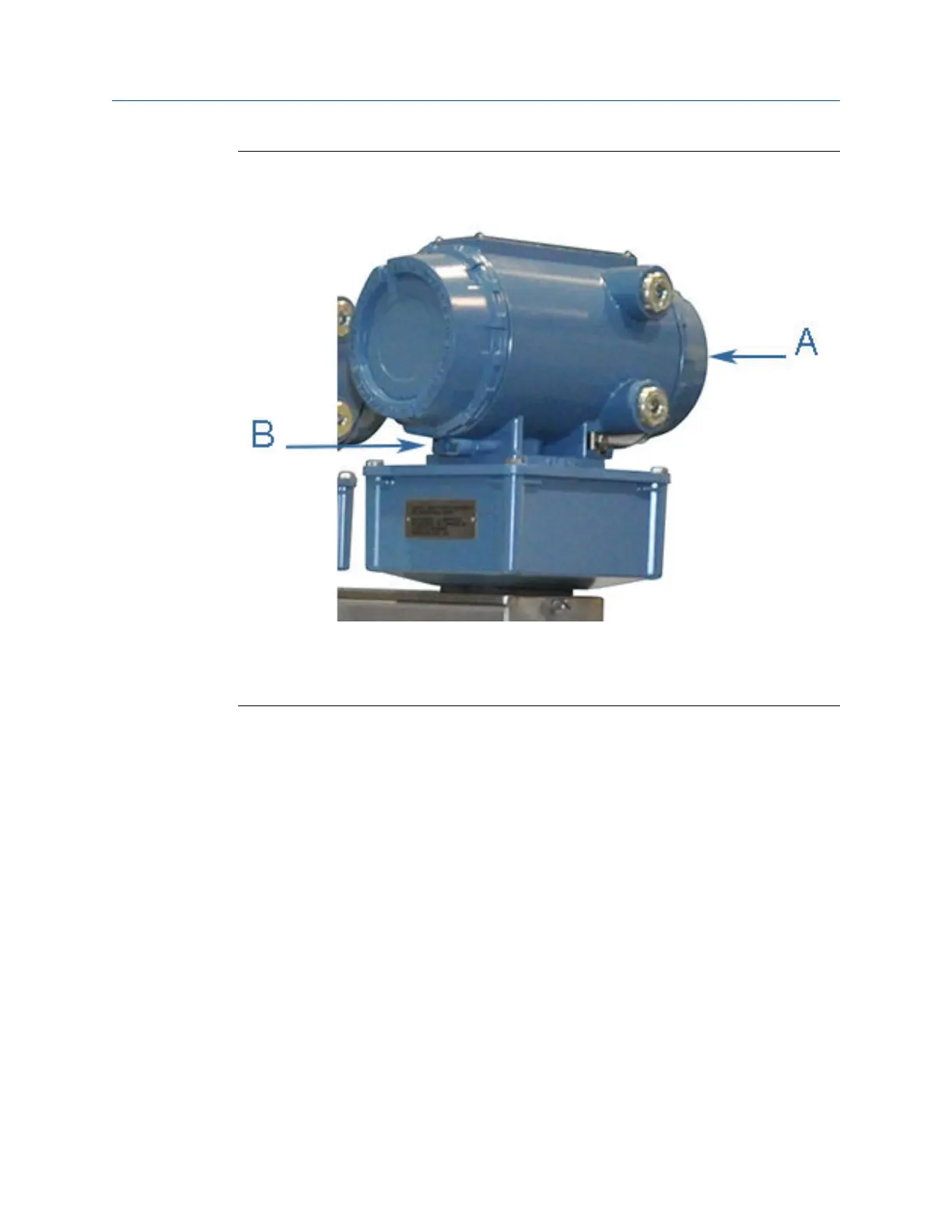

Transmitter electronics enclosure security latchFigure 3-22:
A. Transmitter electronics enclosure endcap.
B. Security latch
Procedure
1. Rotate the end caps clockwise fully closing and compressing the end cap seal. Install
the Security latch for each end cap using a 3mm Allen wrench.
2. Install the security seal wire into and through one of the two holes in the end cap.
a. Choose holes that minimize counterclockwise rotation of the end cap when the
security wire is taut (maximum wire diameter .078 inch; 2.0mm).
Electrical installation
Installation manual 79
