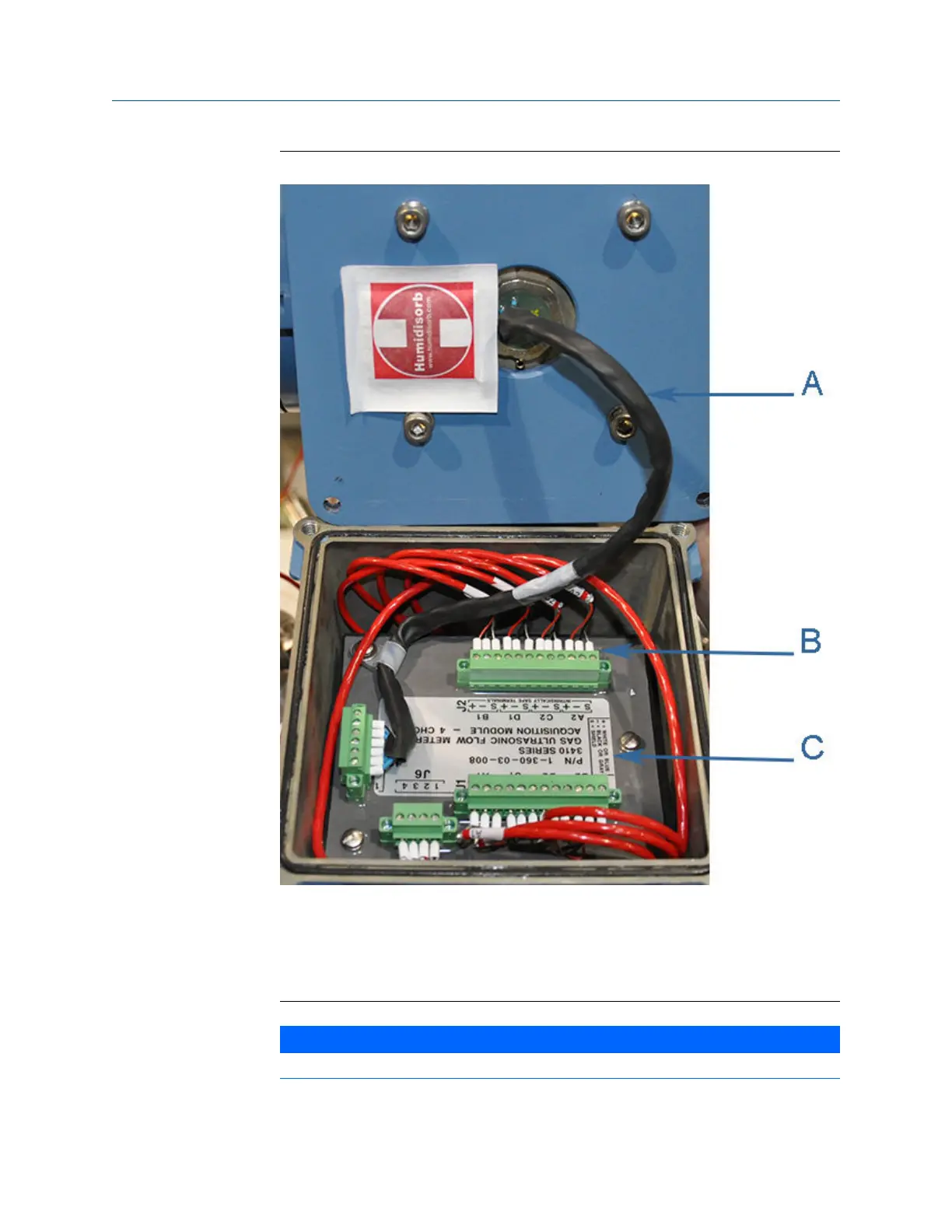

Acquisition Module cable and transducer wiringFigure 3-20:
A. Acquisition cable
B. Acquisition wiring terminal blocks
C. Acquisition Module
NOTICE
Make sure the transducer cables are labeled for the chord configuration.
Meter repairs
Maintenance and Troubleshooting manual 47
