14. Feed the security wire beneath the Transmitter Electronics Enclosure and through
the adjacent socket head screw. Twist the wire, removing all slack and seal.

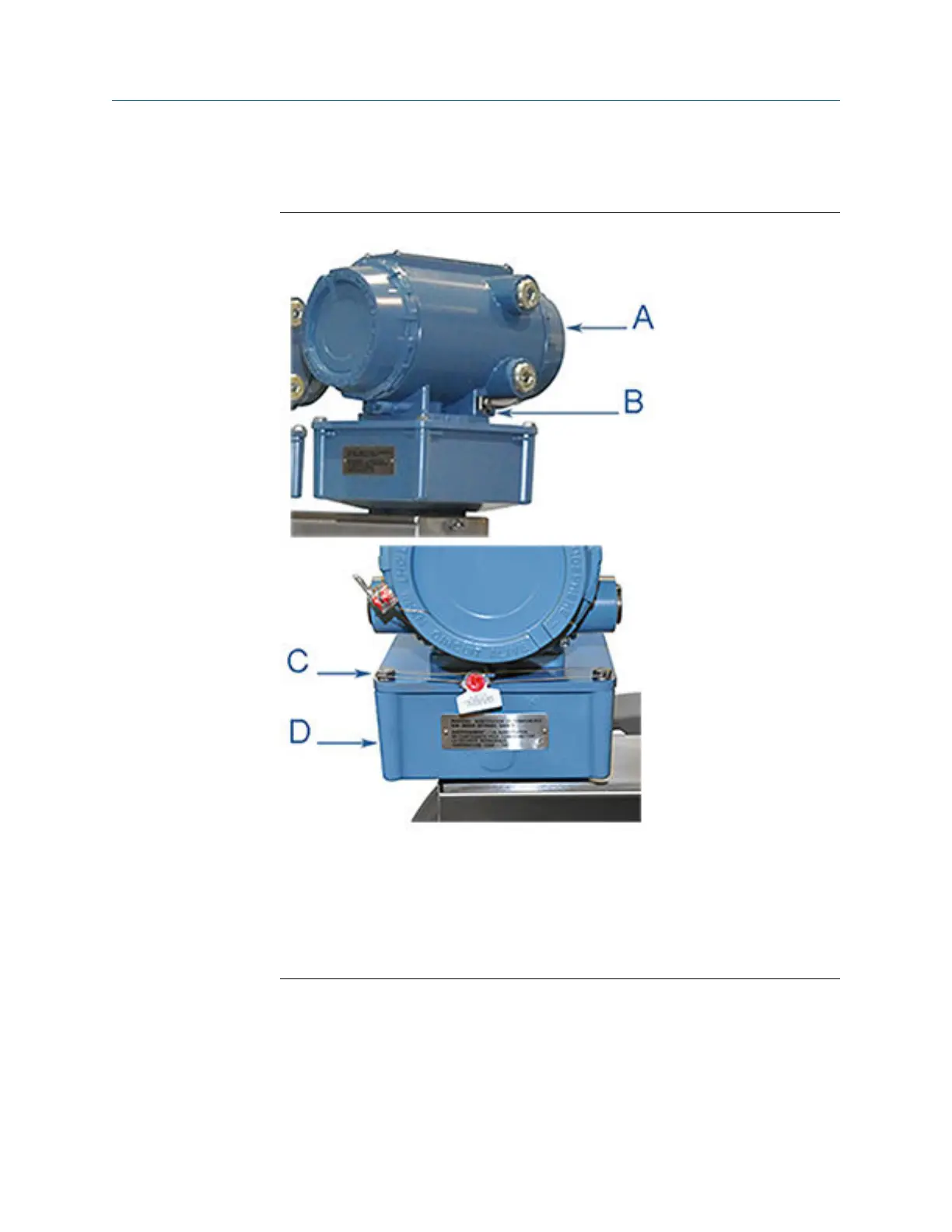

Base Enclosure security sealsFigure 3-22:
A. Transmitter Electronics Enclosure
B. Transmitter Electronics endcap security latch
C. Security wire seals (optional)
D. Base Enclosure
15. Cut wire ends to remove excess wire.
16. Apply conduit sealing compound according to manufacturer’s recommendations.
17. Apply power to the meter.
18. This completes the Acquisition Module replacement procedure.
Meter repairs
Maintenance and Troubleshooting manual 49
