Introduction
AC Power Input and PE Ground (J1)
DC Bus (J2)
Auxiliary Logic Power Input (J3)
arvitts9N
IN au
Lob,* 333V WIN
rt., 1,31.3
new 3
r
Motor Feedback (J7)
Motor Power Connector (J8)

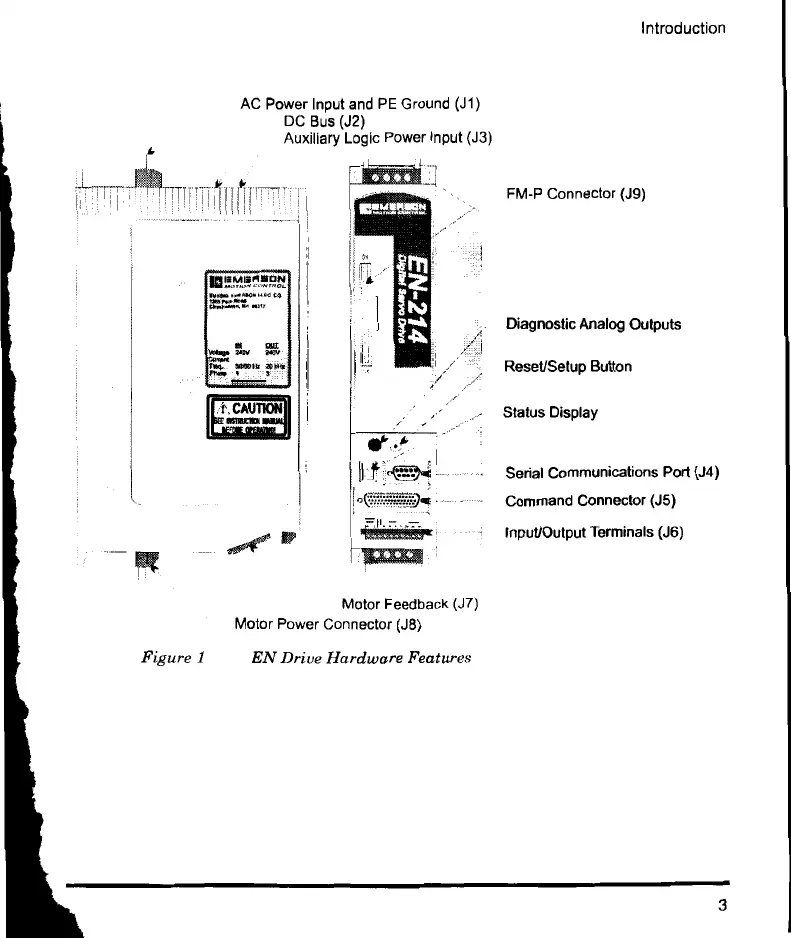

Figure 1 EN Drive Hardware Features
FM-P Connector (J9)
Diagnostic Analog Outputs
Reset/Setup Button
Status Display
Serial Communications Port (J4)
Command Connector (J5)
Input/Output Terminals (J6)
3
