Installation

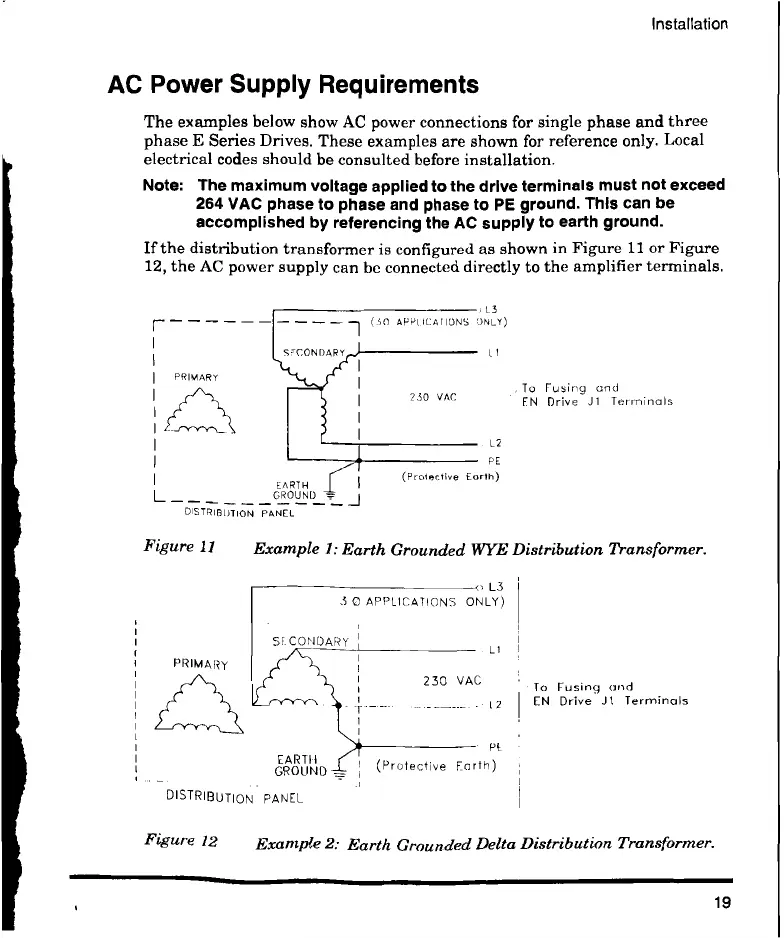

AC Power Supply Requirements
The examples below show AC power connections for single phase and three
phase E Series Drives. These examples are shown for reference only. Local
electrical codes should be consulted before installation.
Note: The maximum voltage applied to the drive terminals must not exceed
264 VAC phase to phase and phase to PE ground. This can be
accomplished by referencing the AC supply to earth ground.
If the distribution transformer is configured as shown in Figure 11 or Figure
12, the AC power supply can be connected directly to the amplifier terminals.
1
L
PRIMARY
SCONDARY
EARTH
GROUND
DISTRIMPHON PANEL
(30 APP1ICAIIONS 3
ONLY)
230 VAC
L2
PE
(Proiective Earth)
To fusing and
EN Drive J1 Terminals
Figure 11 Example 1: Earth Grounded WYE Distribution Transformer.
PRIMARY
L3
3 0 APPLICATIONS ONLY)
SECONDARY
EARTII
GROUND
. _
DISTRIBUTION PANEL
Figure 12
LI
230 VAC
To Fusing and
12 EN Drive J1 Terminals
Pk
(Protective Earth)
Example 2: Earth Grounded Delta Distribution Transformer.
19
