Emerson E Series User Manual

Installation
Overview of Cables
Emerson Motion Control's
Motion Interface Panel
Serial Cable, MI-CB7-015,
Motion Interface to
E Series Drive
'5:31
Serial Cable, DDS-XXX,
E Series Drive to Drive
Serial Cable, RS-232,
E Series Drive to PC
TIA-XXX for DB-9-Pin Connector '
TIX-XXX for DB-25-Pin Connector
Serial Cable, RS-485,
drive to screw terminals
C0485-XXX
E Series
Amplifier
Motor Feedback, CFCO-XXX
rve
Motor Feedback, CFCS-XXX
Motor Power Cable,
CMDS-XXX or CMMS-XXX

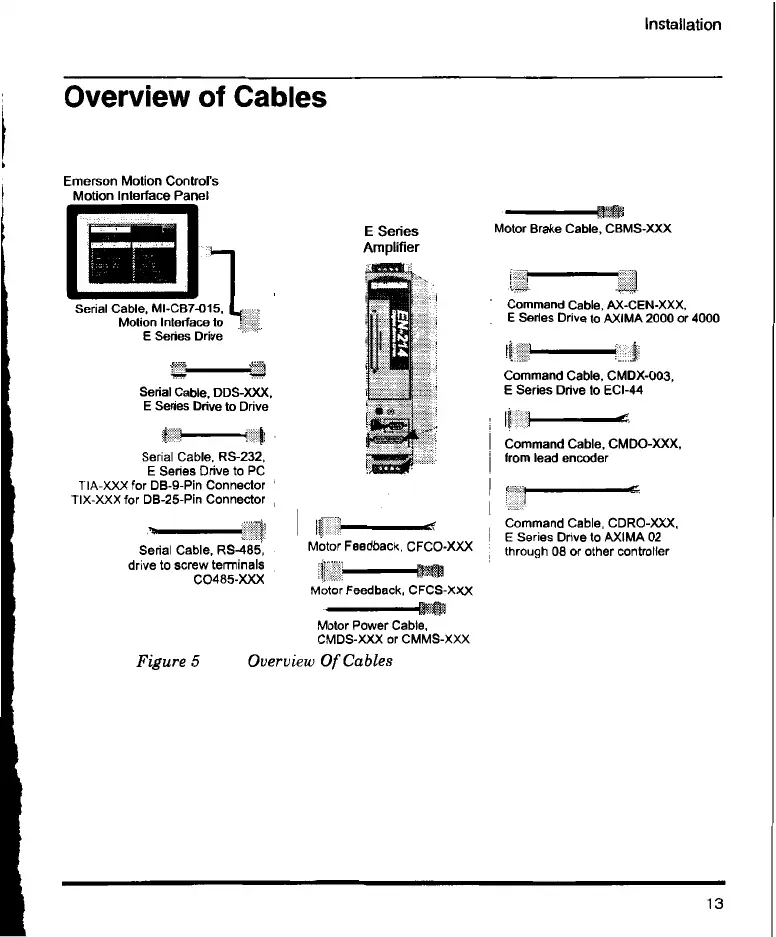

Figure 5 Overview Of Cables
Motor Brake Cable, CBMS-XXX
Command Cable, AX-CEN-XXX,
E Series Drive to AXIMA 2000 or 4000
Command Cable, CMDX-003,
E Series Drive to ECI-44
11'
Command Cable, CMDO-XXX,
from lead encoder
Command Cable, CDRO-XXX,
E Series Drive to AXIMA 02
through 08 or other controller
13
