Emerson E Series User Manual

Installation
Cable Type
Emerson Cable
Model
Shielded Cable Grommet Kit
Part #
Motor Cable, 16 Ga
CM DS
CGS-050
Motor Cable, 12 Ga
CMMS
CGS-038
Feedback Cable
CFOS
CGS-038
Flex Motor Cable, 16 Ga
CMDP
CGS-050
Flex Motor Cable, 12 Ga
CMMF
CGS-063
Flex Feedback Cable
CFEF
CGS-075
External Encoder
ENCO
CGS-038
AC Power
user supplied
user supplied
Tubular wire mesh shield.rg 2 to 3"
long, installed over the Coble shield cod
and folded over tne wide end of cord grip insert.
Cutaway view
of cord gr'p
Outside Enclosure rubber irsert.
Cord grip, installed around
*he fully intact cable jacket
Example: Crouse—Hinds brand
COE or Cog-SC type
Scaling gasket (optional),
Included with CGif—SC, type
Lubricare here
for best
compression
Inside Enclosure
Cord grip insert
metal washer.
Expose shielding on cable and
pass it through tubular shielding
section in the rubber insert.
' Cord grip body section.
(CGH or 00K type)
Female coupling
(Nol required with
CGr: typo).
Remove paint from the inside wall so
the lock rut car pone the coupling
body to the grocinded enclosure wall.

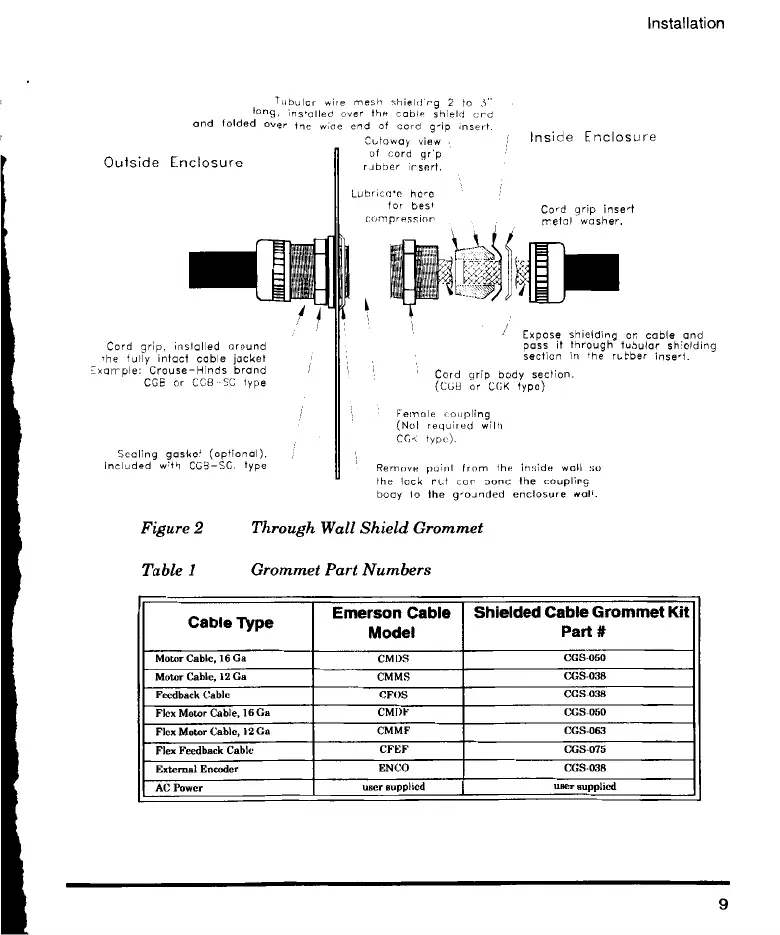

Figure 2 Through Wall Shield Grommet
Table 1 Grommet Part Numbers
9
