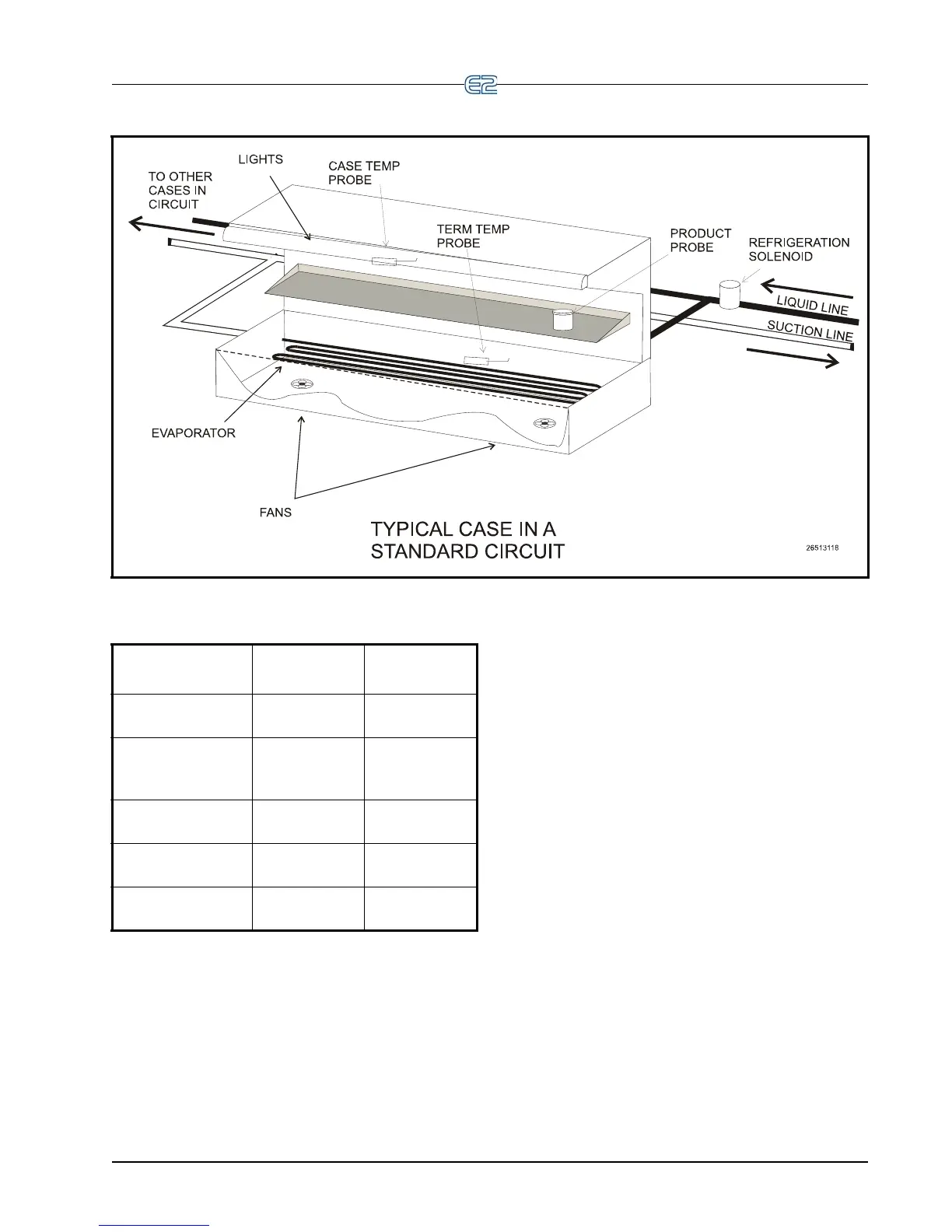

Figure 11-5 - Typical Case in a Standard Circuit
Table 11-5 - Suction Group Inputs
Input Sensor Type
Wiring
Ins
tructions
Case Temp Probe 
(up to 6)
Temperature see Table 9-1
on page 9-3
Defrost Termination
Probes (u
p to 6)
May be digital
(Klixon) or
Temperature
see Table 9-1
on page 9-3
Product Probe 
(up to 6)
Temperature see Table 9-1
on page 9-3
Clean Switch (not
pict
ured)
Digital see Table 9-1
on page 9-3
Door Switch (not
pict
ured)
Digital see Table 9-1
on page 9-3
Standard Circuits Software Overview • 11-9
