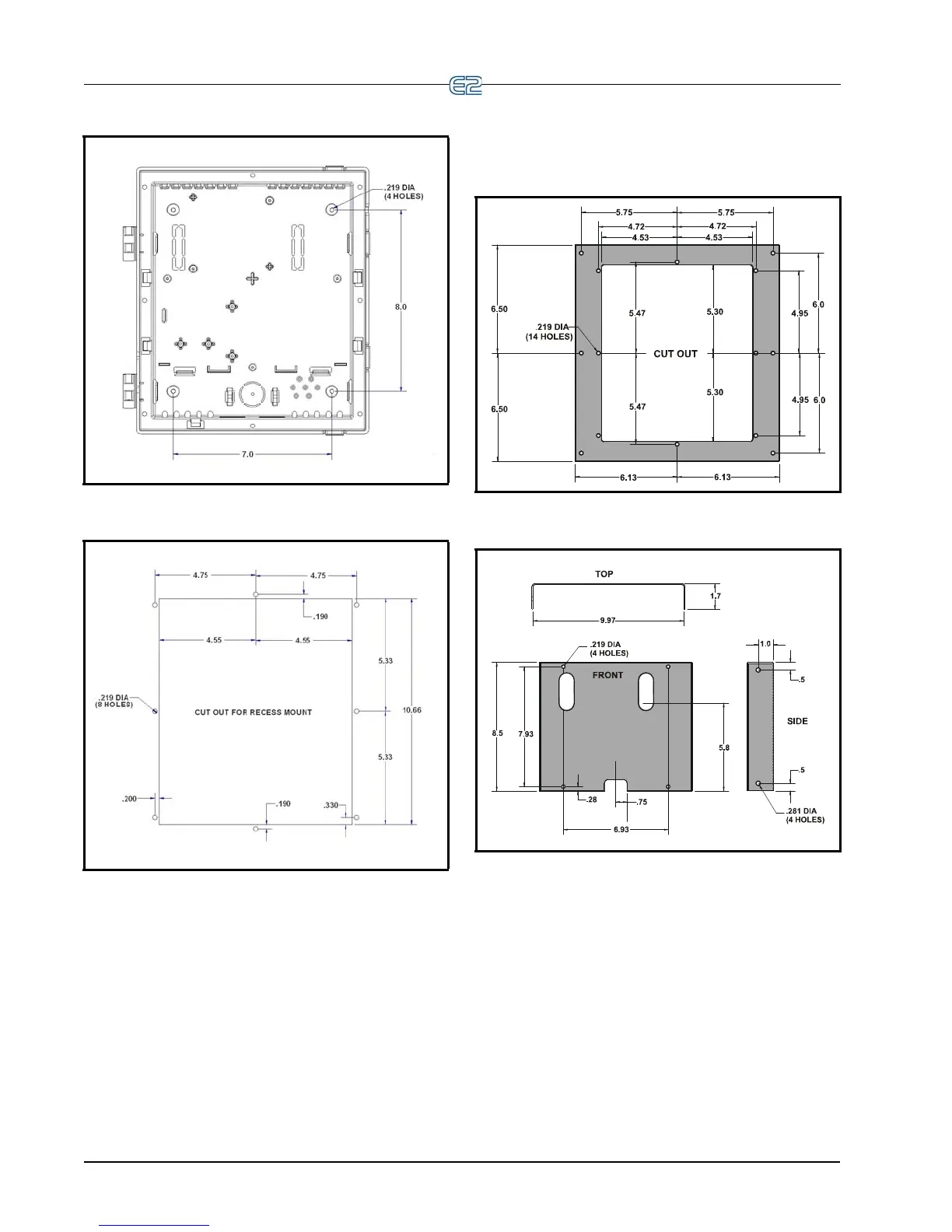

Figure 3-3 - Standard Mount (Inside Rear of Enclosure)
Figure 3-4 - E2 Recess Mount Hole Locations
3-2 • E2 RX/BX/CX I&O Manual 026-1614 Rev 4 5-JAN-2013
3.1.3 Retrofit Mounting
The retrofit mounting plate and bracket allow the E2 to
be mounted where previous generation controllers (Ein-
stein or REFLECS) were. These two options allow con-
version of the flush-mounted Einstein and the side-
mo
unted REFLECS.
Figure 3-5 shows the low-profile conversion mount
plate that allows a flush-mounted Einstein to be converted
to a low
-profile mount. The plate slides over the back of
the E2 and is attached using the four holes pictured closest
to the cut out (four screws and four nuts are included), but
the plate is equipped with a total of 14 holes for the best
possible fit.
Figure 3-5 - Conversion Plate for Flush Mount
Figure 3-6 - Conversion Bracket for REFLECS Side Mount
Figure 3-6 shows the conversion bracket that allows a
side-mounted REFLECS to be converted to a side-
m
ounted E2. The conversion bracket is attached to the
back of the E2 using the two holes at the top and bottom of
the bracket, and aligning the oval openings with the oval
cut-outs in the back of the E2 case. Once the E2 is attached
to the conversion bracket, use the two holes in either side
of the conversion bracket (depending on which side is
needed) to mount the E2 to the wall and replace the
REFLECS controller.
